Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Lines (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR072003 SHIELD - FUEL TUBES $18.62 To Order
Photo Part No Description Price (each) Stock
LR078970 BRACKET - SUPPORT $5.89 To Order
Photo Part No Description Price (each) Stock
LR072170 TUBE - FUEL SUPPLY AND VAPOUR $262.81 To Order
LR084744 TUBE - FUEL SUPPLY AND VAPOUR $224.25 To Order
LR095801 TUBE - FUEL SUPPLY AND VAPOUR $234.31 To Order
Photo Part No Description Price (each) Stock
LR075641 PIPE - FUEL $56.48 To Order
Photo Part No Description Price (each) Stock
LR075635 TUBE - FUEL SUPPLY $222.78 To Order
LR094260 TUBE - FUEL SUPPLY $226.67 To Order
LR082873 TUBE - FUEL SUPPLY $175.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR005291 BRACKET - FUEL LINES $44.25 To Order
Photo Part No Description Price (each) Stock
LR005634 SHIELD - FUEL TUBES $6.16 To Order
Photo Part No Description Price (each) Stock
LR003826 SHIELD - FUEL TUBES $7.74 To Order
View All

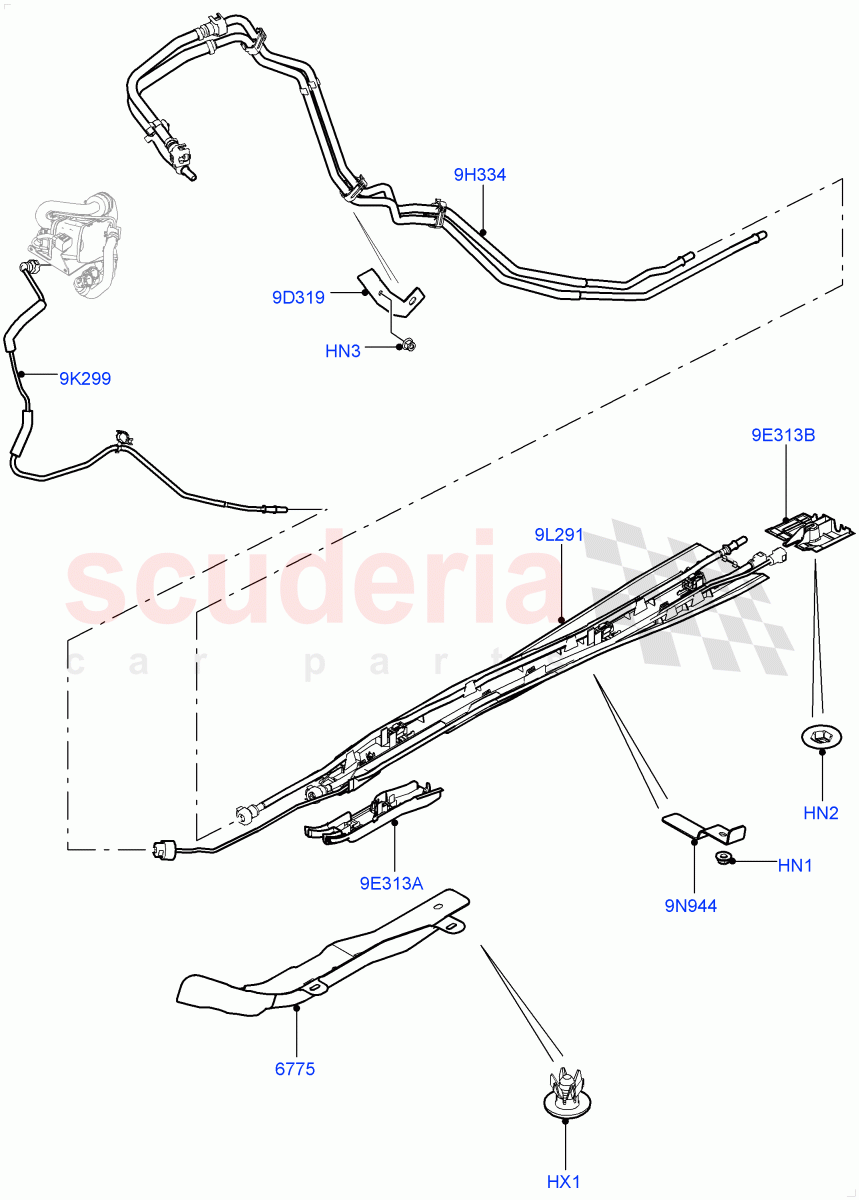

Fuel Lines (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6 / From: GT000001
IN STOCK 		$1.02 1
HN2 LR003643
NUT - SPECIAL
M5 / From: GT000001 		$0.61 1
HN3 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: GT000001
IN STOCK 		$0.68 1
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5 / From: GT000001
IN STOCK 		$1.46 2
9D319 LR078970
BRACKET - SUPPORT
From: GT000001 		$5.89 1
9E313A LR005634
SHIELD - FUEL TUBES
From: GT000001 		$6.16 1
9E313B LR003826
SHIELD - FUEL TUBES
From: GT000001 		$7.74 1
9H334 LR072170
TUBE - FUEL SUPPLY AND VAPOUR
From: GT000001 / To: GT000300 		$262.81 1
9H334 LR084744
TUBE - FUEL SUPPLY AND VAPOUR
From: GT000301 / To: GT000600 		$224.25 1
9H334 LR095801
TUBE - FUEL SUPPLY AND VAPOUR
From: GT000601 		$234.31 1
9K299 LR075641
PIPE - FUEL
With Fuel Fired Heater / From: GT000001 		$56.48 1
9L291 LR075635
TUBE - FUEL SUPPLY
With Fresh Air Heater / Tube Assembly, Under Floor / From: GT000001 / To: GT000300 		$222.78 1
9L291 LR094260
TUBE - FUEL SUPPLY
With Fresh Air Heater / Tube Assembly, Under Floor / From: GT000301 		$226.67 1
9L291 LR082873
TUBE - FUEL SUPPLY
Fuel Heater W/Pk Heat With Remote / Tube Assembly, Under Floor / From: GT000001 / To: GT000300 		$175.08 1
9L291 LR094173
TUBE - FUEL SUPPLY
With Fuel Fired Heater / Tube Assembly, Under Floor / From: GT000301 		$164.15 1
9N944 LR005291
BRACKET - FUEL LINES
Support Bracket / From: GT000001 		$44.25 1
6775 LR072003
SHIELD - FUEL TUBES
From: GT000001 		$18.62 1
