Rear Springs And Shock Absorbers (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Springs And Shock Absorbers (Changsu (China)) ((V) FROMFG000001)

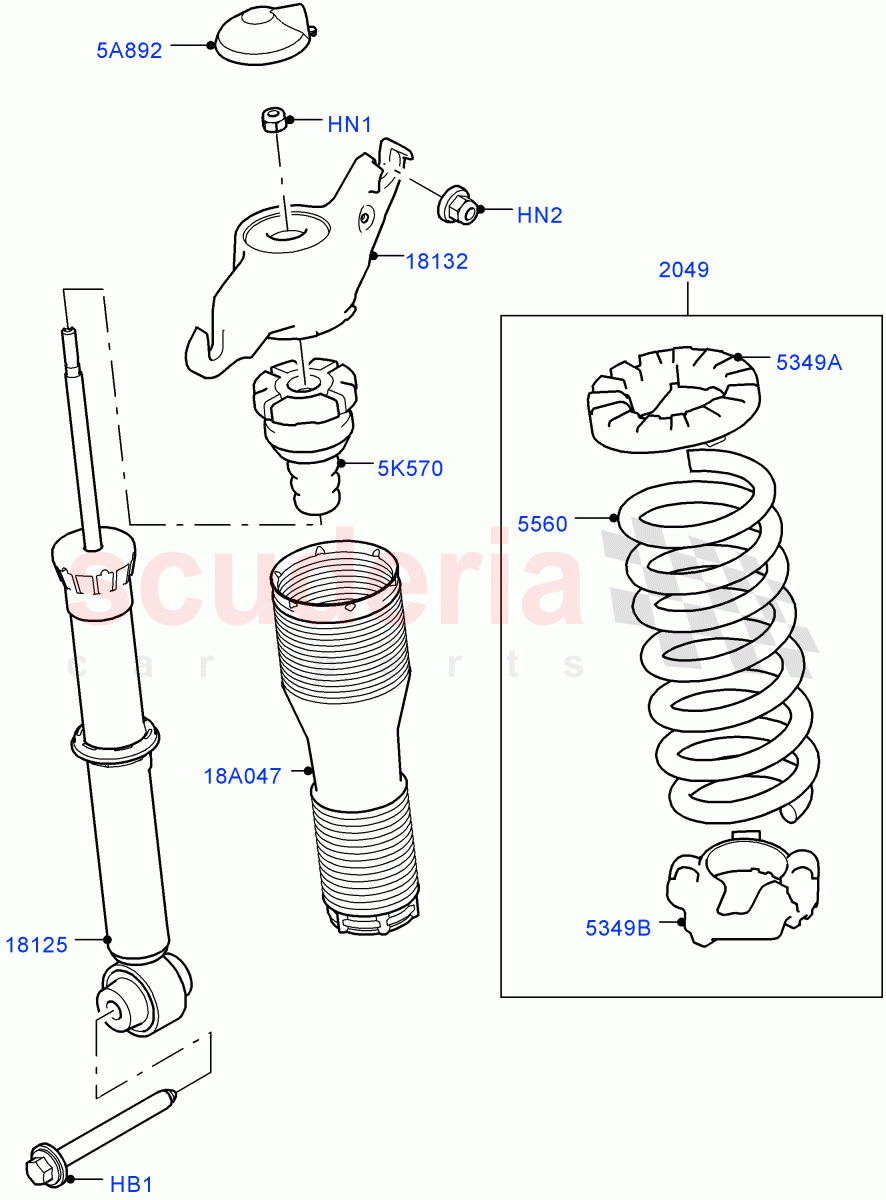

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	FLANGED BOLT M14 X 125	$10.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061358	NUT	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033244	NUT	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121286	KIT - SUSPENSION SPRING AND PAD	$154.84	To Order
	LR121285	KIT - SUSPENSION SPRING AND PAD	$154.43	To Order
	LR121281	KIT - SUSPENSION SPRING AND PAD	$154.01	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR079905	SPRING - COIL	$161.84	To Order
	LR079906	SPRING - COIL	$164.94	To Order
	LR079908	SPRING - COIL	$164.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061355	SHOCK ABSORBER - REAR	$342.12	To Order
	LR098141	SHOCK ABSORBER - REAR	$364.02	To Order
	LR138852	SHOCK ABSORBER	$364.02	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061361	BRACKET - SHOCK ABSORBER	$308.12	To Order
	LR061359	BRACKET - SHOCK ABSORBER	$308.12	To Order
	LR078648	BRACKET - SHOCK ABSORBER	$75.70	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061478	PAD - SUSPENSION SPRING	$23.72	To Order
	LR068309	PAD - SUSPENSION SPRING	$46.54	To Order
	LR115139	INSULATOR - SHOCK ABSORBER	$24.48	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061479	PAD - ANTI-SQUEAK	$29.53	To Order
	LR115137	PAD - ANTI-SQUEAK	$26.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079582	CAP - SHOCK ABSORBER SECURING	$7.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061353	BUMPER - SHOCK ABSORBER	$48.63	To Order
	LR134578	BUMPER - SHOCK ABSORBER	$21.51	To Order
	LR134576	BUMPER - SHOCK ABSORBER	$21.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061354	BOOT - SHOCK ABSORBER	$39.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR038196	FLANGED BOLT M14 X 125 IN STOCK	LR038196 FLANGED BOLT M14 X 125 HEX Flange, Hexagonal Head, M14 X 125 / From: FG000001 IN STOCK	$10.74	2
HN1	LR061358	NUT	LR061358 NUT Less Adaptive Damping / M10 x 1.0 / From: FG000001	$1.94	2
HN2	LR033244	NUT	LR033244 NUT Hexagonal Head, M12 / From: FG000001	$2.97	4
5A892	LR079582	CAP - SHOCK ABSORBER SECURING	LR079582 CAP - SHOCK ABSORBER SECURING From: FG000001	$7.23	2
5K570	LR061353	BUMPER - SHOCK ABSORBER	LR061353 BUMPER - SHOCK ABSORBER From: FG000001 / To: KG446856	$48.63	2
5K570	LR134578	BUMPER - SHOCK ABSORBER	LR134578 BUMPER - SHOCK ABSORBER Active Damping / From: KG446857	$21.51	2
5K570	LR134576	BUMPER - SHOCK ABSORBER	LR134576 BUMPER - SHOCK ABSORBER Less Adaptive Damping / From: KG446857	$21.51	2
18A047	LR061354	BOOT - SHOCK ABSORBER	LR061354 BOOT - SHOCK ABSORBER From: FG000001	$39.57	2
2049	LR121286	KIT - SUSPENSION SPRING AND PAD	LR121286 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-O / Blue / Orange / Red / From: KG446857	$154.84	2
2049	LR121285	KIT - SUSPENSION SPRING AND PAD	LR121285 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-N / Blue / Yellow / Blue / From: KG446857	$154.43	2
2049	LR121281	KIT - SUSPENSION SPRING AND PAD	LR121281 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-L / Blue / Yellow / Pink / From: KG446857	$154.01	2
2049	LR121280	KIT - SUSPENSION SPRING AND PAD	LR121280 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-K / Blue / Yellow / Brown / From: KG446857	$136.04	2
2049	LR121279	KIT - SUSPENSION SPRING AND PAD	LR121279 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-J / Blue / Yellow / Green / From: KG446857	$153.34	2
2049	LR121277	KIT - SUSPENSION SPRING AND PAD	LR121277 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-I / Blue / Yellow / Red / From: KG446857	$152.99	2
2049	LR114454	KIT - SUSPENSION SPRING AND PAD	LR114454 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-H / Blue / Yellow / Orange / From: KG446857	$162.38	2
5349A	LR061478	PAD - SUSPENSION SPRING	LR061478 PAD - SUSPENSION SPRING Thin, Upper / From: FG000001 / To: KG446856	$23.72	2
5349A	LR068309	PAD - SUSPENSION SPRING	LR068309 PAD - SUSPENSION SPRING Thick, Upper / From: FG000001 / To: KG446856	$46.54	2
5349A	LR115139	INSULATOR - SHOCK ABSORBER	LR115139 INSULATOR - SHOCK ABSORBER Thick, Upper / From: KG446857	$24.48	2
5349A	LR115138	INSULATOR - SHOCK ABSORBER	LR115138 INSULATOR - SHOCK ABSORBER Thin, Upper / From: KG446857	$24.48	2
5349B	LR061479	PAD - ANTI-SQUEAK	LR061479 PAD - ANTI-SQUEAK Lower / From: FG000001 / To: KG446856	$29.53	2
5349B	LR115137	PAD - ANTI-SQUEAK	LR115137 PAD - ANTI-SQUEAK Lower / From: KG446857	$26.66	2
5560	LR079905	SPRING - COIL	LR079905 SPRING - COIL Rear Spring Load Class-E / From: FG000001	$161.84	2
5560	LR079906	SPRING - COIL	LR079906 SPRING - COIL Rear Spring Load Class-F / From: FG000001	$164.94	2
5560	LR079908	SPRING - COIL	LR079908 SPRING - COIL Rear Spring Load Class-H / From: FG000001	$164.94	2
18125	LR061355	SHOCK ABSORBER - REAR	LR061355 SHOCK ABSORBER - REAR Less Adaptive Damping / RH/LH / From: FG000001 / To: HG379387	$342.12	2
18125	LR098141	SHOCK ABSORBER - REAR	LR098141 SHOCK ABSORBER - REAR Less Adaptive Damping / RH/LH / From: HG379388	$364.02	2
18125	LR138852	SHOCK ABSORBER	LR138852 SHOCK ABSORBER Less Adaptive Damping, Less Electric Engine Battery / Less Magnetic Damping System, RH/LH / From: KG446857	$364.02	2
18125	LR138851	SHOCK ABSORBER	LR138851 SHOCK ABSORBER Active Damping / RH / From: KG446857	$663.11	1
18125	LR138849	SHOCK ABSORBER	LR138849 SHOCK ABSORBER Active Damping / LH / From: KG446857	$745.95	1
18132	LR061361	BRACKET - SHOCK ABSORBER	LR061361 BRACKET - SHOCK ABSORBER Less Adaptive Damping / RH, Shock Absorber Mounting, Top / From: FG000001 / To: GG310217	$308.12	1
18132	LR061359	BRACKET - SHOCK ABSORBER	LR061359 BRACKET - SHOCK ABSORBER Less Adaptive Damping / LH, Shock Absorber Mounting, Top / From: FG000001 / To: GG310217	$308.12	1
18132	LR078648	BRACKET - SHOCK ABSORBER	LR078648 BRACKET - SHOCK ABSORBER Less Adaptive Damping / RH, Shock Absorber Mounting, Top / From: GG310218 / To: KG446856	$75.70	1
18132	LR078649	BRACKET - SHOCK ABSORBER	LR078649 BRACKET - SHOCK ABSORBER Less Adaptive Damping / LH, Shock Absorber Mounting, Top / From: GG310218 / To: KG446856	$72.75	1
18132	LR126629	BRACKET - SHOCK ABSORBER	LR126629 BRACKET - SHOCK ABSORBER Less Adaptive Damping / LH, Less Magnetic Damping System, Shock Absorber Mounting, Top / From: KG446857	$61.62	1
18132	LR128644	BRACKET - SHOCK ABSORBER	LR128644 BRACKET - SHOCK ABSORBER Less Adaptive Damping / RH, Less Magnetic Damping System, Shock Absorber Mounting, Top / From: KG446857	$61.62	1
