Name: Front Axle Case (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001)
Rating: 4.7 (1 reviews)

Front Axle Case (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Front Axle Case (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001)

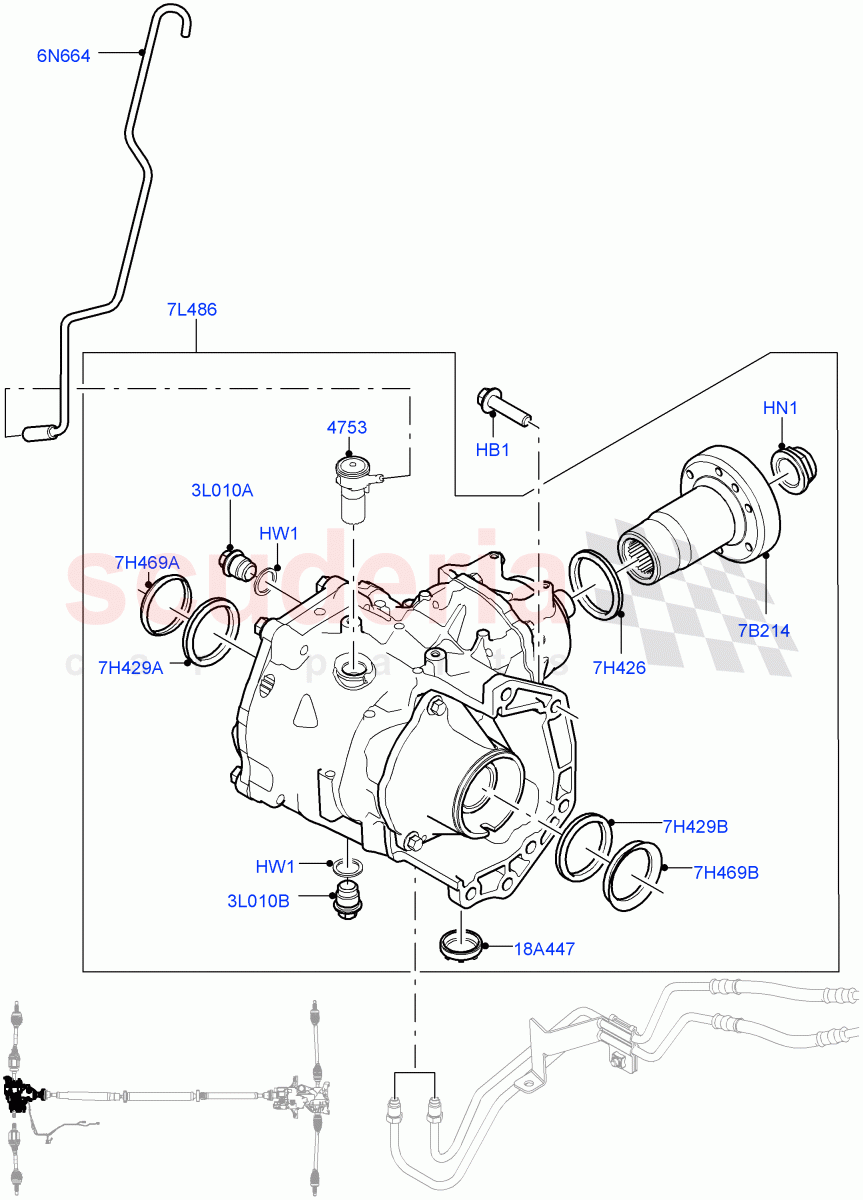

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001192	BOLT	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051077	NUT	$13.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001949	WASHER - DRAIN PLUG	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR051083	PIPE - CONNECTING	$11.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072224	TUBE	$45.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051289	FLANGE - DIFFERENTIAL	$278.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051288	SEAL - POWER TRANSFER UNIT	$22.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051076	POWER TRANSFER UNIT	$2,835.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084600	PLUG - BLANKING	$36.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076677	PLUG - FILLER	$11.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051294	PLUG - DRAIN	$12.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003153	RING - SEALING	$16.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051397	SEAL - POWER TRANSFER UNIT	$18.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001950	RING - SEALING	$17.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003155	RING - SEALING	$32.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR001192	BOLT	LR001192 BOLT Hexagonal Head, M10 x 40MM, PTU To Gearbox / From: JT000001	$0.82	6
HN1	LR051077	NUT	LR051077 NUT PTU Flange / From: JT000001	$13.02	1
HW1	LR001949	WASHER - DRAIN PLUG IN STOCK	LR001949 WASHER - DRAIN PLUG 18 X 24 X 1.5, Sealing Washer / From: JT000001 IN STOCK	$3.62	2
3L010A	LR076677	PLUG - FILLER	LR076677 PLUG - FILLER Filler Plug / From: JT000001	$11.57	1
3L010B	LR051294	PLUG - DRAIN	LR051294 PLUG - DRAIN Drain Plug / From: JT000001	$12.00	1
6N664	LR072224	TUBE	LR072224 TUBE Breather Pipe / From: JT000001	$45.63	1
7B214	LR051289	FLANGE - DIFFERENTIAL	LR051289 FLANGE - DIFFERENTIAL PTU Flange / From: JT000001	$278.02	1
7H426	LR051288	SEAL - POWER TRANSFER UNIT	LR051288 SEAL - POWER TRANSFER UNIT For Differential Flange / From: JT000001	$22.27	1
7H429A	LR003153	RING - SEALING	LR003153 RING - SEALING RH, Driveshaft, Inner / From: JT000001	$16.99	1
7H429B	LR051397	SEAL - POWER TRANSFER UNIT	LR051397 SEAL - POWER TRANSFER UNIT LH, Driveshaft, Inner / From: JT000001	$18.25	1
7H469A	LR001950	RING - SEALING	LR001950 RING - SEALING RH, Driveshaft, Outer / From: JT000001	$17.35	1
7H469B	LR003155	RING - SEALING	LR003155 RING - SEALING LH, Driveshaft, Outer / From: JT000001	$32.73	1
7L486	LR051076	POWER TRANSFER UNIT	LR051076 POWER TRANSFER UNIT From: JT000001	$2,835.10	1
18A447	LR084600	PLUG - BLANKING	LR084600 PLUG - BLANKING 20MM / From: JT000001	$36.28	1
4753	LR051083	PIPE - CONNECTING	LR051083 PIPE - CONNECTING Breather Pipe, Connection / From: JT000001	$11.25	1

Front Axle Case (Itatiaia (Brazil), Dynamic Driveline) ((V) Fromjt000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Front Axle Case (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001)
