Name: Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
Rating: 5.0 (1 reviews)

Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

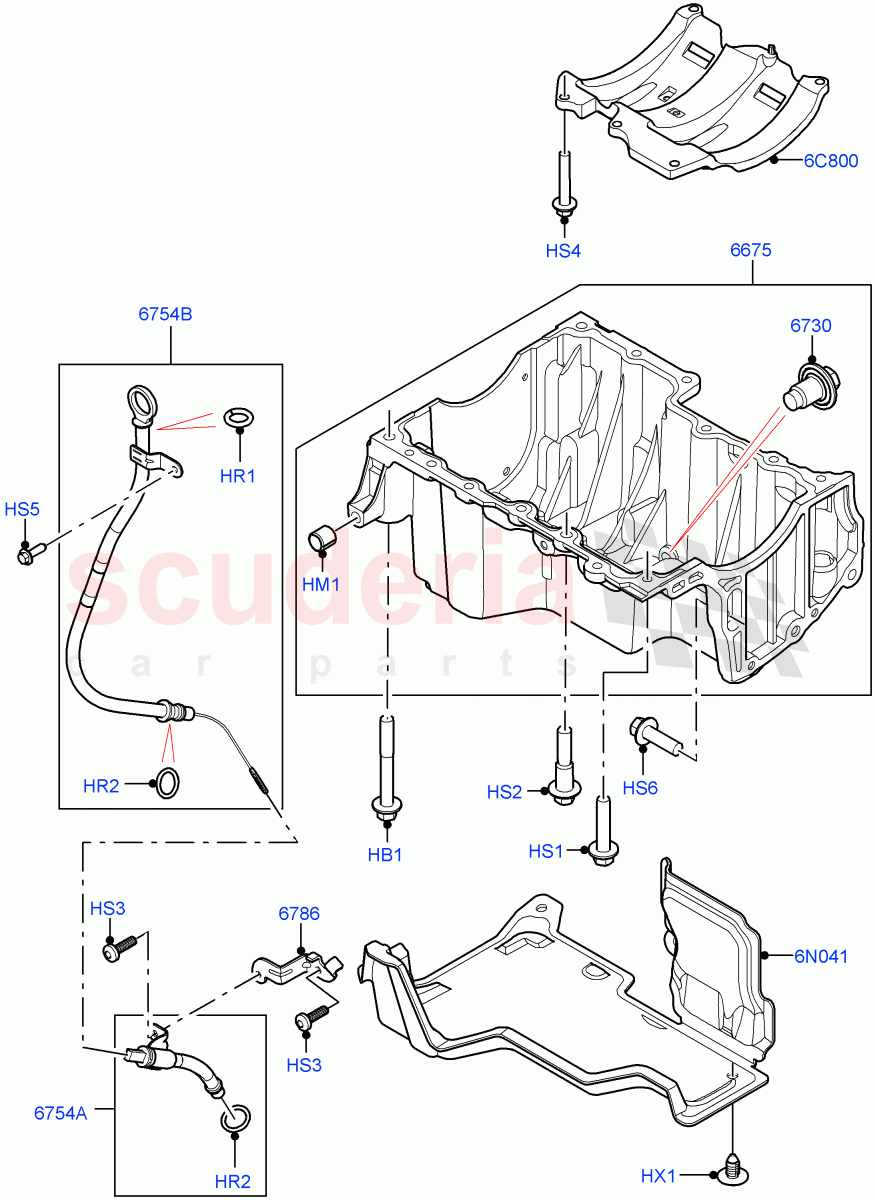

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR126056	BOLT	$3.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126156	DOWEL - PIN	$5.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139074	O-RING	$5.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139073	O-RING	$5.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126160	PIN - FASTENING	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125377	PAN - ENGINE OIL	$287.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126041	BRACKET - OIL TUBE	$6.53	To Order
	LR135848	BRACKET - OIL TUBE	$9.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125376	TUBE - OIL EXTRACTION	$49.75	To Order
	LR135849	TUBE - OIL LEVEL INDICATOR	$40.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135841	TUBE - OIL LEVEL INDICATOR	$49.64	To Order
	LR144959	TUBE - OIL LEVEL INDICATOR	$39.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126043	TRAY - OIL	$367.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125444	SHIELD - ENGINE PROTECTING	$138.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR126056	BOLT	LR126056 BOLT M10 X 60MM, Oil Pan / From: KG446856	$3.79	1
HM1	LR126156	DOWEL - PIN	LR126156 DOWEL - PIN Pin - Dowell / From: KG446856	$5.02	1
HR1	LR139074	O-RING	LR139074 O-RING Oil Level Indicator / From: KG446857	$5.34	1
HR2	LR139073	O-RING	LR139073 O-RING Oil Tube / From: KG446857	$5.34	2
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm, Oil Pan / From: KG446856	$2.34	10
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm, Oil Pan / From: KG446856	$3.43	2
HS3	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Tube Bracket / From: KG446856	$1.58	2
HS4	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray / From: KG446857	$2.29	5
HS5	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: KG446857	$2.30	1
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover / From: KG446857	$2.05	1
HX1	LR126160	PIN - FASTENING IN STOCK	LR126160 PIN - FASTENING 6.5 x 6, Insulator / From: KG446857 IN STOCK	$0.59	4
6C800	LR126043	TRAY - OIL	LR126043 TRAY - OIL From: KG446856	$367.01	1
6N041	LR125444	SHIELD - ENGINE PROTECTING	LR125444 SHIELD - ENGINE PROTECTING Oil Pan / From: KG446856	$138.16	1
6675	LR125377	PAN - ENGINE OIL	LR125377 PAN - ENGINE OIL From: KG446856	$287.62	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Includes Seal, M14 X 21 / From: KG446856	$8.33	1
6754A	LR125376	TUBE - OIL EXTRACTION	LR125376 TUBE - OIL EXTRACTION Lower / From: KG446857 / To: KG999999	$49.75	1
6754A	LR135849	TUBE - OIL LEVEL INDICATOR	LR135849 TUBE - OIL LEVEL INDICATOR Lower / From: LG000001	$40.73	1
6754B	LR135841	TUBE - OIL LEVEL INDICATOR	LR135841 TUBE - OIL LEVEL INDICATOR Upper / From: KG446856 / To: LG124184	$49.64	1
6754B	LR144959	TUBE - OIL LEVEL INDICATOR	LR144959 TUBE - OIL LEVEL INDICATOR Upper / From: LG124185	$39.32	1
6786	LR126041	BRACKET - OIL TUBE	LR126041 BRACKET - OIL TUBE Oil Tube / From: KG446856 / To: KG999999	$6.53	1
6786	LR135848	BRACKET - OIL TUBE	LR135848 BRACKET - OIL TUBE Oil Tube / From: LG000001	$9.91	1

Oil Pan/Oil Level Indicator (1.5L Aj20P3 Petrol High, Changsu (China), 1.5L Aj20P3 Petrol High Phev)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Oil Pan/Oil Level Indicator (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
