Name: Oil Cooler And Filter (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 4.8 (1 reviews)

View All

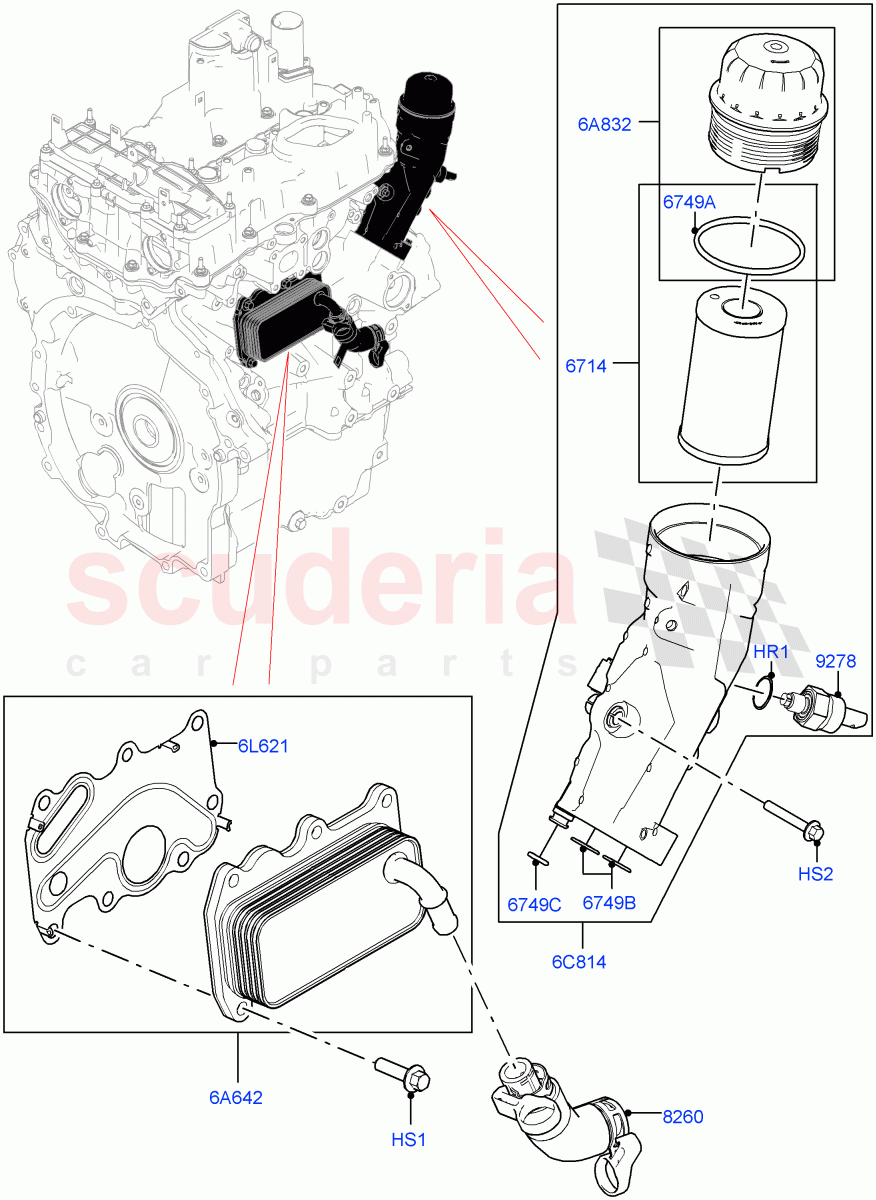

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR170968	O-RING	$4.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073673	SCREW	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073669	KIT - ELEMENT & GASKET - OIL FILTER	$24.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR133898	HOSE - OIL COOLER	$65.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135718	SWITCH - OIL PRESSURE	$60.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073868	O-RING	$4.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073869	SEAL	$4.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073870	SEAL	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125378	OIL COOLER	$263.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073670	COVER - OIL FILTER	$69.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097159	OIL FILTER - ASSEMBLY	$232.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125375	GASKET	$42.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR170968	O-RING IN STOCK	LR170968 O-RING Sensor - Oil Pressure / From: LH000001 IN STOCK	$4.55	1
HS1	LR073736	SCREW	LR073736 SCREW M8 X 30MM, Oil Cooler / From: LH000001	$1.70	7
HS2	LR073673	SCREW	LR073673 SCREW M6 X 40MM, Oil Filter Housing / From: LH000001	$2.82	3
6A642	LR125378	OIL COOLER	LR125378 OIL COOLER From: LH000001	$263.30	1
6A832	LR073670	COVER - OIL FILTER	LR073670 COVER - OIL FILTER Element And Seal / From: LH000001	$69.89	1
6C814	LR097159	OIL FILTER - ASSEMBLY	LR097159 OIL FILTER - ASSEMBLY From: LH000001	$232.39	1
6L621	LR125375	GASKET	LR125375 GASKET Oil Cooler / From: LH000001	$42.07	1
6714	LR073669	KIT - ELEMENT & GASKET - OIL FILTER IN STOCK	LR073669 KIT - ELEMENT & GASKET - OIL FILTER Element And Seal / From: LH000001 IN STOCK	$24.03	1
6749A	LR073868	O-RING	LR073868 O-RING Cover / From: LH000001	$4.32	1
6749B	LR073869	SEAL	LR073869 SEAL Oil Filter Housing / From: LH000001	$4.06	2
6749C	LR073870	SEAL	LR073870 SEAL Drain / From: LH000001	$3.91	1
8260	LR133898	HOSE - OIL COOLER	LR133898 HOSE - OIL COOLER Cooler / From: LH000001	$65.02	1
9278	LR135718	SWITCH - OIL PRESSURE	LR135718 SWITCH - OIL PRESSURE From: LH000001	$60.99	1

Oil Cooler And Filter (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), 1.5L Aj20P3 Petrol High) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]
