Name: Front Seat Base ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

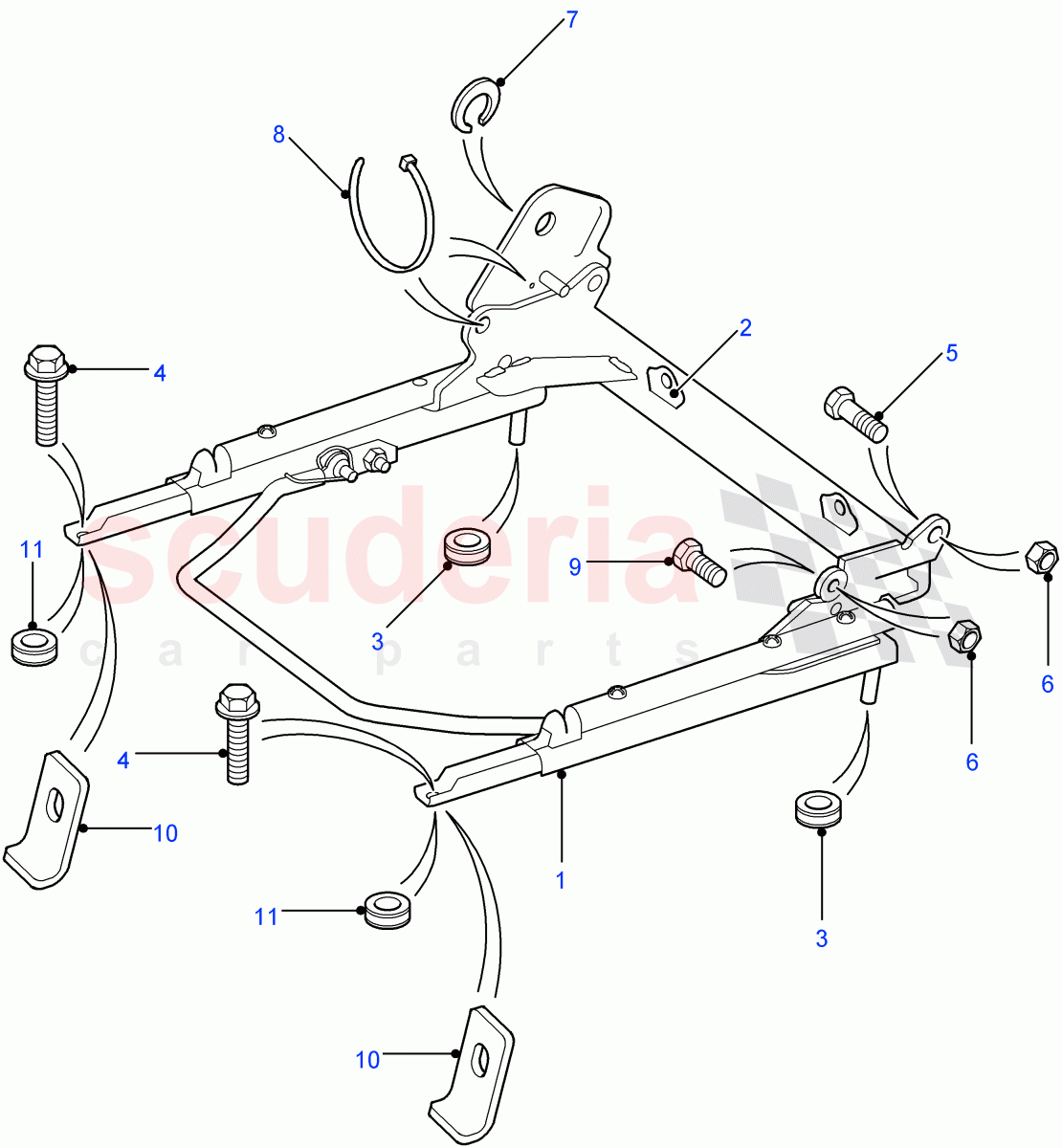

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	MXC5212	BRACKET - SEAT PIVOT	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	HYF500090	WASHER	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108405	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	SH108251L	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	NY108041	Nut - Hex.	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	CR120205	CIRCLIP	$7.76	To Order

Photo	Part No	Description	Price (each)	Stock
	NLA	Joint - CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SH108151L	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU710120	BRACKET - CHILD SEAT MOUNTING	$43.80	To Order

Photo	Part No	Description	Price (each)	Stock
	HYF500090	WASHER	$0.43	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	HHD500020	FRAME - SEAT	HHD500020 FRAME - SEAT RH / To: CA999999	$323.22	1
1	HHD500030	FRAME - SEAT	HHD500030 FRAME - SEAT LH / To: CA999999	$386.38	1
1	LR045271	FRAME - SEAT	LR045271 FRAME - SEAT RH / From: DA000001	$918.51	1
1	LR045272	FRAME - SEAT	LR045272 FRAME - SEAT LH / From: DA000001	$918.51	1
2	MXC5212	BRACKET - SEAT PIVOT	MXC5212 BRACKET - SEAT PIVOT	$12.75	2
3	HYF500090	WASHER	HYF500090 WASHER M8	$0.43	2
4	FS108405	SCREW	FS108405 SCREW M8 x 40	$1.21	4
5	SH108251L	SCREW	SH108251L SCREW M8 x 25	$0.67	1
6	NY108041	Nut - Hex.	NY108041 Nut - Hex. M8	$0.44	2
7	CR120205	CIRCLIP	CR120205 CIRCLIP	$7.76	1
8	NLA	Joint - CV	NLA Joint - CV	-	2	Enquire
9	SH108151L	SCREW	SH108151L SCREW M8 X 15MM	$1.21	1
10	ADU710120	BRACKET - CHILD SEAT MOUNTING	ADU710120 BRACKET - CHILD SEAT MOUNTING From: 7A751228	$43.80	2
11	HYF500090	WASHER	HYF500090 WASHER M8 / To: 7A751227	$0.43	2

Front Seat Base ((V) From7A000001)

Land Rover Defender (2007-2016)
