Name: Anchorage - Rear Seats
Rating: 5.0 (1 reviews)

View All

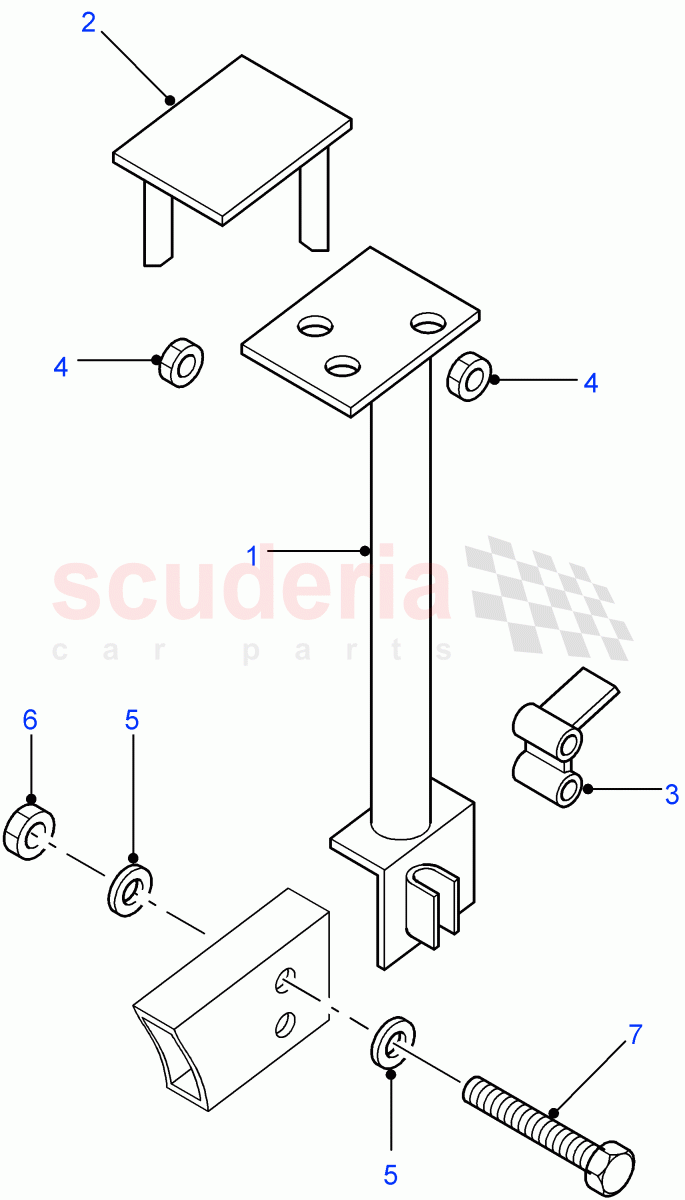

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	KVX000020	SPACER	$69.27	To Order

Photo	Part No	Description	Price (each)	Stock
	BYH500060	NUT - FLANGED	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044352	WASHER	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501140	BOLT - HEX.HEAD	$3.99	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	EIO500060	TUBE - CONNECTING	EIO500060 TUBE - CONNECTING RH	$289.24	1
1	EIO500070	TUBE - CONNECTING	EIO500070 TUBE - CONNECTING LH	$289.24	1
2	AFB710200	STUD PLATE	AFB710200 STUD PLATE RH / To: DA432498	$15.26	1
2	AFB710210	STUD PLATE	AFB710210 STUD PLATE LH / To: DA432498	$15.26	1
2	LR048396	STUD PLATE	LR048396 STUD PLATE RH / From: DA432499	$116.42	1
2	LR048397	STUD PLATE	LR048397 STUD PLATE LH / From: DA432499	$75.40	1
3	KVX000020	SPACER	KVX000020 SPACER	$69.27	2
4	BYH500060	NUT - FLANGED	BYH500060 NUT - FLANGED	$0.79	4
5	LR044352	WASHER	LR044352 WASHER	$1.37	8
6	FY110046	NUT - HEX.	FY110046 NUT - HEX.	$2.79	4
7	RYP501140	BOLT - HEX.HEAD	RYP501140 BOLT - HEX.HEAD M10 x 110, Torx Drive	$3.99	4

Anchorage - Rear Seats

Land Rover Defender (2007-2016)
