Name: Duct Assembly ((V) FROM7A000001)
Rating: 4.0 (1 reviews)

View All

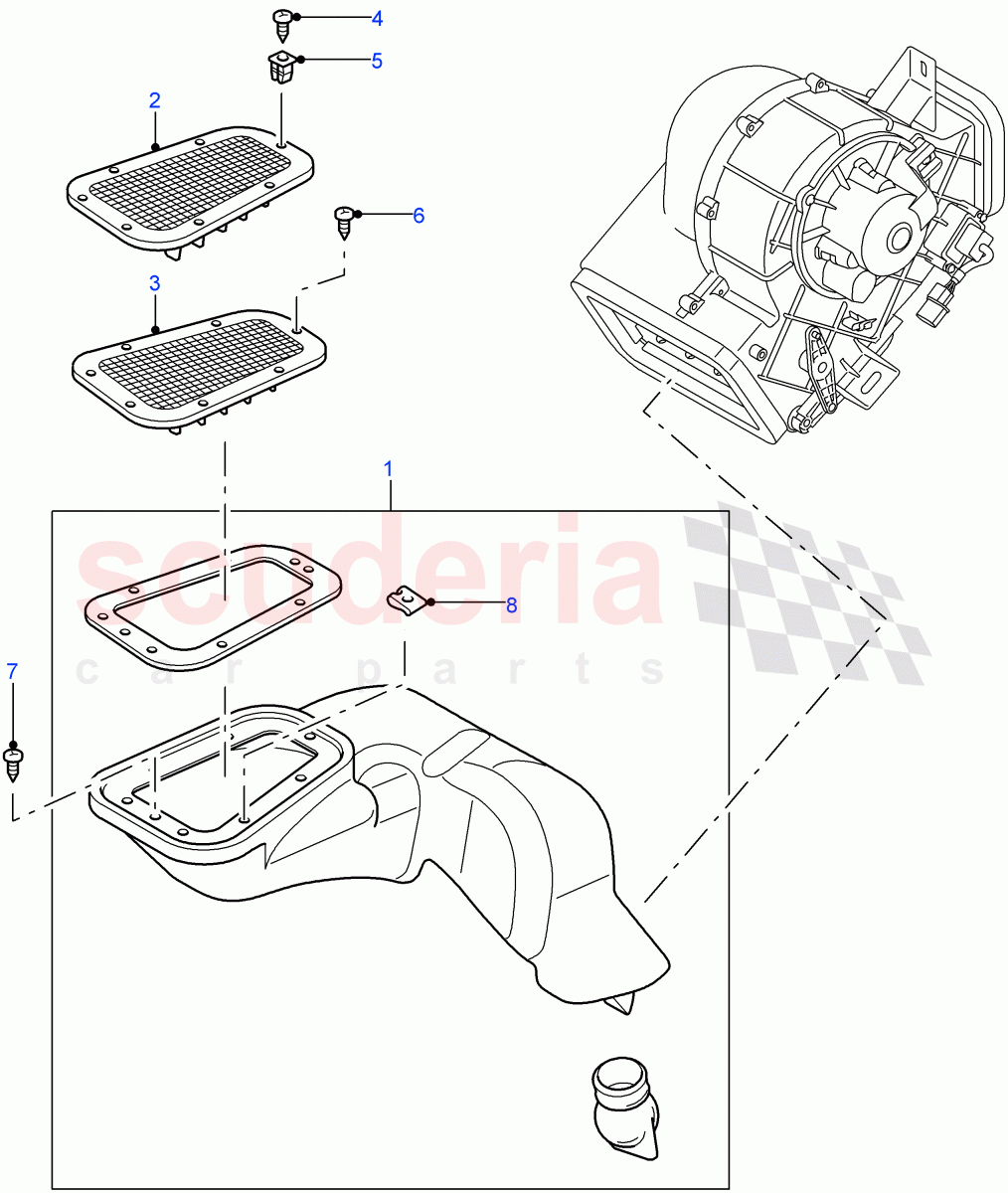

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AB608088	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC3745	NUT - LOCKING	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	AB608088	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	AC608044	SCREW - SELF-TAPPING	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AJ608041	CLIP	$0.59	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	JVD500080	DUCT - AIR	JVD500080 DUCT - AIR RHD	$112.44	1
1	JVD500100	DUCT - AIR	JVD500100 DUCT - AIR LHD	$112.44	1
2	AWR2216	PLATE - BLANKING	AWR2216 PLATE - BLANKING RHD / RH	$18.01	1
2	AWR2217	PLATE - BLANKING	AWR2217 PLATE - BLANKING LHD / LH	$10.92	1
3	AWR2215	GRILLE - AIR INLET	AWR2215 GRILLE - AIR INLET RHD / LH	$17.67	1
3	AWR2214	GRILLE - AIR INLET	AWR2214 GRILLE - AIR INLET LHD / RH	$17.67	1
4	AB608088	SCREW	AB608088 SCREW Air Vent, No 8 x 1, Stainless Steel, Top	$1.07	14
5	RTC3745	NUT - LOCKING	RTC3745 NUT - LOCKING	$1.25	14
6	AB608088	SCREW	AB608088 SCREW Air Vent, No 8 x 1, Stainless Steel, Top	$1.07	14
7	AC608044	SCREW - SELF-TAPPING	AC608044 SCREW - SELF-TAPPING	$0.59	4
8	AJ608041	CLIP	AJ608041 CLIP	$0.59	7

Duct Assembly ((V) From7A000001)

Land Rover Defender (2007-2016)
