Air Conditioning - Pipes & Hoses (With Manual Air Conditioning) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Air Conditioning - Pipes & Hoses (With Manual Air Conditioning) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JUF500340 TUBE $143.00 To Order
Photo Part No Description Price (each) Stock
JUE501120 PIPE - CONDENSER/RECEIVER DRYER $88.23 To Order
LR031368 PIPE - CONDENSER/RECEIVER DRYER $157.70 IN STOCK
Photo Part No Description Price (each) Stock
JUE501020 PIPE $138.56 To Order
Photo Part No Description Price (each) Stock
JUF500320 HOSE $274.65 To Order
LR029652 PIPE - AIR INLET $458.52 To Order
LR036357 PIPE - AIR INLET $464.00 To Order
Photo Part No Description Price (each) Stock
JUU500120 O-RING $4.57 To Order
Photo Part No Description Price (each) Stock
JUU500130 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
JUU500130 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
JUU500130 O-RING $0.65 IN STOCK
Photo Part No Description Price (each) Stock
JTE500030 SWITCH - AIR CONDIT.SYSTEM - VACUUM $97.57 To Order
LR038034 SWITCH - AIR CONDIT.SYSTEM - VACUUM $95.68 To Order
Photo Part No Description Price (each) Stock
JUS500060 CAP $11.09 To Order
Photo Part No Description Price (each) Stock
JUS500070 CAP $6.12 To Order
Photo Part No Description Price (each) Stock
JUU500120 O-RING $4.57 To Order
Photo Part No Description Price (each) Stock
FB106086 BOLT $2.71 To Order
Photo Part No Description Price (each) Stock
FB106086 BOLT $2.71 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
JUU500160 O-RING $0.68 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
FB106066 BOLT $0.67 IN STOCK
Photo Part No Description Price (each) Stock
FB110086 BOLT - HEX.HEAD $0.59 To Order
View All

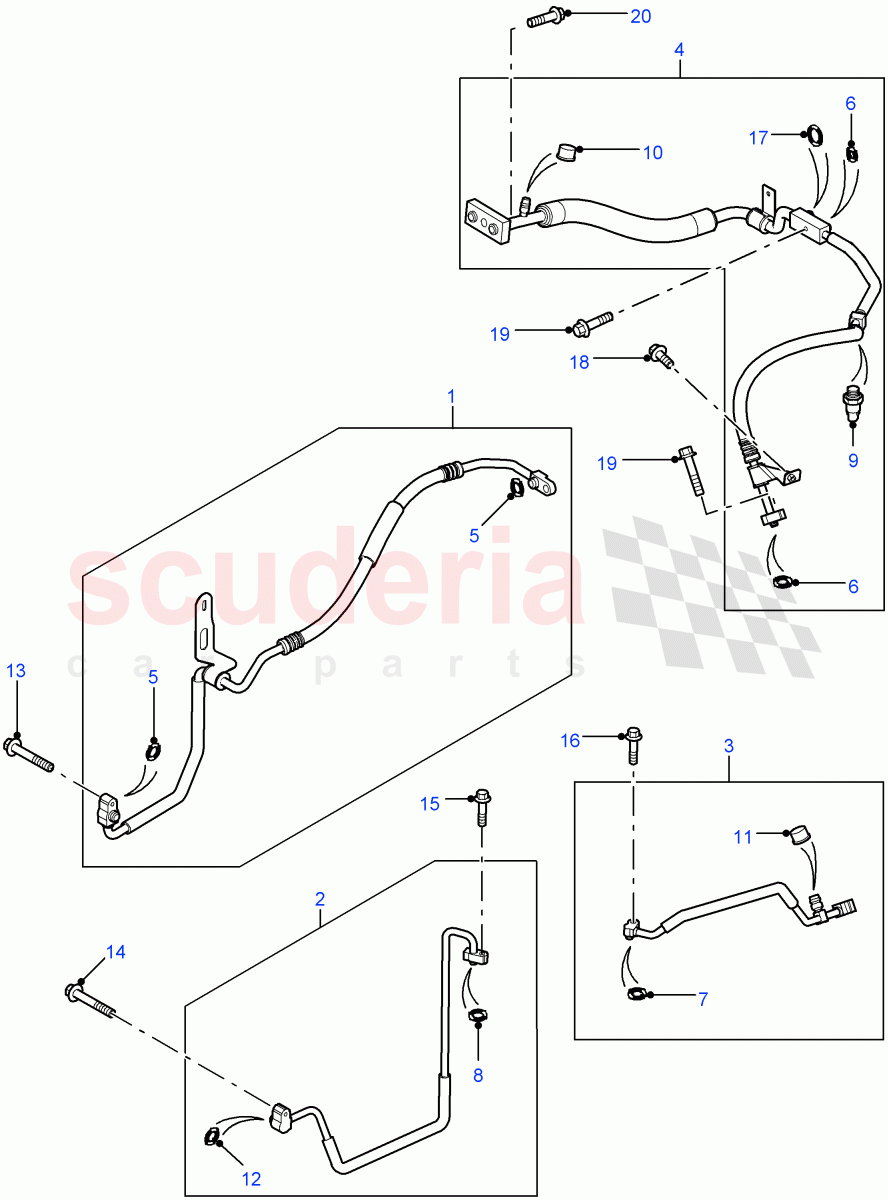

Air Conditioning - Pipes & Hoses (With Manual Air Conditioning) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 JUF500340
TUBE 		$143.00 1
2 JUE501120
PIPE - CONDENSER/RECEIVER DRYER
To: BA999999 		$88.23 1
2 LR031368
PIPE - CONDENSER/RECEIVER DRYER
From: CA000001
IN STOCK 		$157.70 1
3 JUE501020
PIPE 		$138.56 1
4 JUF500320
HOSE
To: BA999999 		$274.65 1
4 LR029652
PIPE - AIR INLET
From: CA000001 / To: CA444443 		$458.52 1
4 LR036357
PIPE - AIR INLET
From: CA444444 		$464.00 1
5 JUU500120
O-RING 		$4.57 2
6 JUU500130
O-RING
IN STOCK 		$0.65 2
7 JUU500130
O-RING
IN STOCK 		$0.65 1
8 JUU500130
O-RING
IN STOCK 		$0.65 1
9 JTE500030
SWITCH - AIR CONDIT.SYSTEM - VACUUM
PRESSURE REGULATOR CONTROL / To: BA999999 		$97.57 1
9 LR038034
SWITCH - AIR CONDIT.SYSTEM - VACUUM
PRESSURE REGULATOR CONTROL / From: CA000001 		$95.68 1
10 JUS500060
CAP 		$11.09 1
11 JUS500070
CAP 		$6.12 1
12 JUU500120
O-RING 		$4.57 1
13 FB106086
BOLT
M6 X 40 		$2.71 1
14 FB106086
BOLT
M6 X 40 		$2.71 1
15 FS106256
SCREW
M6 x 25mm 		$0.43 1
16 FS106256
SCREW
M6 x 25mm 		$0.43 1
17 JUU500160
O-RING 		$0.68 1
18 FS106166
SCREW
M6 X 16
IN STOCK 		$1.24 1
19 FB106066
BOLT
SE Models Only
IN STOCK 		$0.67 1
20 FB110086
BOLT - HEX.HEAD
M10X40 		$0.59 1
