Name: Headlamps (Less Headlamp Levelling) ((V) FROM7A000001)
Rating: 4.4 (1 reviews)

View All

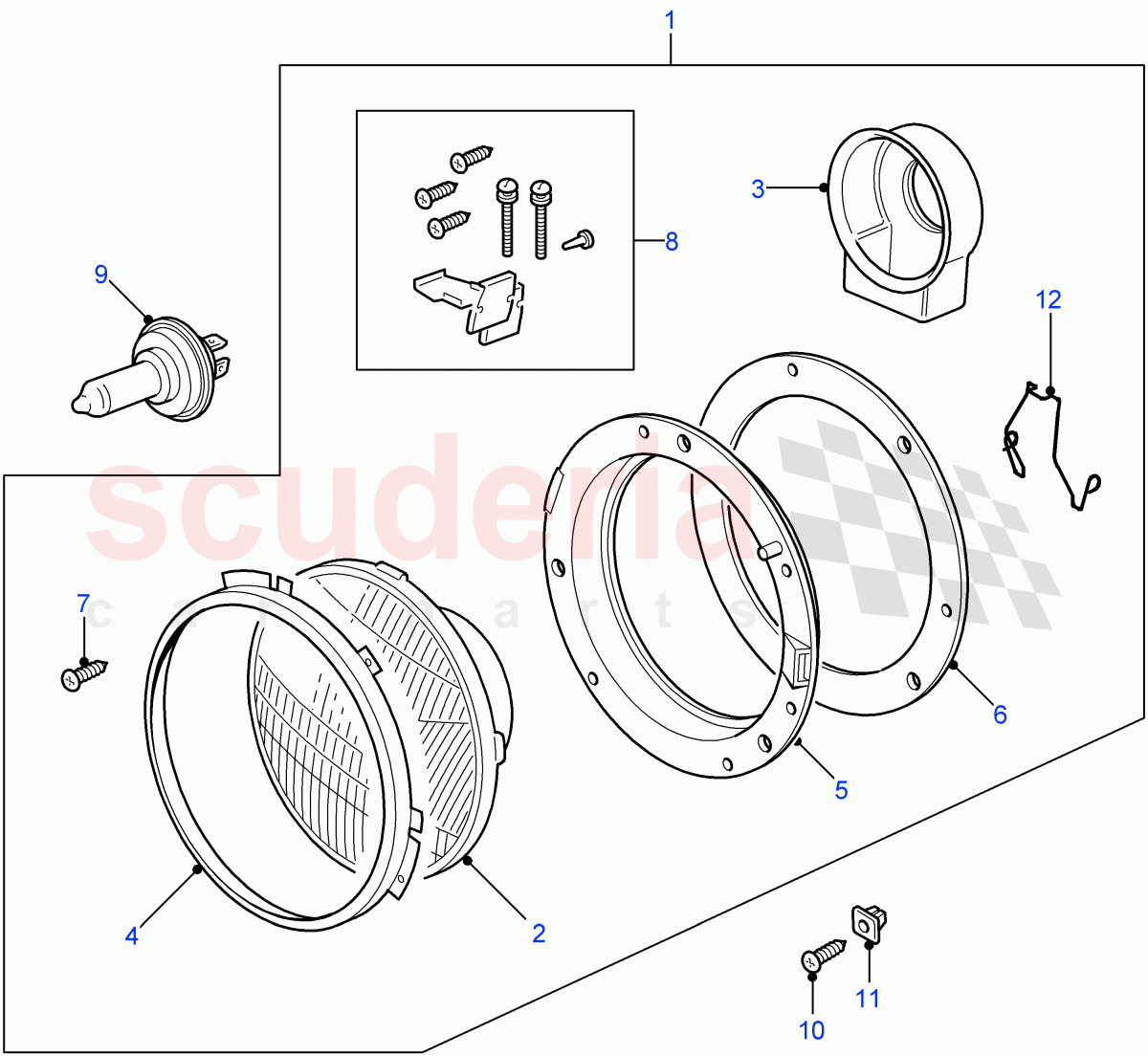

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	STC951	COVER - BULB	$17.46	To Order

Photo	Part No	Description	Price (each)	Stock
	STC3018	BEZEL - HEADLAMP	$21.70	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1613	BODY - HEADLAMP	$28.26	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1612	GASKET - LENS	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1486	SCREW	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1614	KIT - FIXING PARTS	$11.04	To Order

Photo	Part No	Description	Price (each)	Stock
	589783	BULB - HEADLAMP	$20.37	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79051	NUT - LOCKING	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1851	CLIP	$2.65	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AMR2344	HEADLAMP	AMR2344 HEADLAMP Less Headlamp Levelling, RHD / Black, Quartz Halogen, Wipac	$90.23	2
1	AMR2345	HEADLAMP	AMR2345 HEADLAMP LHD, Less Headlamp Levelling / Black, Quartz Halogen, Wipac	$145.97	2
2	STC1209	LAMP	STC1209 LAMP Less Headlamp Levelling, RHD / Quartz Halogen, Wipac	$44.73	2
2	STC1210	LAMP	STC1210 LAMP LHD, Less Headlamp Levelling / Quartz Halogen, Wipac	$45.38	2
3	STC951	COVER - BULB	STC951 COVER - BULB Less Headlamp Levelling	$17.46	2
4	STC3018	BEZEL - HEADLAMP	STC3018 BEZEL - HEADLAMP	$21.70	2
5	STC1613	BODY - HEADLAMP	STC1613 BODY - HEADLAMP	$28.26	2
6	STC1612	GASKET - LENS	STC1612 GASKET - LENS Headlamp	$10.96	2
7	STC1486	SCREW	STC1486 SCREW Black	$3.27	6
8	STC1614	KIT - FIXING PARTS	STC1614 KIT - FIXING PARTS	$11.04	2
9	589783	BULB - HEADLAMP	589783 BULB - HEADLAMP Less Headlamp Levelling / Clear., main & dipped front light, Quartz Halogen	$20.37	2
10	PYP500140	SCREW IN STOCK	PYP500140 SCREW headlamp to body, No 8 x 1/2, Self Tapping IN STOCK	$0.77	8
11	79051	NUT - LOCKING	79051 NUT - LOCKING headlamp to body	$1.24	8
12	STC1851	CLIP	STC1851 CLIP Less Headlamp Levelling / QUARTZ HALOGEN	$2.65	2

Headlamps (Less Headlamp Levelling) ((V) From7A000001)

Land Rover Defender (2007-2016)
