Relays And Fuses ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Relays And Fuses ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029677 BOX - FUSE $784.61 To Order
LR029678 BOX - FUSE $684.26 To Order
LR055525 BOX - FUSE $810.05 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YWB500060 RELAY $12.08 To Order
PRC6796 RELAY $95.92 To Order
Photo Part No Description Price (each) Stock
RTC4507 FUSE $3.60 To Order
ADU1878L FUSE $2.81 To Order
RTC4503 FUSE $4.18 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031708 LABEL - FUSE IDENTIFICATION $1.31 To Order
LR058108 LABEL - FUSE IDENTIFICATION $16.34 To Order
Photo Part No Description Price (each) Stock
LR042647 FUSE $2.83 To Order
LR030046 FUSE $4.01 To Order
LR030045 FUSE $2.11 To Order
View All

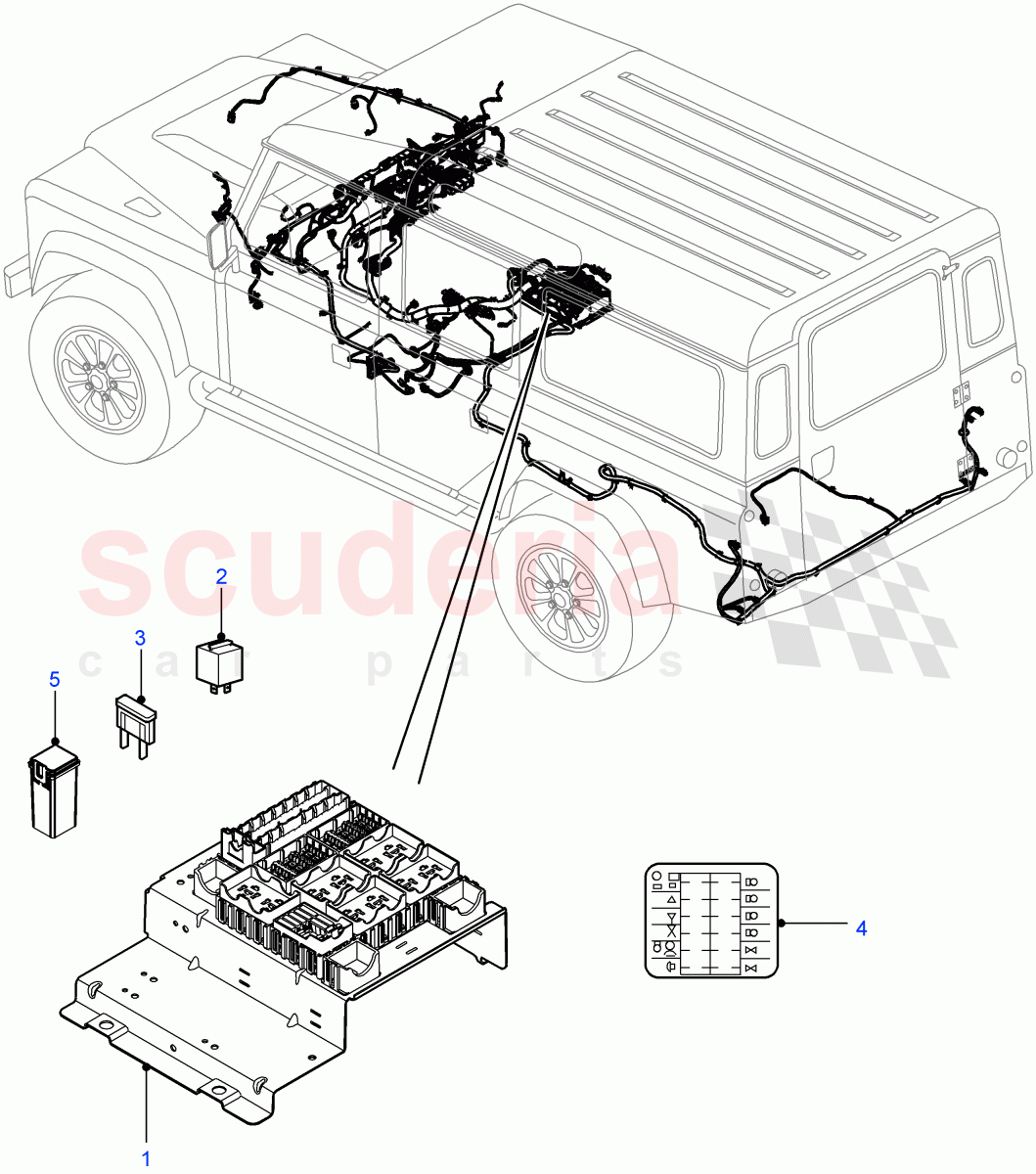

Relays And Fuses ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029677
BOX - FUSE
With Manual Air Conditioning / To: DA443152 		$784.61 1
1 LR029678
BOX - FUSE
Less Air Conditioning / To: DA443114 		$684.26 1
1 LR055525
BOX - FUSE
With Manual Air Conditioning / From: DA443153 		$810.05 1
1 LR055526
BOX - FUSE
Less Air Conditioning / From: DA443115 		$734.75 1
2 YWB500060
RELAY
Black With White Stripe 		$12.08 5
2 PRC6796
RELAY
front screen-timer, Grey 		$95.92 1
3 RTC4507
FUSE
30 AMP, Automatic, standard. 		$3.60 -
3 ADU1878L
FUSE
20 AMP, Automatic, standard. 		$2.81 -
3 RTC4503
FUSE
15 AMP, Automatic, standard. 		$4.18 -
3 RTC4501
FUSE
10 AMP, Automatic, Standard 		$2.85 -
3 RTC4497
FUSE
5 AMP, Automatic, Standard 		$1.36 -
4 LR031708
LABEL - FUSE IDENTIFICATION
To: DA444878 		$1.31 1
4 LR058108
LABEL - FUSE IDENTIFICATION
From: DA444879 		$16.34 1
5 LR042647
FUSE
60 AMP, Yellow J-Case Fuse / From: CA000001 		$2.83 -
5 LR030046
FUSE
40 AMP, Green J-Case Fuse / From: CA000001 		$4.01 -
5 LR030045
FUSE
30 AMP, Pink J-Case Fuse / From: CA000001 		$2.11 -
