Electrical Wiring - Engine And Dash (Transmission)

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Electrical Wiring - Engine And Dash (Transmission)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500100 BOLT $2.11 To Order
Photo Part No Description Price (each) Stock
FS106122 BOLT $4.09 To Order
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
LR141828 TERMINAL - BATTERY MANAGEMENT SYSTEM $8.30 To Order
Photo Part No Description Price (each) Stock
LR135975 WIRING - TRANSMISSION $208.41 To Order
LR135978 WIRING - TRANSMISSION $201.66 To Order
LR135979 WIRING - TRANSMISSION $252.91 To Order
...and 36 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR131403 WIRE $36.03 To Order
LR146113 WIRE $35.67 To Order
LR149116 WIRE - EARTH $51.78 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR136763 BRACKET - WIRING $29.62 To Order
Photo Part No Description Price (each) Stock
LR154076 BRACKET - WIRING $38.82 To Order
Photo Part No Description Price (each) Stock
LR148318 CLIP $20.01 To Order
View All

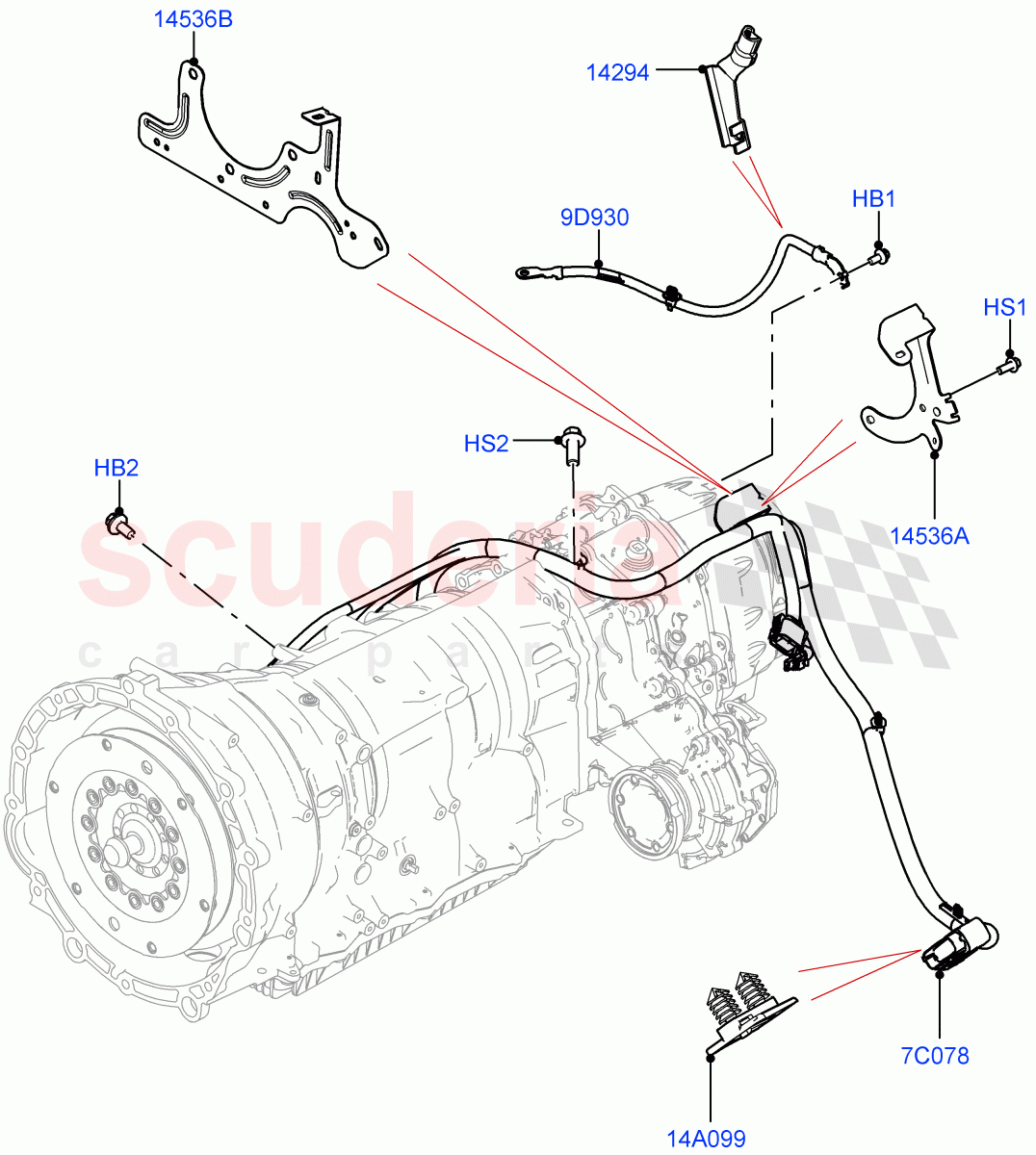

Electrical Wiring - Engine And Dash (Transmission) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 YYP500100
BOLT
M8 X 16MM 		$2.11 1
HB2 FS106122
BOLT
Hexagonal Head, M6 x 12MM 		$4.09 1
HS1 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite 		$1.36 2
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: M2000001
IN STOCK 		$0.47 1
7C078 LR135975
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Beijing 6 Petrol Emission, Less Electric Engine Battery, Less Emission Tank / Transmission / To: L2011967 		$208.41 1
7C078 LR135978
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, EU2, Less Electric Engine Battery, Less Emission Tank / Transmission / To: L2011967 		$201.66 1
7C078 LR135979
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Electric Engine Battery, With Diesel Exh Fluid Emission Tank / Transmission / To: L2011967 		$252.91 1
7C078 LR135977
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Electric Engine Battery, Less Emission Tank / Transmission / To: L2011967 		$190.76 1
7C078 LR135980
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Electric Engine Battery-MHEV, Less Emission Tank, Stage V Plus DPF / Transmission / To: L2011967 		$238.00 1
7C078 LR135981
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, China N6B (Petrol) - Compliance, Electric Engine Battery-MHEV, Less Emission Tank / Transmission / To: L2011967 		$238.00 1
7C078 LR135982
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, Electric Engine Battery-PHEV, Less Emission Tank, Proconve L6 Emissions / Transmission / To: L2011967 		$271.21 1
7C078 LR135983
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, EU6C Emission, Electric Engine Battery-PHEV, Less Emission Tank / Transmission / To: L2011967 		$271.21 1
7C078 LR148537
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, EU2, Less Emission Tank / Transmission / From: M2000001 / To: N2999999 		$233.74 1
7C078 LR148536
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Emission Tank / Transmission / From: M2000001 / To: N2999999 		$233.74 1
7C078 LR148535
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, With Diesel Exh Fluid Emission Tank / Transmission / From: M2000001 / To: N2999999 		$220.73 1
7C078 LR148534
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Less Emission Tank, SULEV Requirements / Transmission / From: M2000001 / To: N2999999 		$194.65 1
7C078 LR148539
WIRING - TRANSMISSION
5.0 Petrol AJ133 DOHC CDA, 8 Speed Auto Trans ZF 8HP70 4WD, Stage V European Emissions / Transmission / From: M2000001 / To: N2999999 		$233.74 1
7C078 LR148560
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, Beijing 6 Petrol Emission, Less Emission Tank, Standard Wheelbase / Transmission / From: M2000001 / To: N2999999 		$213.29 1
7C078 LR148558
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, Less Emission Tank, Proconve L6 Emissions, Standard Wheelbase / Transmission / From: M2000001 / To: N2999999 		$220.73 1
7C078 LR148543
WIRING - TRANSMISSION
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, With Diesel Exh Fluid Emission Tank / Transmission / From: M2000001 / To: N2999999 		$197.50 1
7C078 LR148542
WIRING - TRANSMISSION
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, Less Emission Tank / Transmission / From: M2000001 / To: N2999999 		$225.84 1
7C078 LR148541
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Beijing 6 Petrol Emission, Less Emission Tank / Transmission / From: M2000001 / To: N2999999 		$206.14 1
7C078 LR148540
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Less Emission Tank, ULEV 125 Emission / Transmission / From: M2000001 / To: N2999999 		$225.84 1
7C078 LR148538
WIRING - TRANSMISSION
5.0 Petrol AJ133 DOHC CDA, 8 Speed Auto Trans ZF 8HP70 4WD, Beijing 6 Petrol Emission / Transmission / From: M2000001 / To: N2999999 		$216.43 1
7C078 LR145390
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Electric Engine Battery, With Diesel Exh Fluid Emission Tank / Transmission / From: L2011968 / To: L2999999 		$215.36 1
7C078 LR145397
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Electric Engine Battery, Less Emission Tank / Transmission / From: L2011968 / To: L2999999 		$190.76 1
7C078 LR145400
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Beijing 6 Petrol Emission, Less Electric Engine Battery, Less Emission Tank / Transmission / From: L2011968 / To: L2999999 		$198.48 1
7C078 LR145395
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Less Electric Engine Battery, Less Emission Tank, Proconve L6 Emissions / Transmission / From: L2011968 / To: L2999999 		$201.66 1
7C078 LR145412
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, Electric Engine Battery-PHEV, Less Emission Tank, Proconve L6 Emissions, Standard Wheelbase / Transmission / From: L2011968 / To: L2999999 		$271.21 1
7C078 LR145411
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, Electric Engine Battery-PHEV, Japan CAA Emission, Less Emission Tank / Transmission / From: L2011968 / To: L2999999 		$271.21 1
7C078 LR145416
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Electric Engine Battery-MHEV, Japan CAA Emission, Less Emission Tank / Transmission / From: L2011968 / To: L2999999 		$193.02 1
7C078 LR145414
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, EU6C Emission, Electric Engine Battery-MHEV, Less Emission Tank / Transmission / From: L2011968 / To: L2999999 		$199.77 1
7C078 LR171782
WIRING - TRANSMISSION
5.0 Petrol AJ133 DOHC CDA, 8 Speed Auto Trans ZF 8HP70 4WD, Short Wheelbase, Stage V European Emissions / Transmission / From: P2000001 		$242.44 1
7C078 LR171781
WIRING - TRANSMISSION
5.0 Petrol AJ133 DOHC CDA, 8 Speed Auto Trans ZF 8HP70 4WD, Beijing 6 Petrol Emission, Short Wheelbase / Transmission / From: P2000001 		$242.44 1
7C078 LR171780
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Euro Stage 4 Emissions, Less Emission Tank, Short Wheelbase / Transmission / From: P2000001 		$203.51 1
7C078 LR171779
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Less Emission Tank, Standard Wheelbase / Transmission / From: P2000001 		$184.50 1
7C078 LR171778
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, EU6D - Final (Petrol) Emission, Less Emission Tank, Standard Wheelbase / Transmission / From: P2000001 		$400.28 1
7C078 LR171777
WIRING - TRANSMISSION
2.0L AJ200P Hi PHEV, 8HP Gen3 Hybrid Trans, EU6D - Final (Diesel) Emission, Less Emission Tank, Standard Wheelbase / Transmission / From: P2000001 		$373.90 1
7C078 LR171776
WIRING - TRANSMISSION
2.0L I4 DSL HIGH DOHC AJ200, 8 Speed Auto Trans ZF 8HP70 4WD, Standard Wheelbase, With Diesel Exh Fluid Emission Tank / Transmission / From: P2000001 		$212.16 1
7C078 LR172296
Wire
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, With Diesel Exh Fluid Emission Tank / Transmission / From: P2000001 		$222.70 1
7C078 LR172297
Wire
3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76, Less Emission Tank / Transmission / From: P2000001 		$208.57 1
7C078 LR171775
WIRING - TRANSMISSION
3.0L AJ20P6 Petrol High, 8 Speed Auto Trans ZF 8HP76, Less Emission Tank / Transmission / From: P2000001 		$230.32 1
7C078 LR171774
WIRING - TRANSMISSION
2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45, Less Emission Tank, SULEV Requirements, Short Wheelbase / Transmission / From: P2000001 		$221.70 1
9D930 LR131403
WIRE
Earth Cable For Transfer Box / To: L2011967 		$36.03 1
9D930 LR146113
WIRE
Earth Cable For Transfer Box / From: L2011968 / To: L2999999 		$35.67 1
9D930 LR149116
WIRE - EARTH
2.0L I4 High DOHC AJ200 Petrol / Earth Cable For Transfer Box / From: M2000001 / To: N2999999 		$51.78 1
9D930 LR141802
WIRE
3.0L AJ20D6 Diesel High / Earth Cable For Transfer Box / From: M2000001 / To: N2999999 		$53.58 1
9D930 LR149118
WIRE - EARTH
2.0L AJ200P Hi PHEV / Earth Cable For Transfer Box / From: M2000001 / To: N2999999 		$39.25 1
9D930 LR171967
WIRE - EARTH
2.0L AJ200P Hi PHEV, Standard Wheelbase / Earth Cable For Transfer Box / From: P2000001 		$37.14 1
9D930 LR171966
WIRE - EARTH
3.0L AJ20D6 Diesel High / Earth Cable For Transfer Box / From: P2000001 		$37.14 1
9D930 LR171965
WIRE - EARTH
2.0L I4 DSL HIGH DOHC AJ200 / Earth Cable For Transfer Box / From: P2000001 		$35.05 1
14A099 LR148318
CLIP
From: M2000001 		$20.01 1
14294 LR141828
TERMINAL - BATTERY MANAGEMENT SYSTEM
From: M2000001 		$8.30 1
14536A LR136763
BRACKET - WIRING 		$29.62 1
14536B LR154076
BRACKET - WIRING
5.0 Petrol AJ133 DOHC CDA / From: M2065457 		$38.82 1
