Name: Rear Lamps
Rating: 4.8 (1 reviews)

Rear Lamps of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Lamps

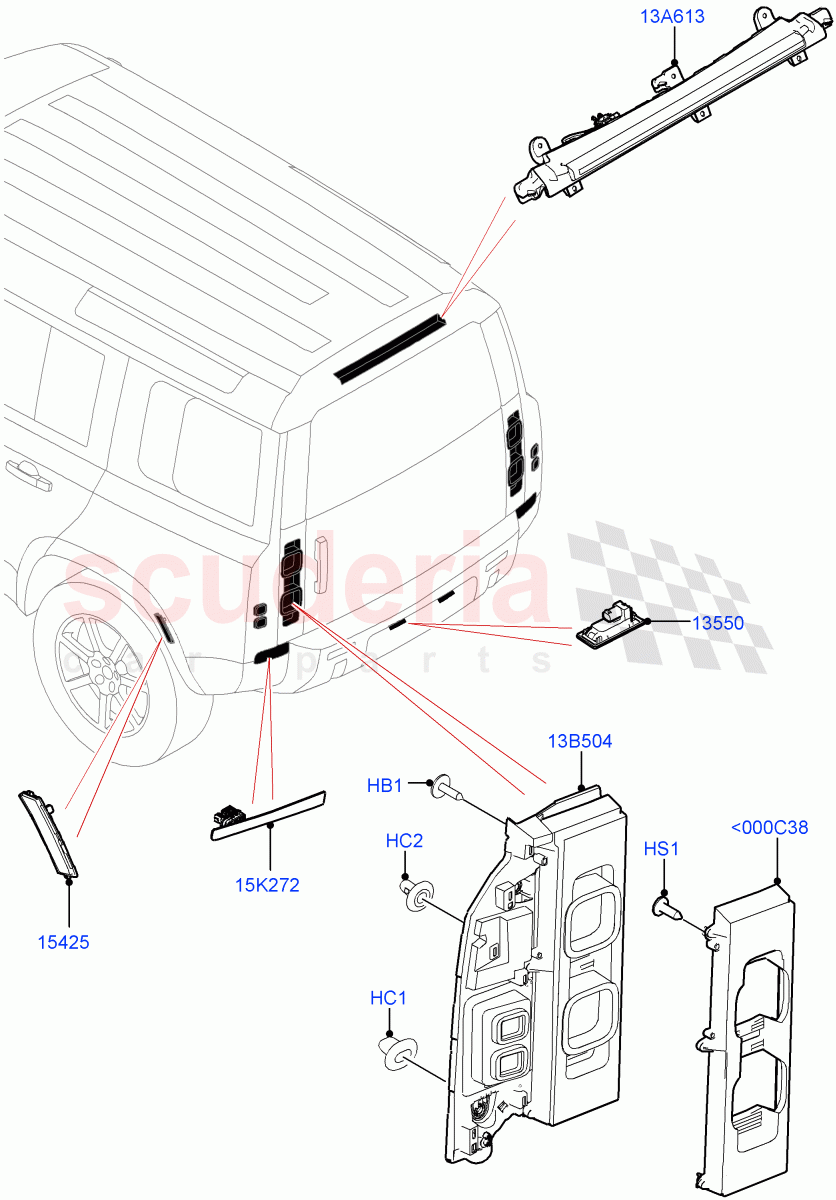

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000080	CLIP	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000081	CLIP - RETAINING	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129534	SCREW	$6.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089442	LAMP - LICENCE PLATE	$35.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135947	LAMP - SIDE MARKER	$60.29	To Order
	LR135948	LAMP - SIDE MARKER	$59.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129796	LAMP - REAR - HIGH MOUNTED	$140.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129762	LAMP - REAR- STOP AND FLASHER	$351.64	To Order
	LR129773	LAMP - REAR- STOP AND FLASHER	$497.49	To Order
	LR133580	LAMP - REAR- STOP AND FLASHER	$529.06	To Order

...and 23 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR130824	LAMP - FOG - REAR	$135.10	To Order
	LR130826	LAMP - FOG - REAR	$135.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131792	COVER - REAR LIGHT CLUSTER	$367.12	To Order
	LR131795	COVER - REAR LIGHT CLUSTER	$367.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<000C38	LR131792	COVER - REAR LIGHT CLUSTER	LR131792 COVER - REAR LIGHT CLUSTER H/Lamp Operation FM VSS 108 Pattern / RH	$367.12	1
<000C38	LR131795	COVER - REAR LIGHT CLUSTER	LR131795 COVER - REAR LIGHT CLUSTER H/Lamp Operation RHD - Left Justify / LH	$367.12	1
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM	$0.52	3
HC1	LR000080	CLIP	LR000080 CLIP 8 x 12MM	$0.67	1
HC2	LR000081	CLIP - RETAINING	LR000081 CLIP - RETAINING M8 x 1.0MM	$0.67	2
HS1	LR129534	SCREW	LR129534 SCREW H/Lamp Operation LHD-Right Justify / 3.5 x 14mm	$6.80	12
13A613	LR129796	LAMP - REAR - HIGH MOUNTED	LR129796 LAMP - REAR - HIGH MOUNTED	$140.54	1
13B504	LR129762	LAMP - REAR- STOP AND FLASHER	LR129762 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Taillamps - LED / RH / To: M2016134	$351.64	1
13B504	LR129773	LAMP - REAR- STOP AND FLASHER	LR129773 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / RH / To: M2016134	$497.49	1
13B504	LR133580	LAMP - REAR- STOP AND FLASHER	LR133580 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Tail Lamps - Dark / RH / To: M2016134	$529.06	1
13B504	LR133581	LAMP - REAR- STOP AND FLASHER	LR133581 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / To: M2016134	$626.80	1
13B504	LR129775	LAMP - REAR- STOP AND FLASHER	LR129775 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Taillamps - LED / LH / To: M2016134	$351.64	1
13B504	LR129790	LAMP - REAR- STOP AND FLASHER	LR129790 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / LH / To: M2016134	$497.49	1
13B504	LR133582	LAMP - REAR- STOP AND FLASHER	LR133582 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / LH / To: M2016134	$529.06	1
13B504	LR133583	LAMP - REAR- STOP AND FLASHER	LR133583 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / To: M2016134	$626.80	1
13B504	LR144453	LAMP - REAR- STOP AND FLASHER	LR144453 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / RH / From: M2016135 / To: M2050988	$497.49	1
13B504	LR144456	LAMP - REAR- STOP AND FLASHER	LR144456 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / LH / From: M2016135 / To: M2050988	$497.49	1
13B504	LR144455	LAMP - REAR- STOP AND FLASHER	LR144455 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Taillamps - LED / LH / From: M2016135 / To: M2050988	$473.79	1
13B504	LR144452	LAMP - REAR- STOP AND FLASHER	LR144452 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Taillamps - LED / RH / From: M2016135 / To: M2050988	$473.79	1
13B504	LR144457	LAMP - REAR- STOP AND FLASHER	LR144457 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / LH / From: M2016135 / To: M2050988	$529.06	1
13B504	LR144458	LAMP - REAR- STOP AND FLASHER	LR144458 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / From: M2016135 / To: M2050988	$626.80	1
13B504	LR144454	LAMP - REAR- STOP AND FLASHER	LR144454 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / RH / From: M2016135 / To: M2050988	$529.06	1
13B504	LR144594	LAMP - REAR- STOP AND FLASHER	LR144594 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / From: M2016135 / To: M2050988	$626.80	1
13B504	LR147940	LAMP - REAR- STOP AND FLASHER	LR147940 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / RH / From: M2050989	$497.49	1
13B504	LR147941	LAMP - REAR- STOP AND FLASHER	LR147941 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Taillamps - LED / LH / From: M2050989	$497.49	1
13B504	LR181021	LAMP - REAR- STOP AND FLASHER	LR181021 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Tail Lamps - Dark / RH / From: M2050989	$529.06	1
13B504	LR181022	LAMP - REAR- STOP AND FLASHER	LR181022 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Tail Lamps - Dark / LH / From: M2050989	$529.06	1
13B504	LR147947	LAMP - REAR- STOP AND FLASHER	LR147947 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / From: M2050989 / To: N2086918	$626.80	1
13B504	LR147946	LAMP - REAR- STOP AND FLASHER	LR147946 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / From: M2050989 / To: N2086918	$626.80	1
13B504	LR147938	LAMP - REAR- STOP AND FLASHER	LR147938 LAMP - REAR- STOP AND FLASHER H/Lamp Operation RHD - Left Justify, Taillamps - LED / RH / From: M2050989	$473.79	1
13B504	LR147942	LAMP - REAR- STOP AND FLASHER	LR147942 LAMP - REAR- STOP AND FLASHER H/Lamp Operation LHD-Right Justify, Taillamps - LED / LH / From: M2050989	$473.79	1
13B504	LR164870	LAMP - REAR- STOP AND FLASHER	LR164870 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / RH / From: N2086919	$626.80	1
13B504	LR164871	LAMP - REAR- STOP AND FLASHER	LR164871 LAMP - REAR- STOP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, Tail Lamps - Dark / LH / From: N2086919	$626.80	1
15K272	LR130824	LAMP - FOG - REAR	LR130824 LAMP - FOG - REAR RH	$135.10	1
15K272	LR130826	LAMP - FOG - REAR	LR130826 LAMP - FOG - REAR LH	$135.10	1
13550	LR089442	LAMP - LICENCE PLATE	LR089442 LAMP - LICENCE PLATE	$35.69	2
15425	LR135947	LAMP - SIDE MARKER	LR135947 LAMP - SIDE MARKER Cladding - Anthracite, H/Lamp Operation FM VSS 108 Pattern / RH	$60.29	1
15425	LR135948	LAMP - SIDE MARKER	LR135948 LAMP - SIDE MARKER Cladding - Anthracite, H/Lamp Operation FM VSS 108 Pattern / LH	$59.88	1

Rear Lamps

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Defender (2020+) [3.0 I6 Turbo Petrol AJ20P6] - Rear Lamps
