Vehicle Modules And Sensors

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Vehicle Modules And Sensors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.10 IN STOCK
Photo Part No Description Price (each) Stock
LR129198 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR137271 BRACKET - VOLTAGE QUALITY MODULE $57.53 To Order
Photo Part No Description Price (each) Stock
LR086370 SENSOR - AIR CONDITIONER SUN LOAD $71.96 To Order
Photo Part No Description Price (each) Stock
LR140962 MODULE - BODY CONTROL $585.61 To Order
LR154985 JUNCTION BOX $524.75 To Order
475123462 MODULE - BODY CONTROL $719.41 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR131702 BRACKET - JUNCTION BOX MOUNTING $85.09 To Order
LR131703 BRACKET - JUNCTION BOX MOUNTING $78.80 To Order
Photo Part No Description Price (each) Stock
LR149763 BRACKET - CONTROL MODULE $38.70 To Order
Photo Part No Description Price (each) Stock
LR132060 MODULE-CONTROL $535.46 To Order
LR144133 MODULE-CONTROL $562.36 To Order
LR169859 MODULE-CONTROL $575.24 To Order
Photo Part No Description Price (each) Stock
LR129341 SENSOR - BLIND SPOT MONITORING $874.48 To Order
LR159593 SENSOR - BLIND SPOT MONITORING $874.48 To Order
Photo Part No Description Price (each) Stock
LR079623 MODULE - BATTERY $316.07 To Order
Photo Part No Description Price (each) Stock
LR098321 SENSOR - DOOR $68.27 To Order
LR098327 SENSOR - DOOR $65.10 To Order
Photo Part No Description Price (each) Stock
LR058011 SENSOR - CLIMATE CONTROL SYSTEM $144.18 To Order
Photo Part No Description Price (each) Stock
LR129330 MODULE - WINDSHIELD RAIN SENSOR $252.04 To Order
LR139478 MODULE - WINDSHIELD RAIN SENSOR $217.49 To Order
LR153893 MODULE - WINDSHIELD RAIN SENSOR $244.70 To Order
Photo Part No Description Price (each) Stock
LR126761 HEATER CONTROL $436.68 To Order
LR126761 HEATER CONTROL $436.68 To Order
LR126760 HEATER CONTROL $460.72 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098366 CONTROL UNIT - SEAT REGULATION $265.68 To Order
LR140851 MODULE-CONTROL $458.07 To Order
Photo Part No Description Price (each) Stock
LR070364 MODULE - SEAT HEATER CONTROL $132.07 To Order
View All

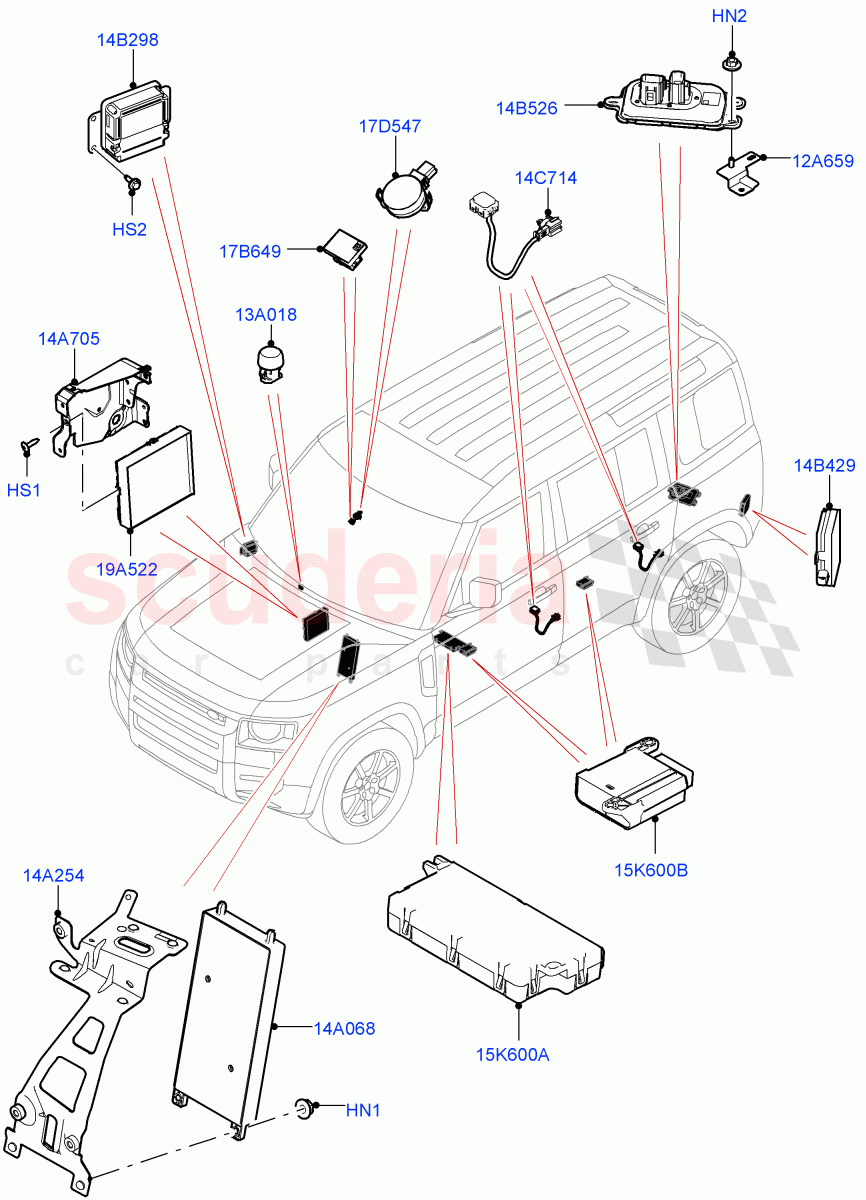

Vehicle Modules And Sensors of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.03 2
HN2 RYH500310
NUT AND WASHER - HEX.
ACC + Stop/go + Cra, Less Electric Engine Battery / Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.10 3
HS1 LR129198
SCREW
Hexagonal Head, M5 x 16mm 		$0.97 3
HS2 RYG501590
SCREW
Adaptive Cruise Control with Stg As / Hexagonal Head, M6 X 20MM
IN STOCK 		$1.00 3
12A659 LR137271
BRACKET - VOLTAGE QUALITY MODULE
ACC + Stop/go + Cra, Less Electric Engine Battery / Voltage Quality Module 		$57.53 1
13A018 LR086370
SENSOR - AIR CONDITIONER SUN LOAD
Air Conditioner Sunload 		$71.96 1
14A068 LR140962
MODULE - BODY CONTROL
To: M2064424 		$585.61 1
14A068 LR154985
JUNCTION BOX
From: M2065457 / To: N2089173 		$524.75 1
14A068 475123462
MODULE - BODY CONTROL
From: M2064425 / To: M2065456 		$719.41 1
14A068 LR163546
JUNCTION BOX
From: N2089174 / To: N2101671 		$540.61 1
14A068 LR163546
JUNCTION BOX
Electric Engine Battery-PHEV / From: N2101672 		$540.61 1
14A068 LR172878
JUNCTION BOX
Less Electric Engine Battery / From: N2101672 		$551.25 1
14A254 LR131702
BRACKET - JUNCTION BOX MOUNTING
LHD / Fuse Box 		$85.09 1
14A254 LR131703
BRACKET - JUNCTION BOX MOUNTING
RHD / Fuse Box 		$78.80 1
14A705 LR149763
BRACKET - CONTROL MODULE
RHD 		$38.70 1
14B298 LR132060
MODULE-CONTROL
Driver Assistance Domain Controller / To: L2999999 		$535.46 1
14B298 LR144133
MODULE-CONTROL
Driver Assistance Domain Controller / From: M2000001 / To: N2999999 		$562.36 1
14B298 LR169859
MODULE-CONTROL
Driver Assistance Domain Controller / From: P2000001 		$575.24 1
14B429 LR129341
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / RH/LH / To: N2084853 		$874.48 2
14B429 LR159593
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / RH/LH / From: N2084854 		$874.48 2
14B526 LR079623
MODULE - BATTERY
Less Electric Engine Battery, With Speed Control / Voltage Quality Module 		$316.07 1
14C714 LR098321
SENSOR - DOOR
Clear Exit Detection / RH, Front And Rear Door 		$68.27 2
14C714 LR098327
SENSOR - DOOR
Clear Exit Detection / LH, Front And Rear Door 		$65.10 2
15K600A LR098366
CONTROL UNIT - SEAT REGULATION
Driver/Pass Elec Fr Seat Adj/Memory / RH/LH, Seat Memory Module / To: M2065456 		$265.68 2
15K600A LR140851
MODULE-CONTROL
Driver/Pass Elec Fr Seat Adj/Memory / RH/LH, Seat Memory Module / From: M2065457 		$458.07 2
15K600B LR070364
MODULE - SEAT HEATER CONTROL
With Heated/Cooled Front Seats Only / Front, RH/LH, Seat Heater Control 		$132.07 2
17B649 LR058011
SENSOR - CLIMATE CONTROL SYSTEM
Humidity Sensor, Located Near Rear View Mirror 		$144.18 1
17D547 LR129330
MODULE - WINDSHIELD RAIN SENSOR
To: L2000583 		$252.04 1
17D547 LR139478
MODULE - WINDSHIELD RAIN SENSOR
From: L2000584 / To: M2065456 		$217.49 1
17D547 LR153893
MODULE - WINDSHIELD RAIN SENSOR
From: M2065457 		$244.70 1
19A522 LR126761
HEATER CONTROL
2.0L I4 High DOHC AJ200 Petrol / To: N2103637 		$436.68 1
19A522 LR126761
HEATER CONTROL
5.0 Petrol AJ133 DOHC CDA / From: M2000001 / To: N2103637 		$436.68 1
19A522 LR126760
HEATER CONTROL
2.0L AJ200P Hi PHEV, Air Conditioning Refrigerant-R134A / From: M2000001 / To: N2103637 		$460.72 1
19A522 LR171747
HEATER CONTROL
2.0L AJ200P Hi PHEV, A/C HF01234YF w/Intrnl Heat Exchng / From: N2103638 		$482.23 1
19A522 LR171748
HEATER CONTROL
2.0L I4 DSL HIGH DOHC AJ200 / From: N2103638 		$505.40 1
