Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-Phev)...

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-PHEV)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR090446 BOLT $1.95 To Order
Photo Part No Description Price (each) Stock
LR149113 CABLE - BATTERY NEGATIVE $216.05 To Order
Photo Part No Description Price (each) Stock
LR131945 SHIELD - BATTERY CHARGER $503.63 To Order
Photo Part No Description Price (each) Stock
LR142568 JUNCTION BOX $3,558.49 To Order
LR161312 JUNCTION BOX $3,558.49 To Order
LR162023 JUNCTION BOX $3,558.49 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR146027 BRACKET - BATTERY CHARGER $307.64 To Order
Photo Part No Description Price (each) Stock
LR133635 BRACKET - BATTERY CHARGER $89.59 To Order
View All

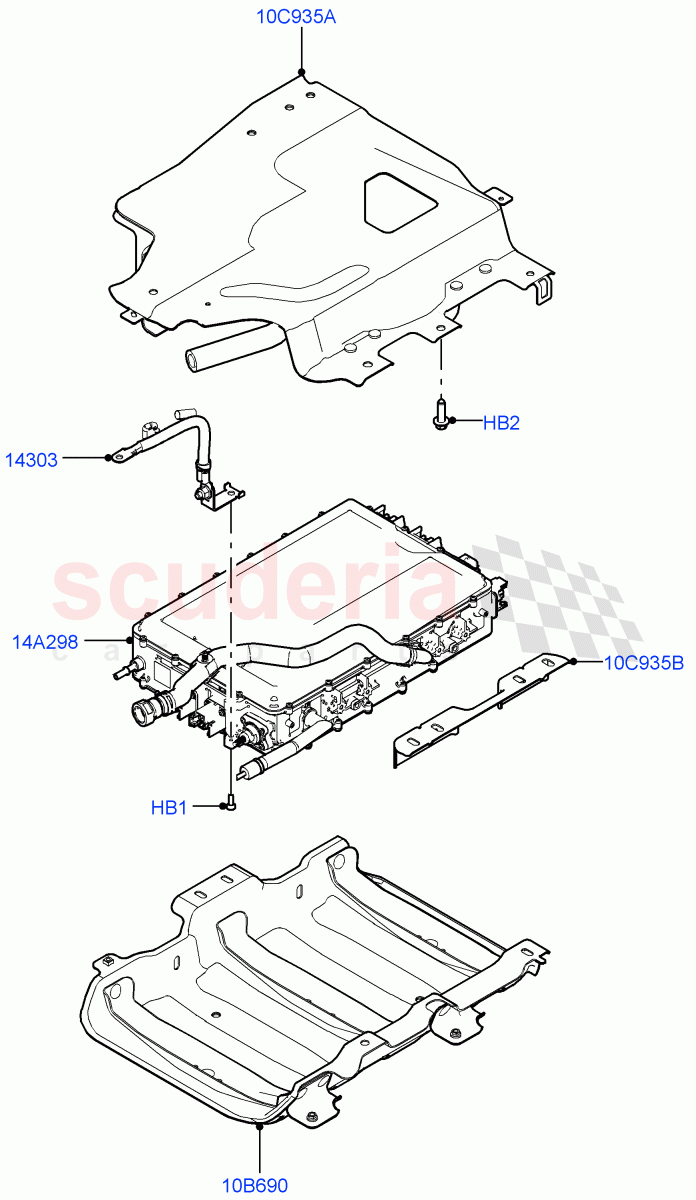

Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Electric Engine Battery-PHEV) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: M2000001
IN STOCK 		$2.29 1
HB2 LR090446
BOLT
M10 X 30MM / From: M2000001 		$1.95 4
10B690 LR131945
SHIELD - BATTERY CHARGER
Lower / From: M2000001 		$503.63 1
10C935A LR146027
BRACKET - BATTERY CHARGER
Upper / From: M2000001 		$307.64 1
10C935B LR133635
BRACKET - BATTERY CHARGER
Left Side / From: M2000001 		$89.59 1
14A298 LR142568
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2000001 / To: M2032085 		$3,558.49 1
14A298 LR161312
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2032086 / To: M2062085 		$3,558.49 1
14A298 LR162023
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: M2032086 / To: N2066958 		$3,558.49 1
14A298 LR162694
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: N2066959 		$3,438.10 1
14303 LR149113
CABLE - BATTERY NEGATIVE
Ground Wire / From: M2000001 		$216.05 1
