Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038196 FLANGED BOLT M14 X 125 $10.94 IN STOCK
Photo Part No Description Price (each) Stock
LR034277 NUT M14 $3.90 IN STOCK
Photo Part No Description Price (each) Stock
LR034227 NUT - FLANGED $6.32 IN STOCK
Photo Part No Description Price (each) Stock
LR034278 NUT $4.99 To Order
Photo Part No Description Price (each) Stock
LR161563 WASHER $24.59 To Order
Photo Part No Description Price (each) Stock
LR105451 BUMP STOP $25.10 To Order
Photo Part No Description Price (each) Stock
LR132324 PAD - ANTI-SQUEAK $48.48 To Order
Photo Part No Description Price (each) Stock
LR131214 SPRING - COIL $203.22 To Order
LR131215 SPRING - COIL $203.22 To Order
LR131216 SPRING - COIL $203.22 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR106456 PLATE - SPRING RETAINING $12.81 To Order
LR149835 PLATE - SPRING RETAINING $11.38 To Order
Photo Part No Description Price (each) Stock
LR100396 KIT - BOOT $107.29 To Order
Photo Part No Description Price (each) Stock
LR161349 BUMPER - SHOCK ABSORBER $45.67 To Order
Photo Part No Description Price (each) Stock
LR034276 SEAL - STRUT TOP $3.91 IN STOCK
Photo Part No Description Price (each) Stock
LR125895 REINFORCEMENT - SUSPENSION BRACKET $124.41 To Order
Photo Part No Description Price (each) Stock
LR145409 SHOCK ABSORBER - REAR $531.37 To Order
LR148085 SHOCK ABSORBER - REAR $531.37 To Order
Photo Part No Description Price (each) Stock
LR140228 SHOCK ABSORBER - REAR $339.47 To Order
LR140227 SHOCK ABSORBER - REAR $339.47 To Order
LR158959 SHOCK ABSORBER - REAR $328.61 To Order
View All

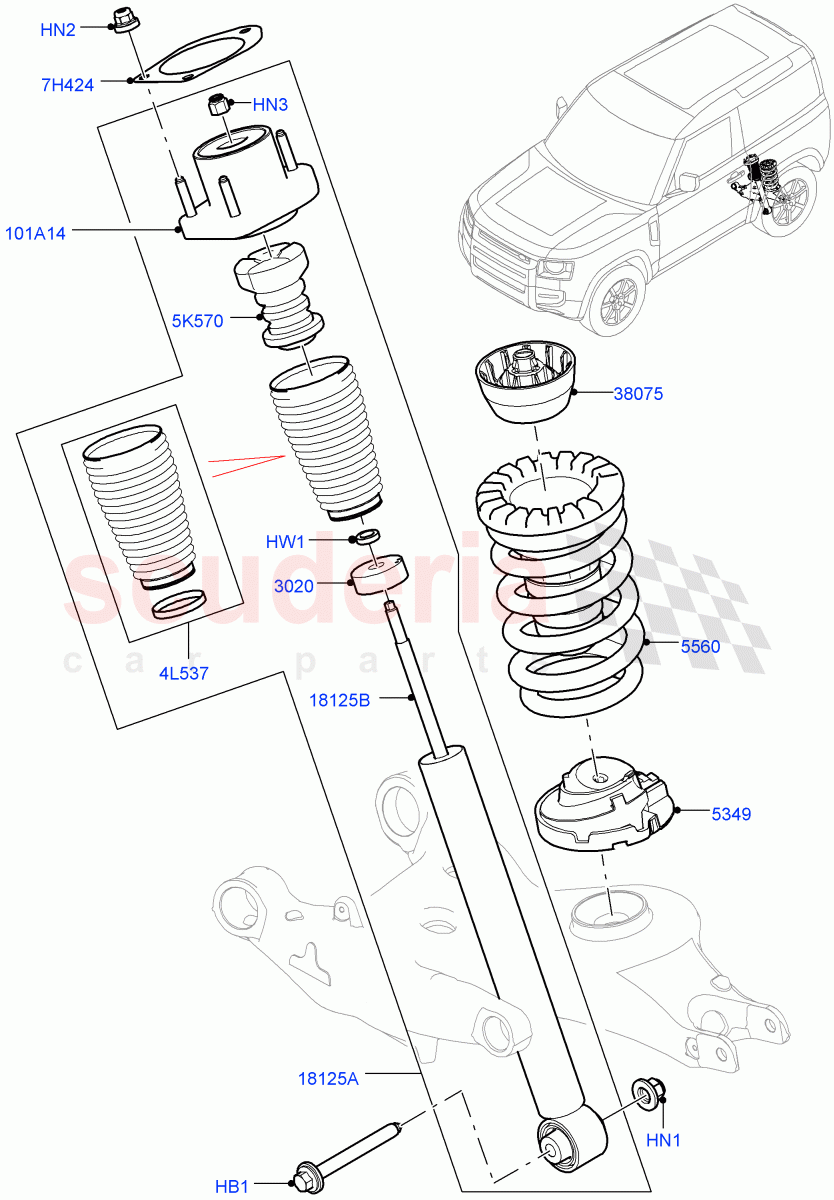

Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038196
FLANGED BOLT M14 X 125
Hexagonal Head, M14 X 125
IN STOCK 		$10.94 2
HN1 LR034277
NUT M14
M14, Nut And Washer
IN STOCK 		$3.90 2
HN2 LR034227
NUT - FLANGED
M10
IN STOCK 		$6.32 6
HN3 LR034278
NUT
M12 x 1 		$4.99 2
HW1 LR161563
WASHER
RH/LH 		$24.59 2
4L537 LR100396
KIT - BOOT
RH/LH 		$107.29 2
5K570 LR161349
BUMPER - SHOCK ABSORBER
RH/LH 		$45.67 2
7H424 LR034276
SEAL - STRUT TOP
Antisqueak, RH/LH
IN STOCK 		$3.91 2
101A14 LR125895
REINFORCEMENT - SUSPENSION BRACKET
RH/LH 		$124.41 2
3020 LR105451
BUMP STOP
RH/LH 		$25.10 2
5349 LR132324
PAD - ANTI-SQUEAK
RH/LH 		$48.48 2
5560 LR131214
SPRING - COIL
Rear Spring Load Class-A, Short Wheelbase / RH/LH / To: M2034428 		$203.22 2
5560 LR131215
SPRING - COIL
Rear Spring Load Class-B, Short Wheelbase / RH/LH / To: M2034428 		$203.22 2
5560 LR131216
SPRING - COIL
Rear Spring Load Class-C, Short Wheelbase / RH/LH / To: M2034428 		$203.22 2
5560 LR131217
SPRING - COIL
Rear Spring Load Class-D, Short Wheelbase / RH/LH / To: M2034428 		$203.22 2
5560 LR131218
SPRING - COIL
Rear Spring Load Class-E, Short Wheelbase / RH/LH / To: M2034428 		$203.22 2
5560 LR131219
SPRING - COIL
Rear Spring Load Class-A, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428 		$203.22 2
5560 LR131220
SPRING - COIL
Rear Spring Load Class-B, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428 		$203.22 2
5560 LR131221
SPRING - COIL
Rear Spring Load Class-C, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428 		$203.22 2
5560 LR131222
SPRING - COIL
Rear Spring Load Class-D, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428 		$203.22 2
5560 LR131223
SPRING - COIL
Rear Spring Load Class-E, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428 		$203.22 2
5560 LR144600
SPRING - COIL
Rear Spring Load Class-A, Short Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144601
SPRING - COIL
Rear Spring Load Class-B, Short Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144602
SPRING - COIL
Rear Spring Load Class-C, Short Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144603
SPRING - COIL
Rear Spring Load Class-D, Short Wheelbase / RH/LH / From: M2034429 		$178.27 2
5560 LR144604
SPRING - COIL
Rear Spring Load Class-E, Short Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144605
SPRING - COIL
Rear Spring Load Class-A, Standard Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144606
SPRING - COIL
Rear Spring Load Class-B, Standard Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144608
SPRING - COIL
Rear Spring Load Class-C, Standard Wheelbase / RH/LH / From: M2034429 		$203.22 2
5560 LR144609
SPRING - COIL
Rear Spring Load Class-D, Standard Wheelbase / RH/LH / From: M2034429 		$189.94 2
5560 LR144610
SPRING - COIL
Rear Spring Load Class-E, Standard Wheelbase / RH/LH / From: M2034429 		$203.22 2
18125A LR145409
SHOCK ABSORBER - REAR
RH/LH / To: M2034429 		$531.37 2
18125A LR148085
SHOCK ABSORBER - REAR
RH/LH / From: M2034430 		$531.37 2
18125B LR140228
SHOCK ABSORBER - REAR
Short Wheelbase / RH/LH / To: M2061930 		$339.47 2
18125B LR140227
SHOCK ABSORBER - REAR
Standard Wheelbase / RH/LH / To: M2061930 		$339.47 2
18125B LR158959
SHOCK ABSORBER - REAR
RH/LH / From: M2061931 		$328.61 2
38075 LR106456
PLATE - SPRING RETAINING
RH/LH / To: M2034429 		$12.81 2
38075 LR149835
PLATE - SPRING RETAINING
RH/LH / From: M2034430 		$11.38 2
