Front Cross Member & Stabilizer Bar (Crossmember)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Front Cross Member & Stabilizer Bar (Crossmember)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037935 BOLT AND WASHER - HEX.HEAD $2.39 IN STOCK
Photo Part No Description Price (each) Stock
LR038571 BOLT $3.72 To Order
Photo Part No Description Price (each) Stock
LR097372 BOLT $10.00 IN STOCK
Photo Part No Description Price (each) Stock
LR124637 BOLT $14.43 To Order
Photo Part No Description Price (each) Stock
LR132626 SCREW $10.23 To Order
Photo Part No Description Price (each) Stock
LR132624 SCREW $10.81 To Order
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR132984 INSERT - THREADED $16.59 To Order
Photo Part No Description Price (each) Stock
LR100914 SLEEVE - INSULATING $12.57 To Order
LR169865 SLEEVE - INSULATING $12.71 To Order
Photo Part No Description Price (each) Stock
LR090577 INSULATOR - BUSH TYPE $37.62 To Order
Photo Part No Description Price (each) Stock
LR129034 GUARD - RADIATOR $146.27 IN STOCK
Photo Part No Description Price (each) Stock
LR081522 DAMPER - VIBRATION $180.79 To Order
LR081523 DAMPER - VIBRATION $180.79 To Order
LR130266 DAMPER - VIBRATION $162.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR129035 FRAME $874.46 IN STOCK
LR148210 FRAME $1,918.10 To Order
LR155983 FRAME $1,856.82 To Order
...and 2 more part variants. See table on right for more details.
View All

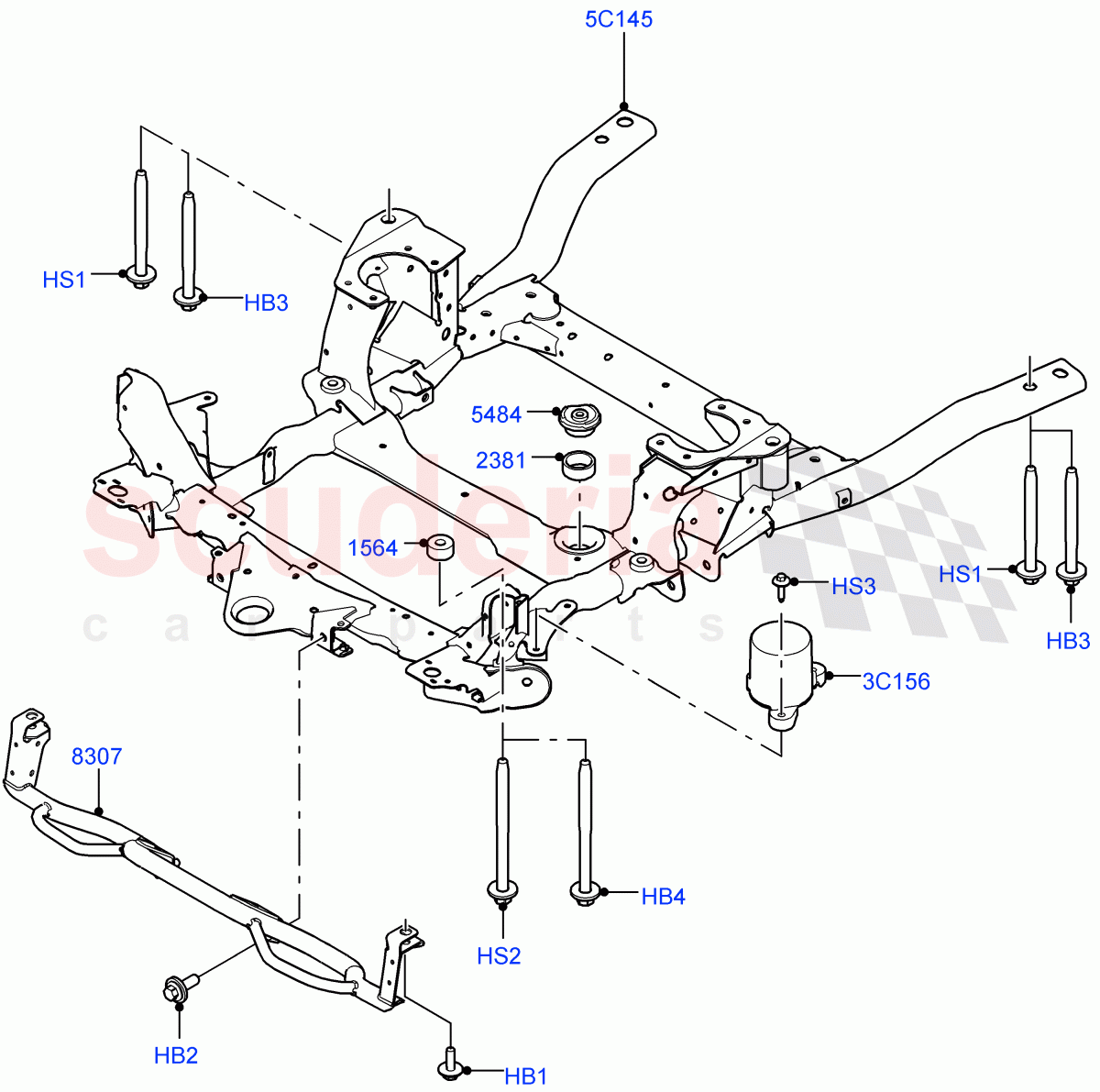

Front Cross Member & Stabilizer Bar (Crossmember) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR037935
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 X 25MM, To Body
IN STOCK 		$2.39 2
HB2 LR038571
BOLT
Hexagonal Head, M12 X 35MM 		$3.72 2
HB3 LR097372
BOLT
Hexagonal Head, M14 X 148MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt
IN STOCK 		$10.00 4
HB4 LR124637
BOLT
M14 X 200MM, Please Use When Old Fixing Is Replaced - Non Self Cutting Bolt 		$14.43 2
HS1 LR132626
SCREW
Hexagonal Head, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt 		$10.23 4
HS2 LR132624
SCREW
Hexagonal Head, M14 X 205, Please Use When Body Shell Is Replaced - Self Cutting Thread Bolt 		$10.81 2
HS3 RYG501170
SCREW AND WASHER
Hexagonal Head, M8 X 30MM 		$0.61 4
3C156 LR081522
DAMPER - VIBRATION
2.0L I4 DSL HIGH DOHC AJ200 / RH 		$180.79 1
3C156 LR081523
DAMPER - VIBRATION
2.0L I4 DSL HIGH DOHC AJ200 / LH 		$180.79 1
3C156 LR130266
DAMPER - VIBRATION
3.0L AJ20D6 Diesel High / RH / From: M2000001 		$162.22 1
3C156 LR130300
DAMPER - VIBRATION
3.0L AJ20D6 Diesel High / LH / From: M2000001 		$162.22 1
5C145 LR129035
FRAME
To: M2034429
IN STOCK 		$874.46 1
5C145 LR148210
FRAME
From: M2034430 / To: N2065110 		$1,918.10 1
5C145 LR155983
FRAME
From: N2065111 / To: N2068321 		$1,856.82 1
5C145 LR162062
FRAME
From: N2068322 / To: N2087182 		$1,743.80 1
5C145 LR166114
FRAME
From: N2087183 		$1,801.37 1
1564 LR132984
INSERT - THREADED 		$16.59 6
2381 LR100914
SLEEVE - INSULATING
To: N2087182 		$12.57 1
2381 LR169865
SLEEVE - INSULATING
From: N2087183 		$12.71 1
5484 LR090577
INSULATOR - BUSH TYPE
Differential 		$37.62 1
8307 LR129034
GUARD - RADIATOR
IN STOCK 		$146.27 1
