Name: Rear Springs And Shock Absorbers (With Four Corner Air Suspension)
Rating: 4.1 (1 reviews)

Rear Springs And Shock Absorbers (With Four Corner Air Suspension) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Rear Springs And Shock Absorbers (With Four Corner Air Suspension)

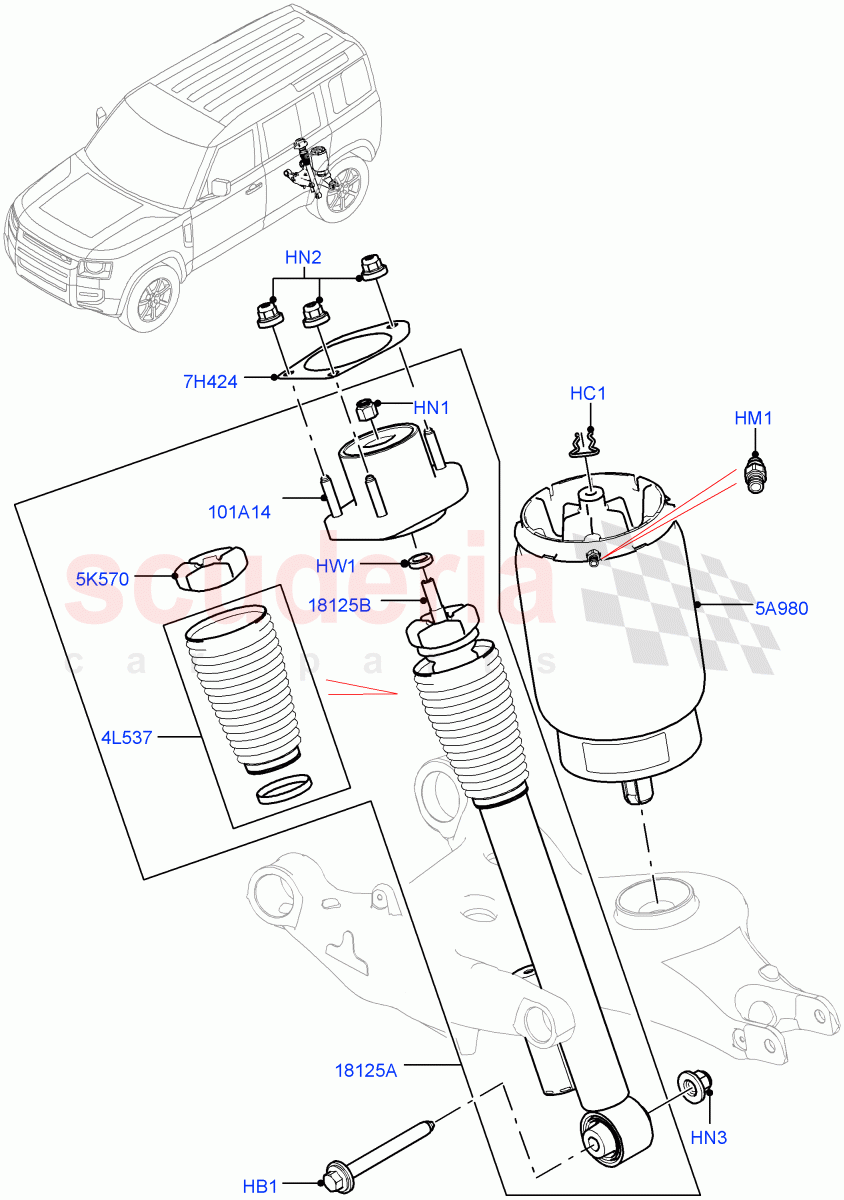

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	FLANGED BOLT M14 X 125	$10.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYC500220	CLIP	$16.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	$23.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034278	NUT	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034227	NUT - FLANGED	$6.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT M14	$3.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR161563	WASHER	$24.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041901	KIT - BOOT	$11.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132787	SPRING - AIR SUSPENSION	$553.41	To Order
	LR132965	SPRING - AIR SUSPENSION	$553.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161350	BUMPER - SHOCK ABSORBER	$46.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034276	SEAL - STRUT TOP	$3.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR140226	REINFORCEMENT - SUSPENSION BRACKET	$144.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132713	SHOCK ABSORBER - REAR	$1,167.36	To Order
	LR132722	SHOCK ABSORBER - REAR	$1,167.36	To Order
	LR132714	SHOCK ABSORBER - REAR	$1,167.36	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140240	SHOCK ABSORBER	$662.79	To Order
	LR140240	SHOCK ABSORBER	$662.79	To Order
	LR140223	SHOCK ABSORBER	$675.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR038196	FLANGED BOLT M14 X 125 IN STOCK	LR038196 FLANGED BOLT M14 X 125 Hexagonal Head, M14 X 125 IN STOCK	$10.94	2
HC1	RYC500220	CLIP IN STOCK	RYC500220 CLIP Air Spring IN STOCK	$16.81	2
HM1	LR044836	CONNECTOR - VALVE BLOCK TO PIPE IN STOCK	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Connector IN STOCK	$23.83	2
HN1	LR034278	NUT	LR034278 NUT M12 x 1	$4.99	2
HN2	LR034227	NUT - FLANGED IN STOCK	LR034227 NUT - FLANGED M10 IN STOCK	$6.32	6
HN3	LR034277	NUT M14 IN STOCK	LR034277 NUT M14 M14, Nut And Washer IN STOCK	$3.90	2
HW1	LR161563	WASHER	LR161563 WASHER RH/LH	$24.59	2
4L537	LR041901	KIT - BOOT IN STOCK	LR041901 KIT - BOOT Includes Boot And Clip IN STOCK	$11.13	2
5A980	LR132787	SPRING - AIR SUSPENSION	LR132787 SPRING - AIR SUSPENSION Standard Wheelbase / RH	$553.41	1
5A980	LR132965	SPRING - AIR SUSPENSION	LR132965 SPRING - AIR SUSPENSION Short Wheelbase / LH	$553.41	1
5K570	LR161350	BUMPER - SHOCK ABSORBER	LR161350 BUMPER - SHOCK ABSORBER RH/LH, Shock Absorber	$46.93	2
7H424	LR034276	SEAL - STRUT TOP IN STOCK	LR034276 SEAL - STRUT TOP Antisqueak, RH/LH IN STOCK	$3.91	2
101A14	LR140226	REINFORCEMENT - SUSPENSION BRACKET	LR140226 REINFORCEMENT - SUSPENSION BRACKET RH/LH, Shock Absorber	$144.11	2
18125A	LR132713	SHOCK ABSORBER - REAR	LR132713 SHOCK ABSORBER - REAR Electric Engine Battery-MHEV, Standard Wheelbase / RH / To: L2000583	$1,167.36	1
18125A	LR132722	SHOCK ABSORBER - REAR	LR132722 SHOCK ABSORBER - REAR Electric Engine Battery-MHEV, Standard Wheelbase / LH / To: L2000583	$1,167.36	1
18125A	LR132714	SHOCK ABSORBER - REAR	LR132714 SHOCK ABSORBER - REAR Short Wheelbase / RH / To: L2000583	$1,167.36	1
18125A	LR132724	SHOCK ABSORBER - REAR	LR132724 SHOCK ABSORBER - REAR Short Wheelbase / LH / To: L2000583	$1,167.36	1
18125A	LR140075	SHOCK ABSORBER - REAR	LR140075 SHOCK ABSORBER - REAR Electric Engine Battery-MHEV / RH / From: L2000584	$1,167.36	1
18125A	LR140076	SHOCK ABSORBER - REAR	LR140076 SHOCK ABSORBER - REAR Less Electric Engine Battery / LH / From: L2000584	$1,167.36	1
18125A	LR132726	SHOCK ABSORBER - REAR	LR132726 SHOCK ABSORBER - REAR Electric Engine Battery-PHEV, Standard Wheelbase / LH	$1,056.45	1
18125A	LR132717	SHOCK ABSORBER - REAR	LR132717 SHOCK ABSORBER - REAR Electric Engine Battery-PHEV, Standard Wheelbase / RH	$1,167.36	1
18125A	LR174032	Shock Absorber	LR174032 Shock Absorber Long Wheelbase / RH / From: P2000001	$1,144.49	1
18125A	LR174033	Shock Absorber	LR174033 Shock Absorber Long Wheelbase / LH / From: P2000001	$1,144.49	1
18125B	LR140240	SHOCK ABSORBER	LR140240 SHOCK ABSORBER Electric Engine Battery-PHEV, Standard Wheelbase / Less Reinforcement, Seal And Nut, RH/LH	$662.79	2
18125B	LR140240	SHOCK ABSORBER	LR140240 SHOCK ABSORBER Long Wheelbase / Less Reinforcement, Seal And Nut, RH/LH / From: P2000001	$662.79	2
18125B	LR140223	SHOCK ABSORBER	LR140223 SHOCK ABSORBER Electric Engine Battery-MHEV, Standard Wheelbase / Less Reinforcement, Seal And Nut, RH/LH	$675.99	2
