Air Suspension Compressor And Lines (Short Wheelbase, With Four Corner Air Suspension)

Land Rover Defender (2020+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Air Suspension Compressor And Lines (Short Wheelbase, With Four Corner Air Suspension)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037084 CLIP - HOSE $1.17 To Order
Photo Part No Description Price (each) Stock
LR037085 CLIP - DOUBLE $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR149652 SCREW AND WASHER $1.78 To Order
Photo Part No Description Price (each) Stock
LR129131 TUBE - AIR SUSPENSION $42.14 To Order
Photo Part No Description Price (each) Stock
LR129135 TUBE - AIR SUSPENSION $136.05 To Order
Photo Part No Description Price (each) Stock
LR129137 TUBE - AIR SUSPENSION $162.77 To Order
LR146819 TUBE - AIR SUSPENSION $162.77 To Order
Photo Part No Description Price (each) Stock
LR129145 TUBE - AIR SUSPENSION $156.40 To Order
Photo Part No Description Price (each) Stock
LR132032 TUBE - AIR SUSPENSION $156.40 To Order
LR146825 TUBE - AIR SUSPENSION $156.40 To Order
Photo Part No Description Price (each) Stock
LR129150 TANK - AIR SUSPENSION $340.02 To Order
LR166463 TANK - AIR SUSPENSION $355.99 To Order
Photo Part No Description Price (each) Stock
LR129149 TANK - AIR SUSPENSION $340.02 To Order
View All

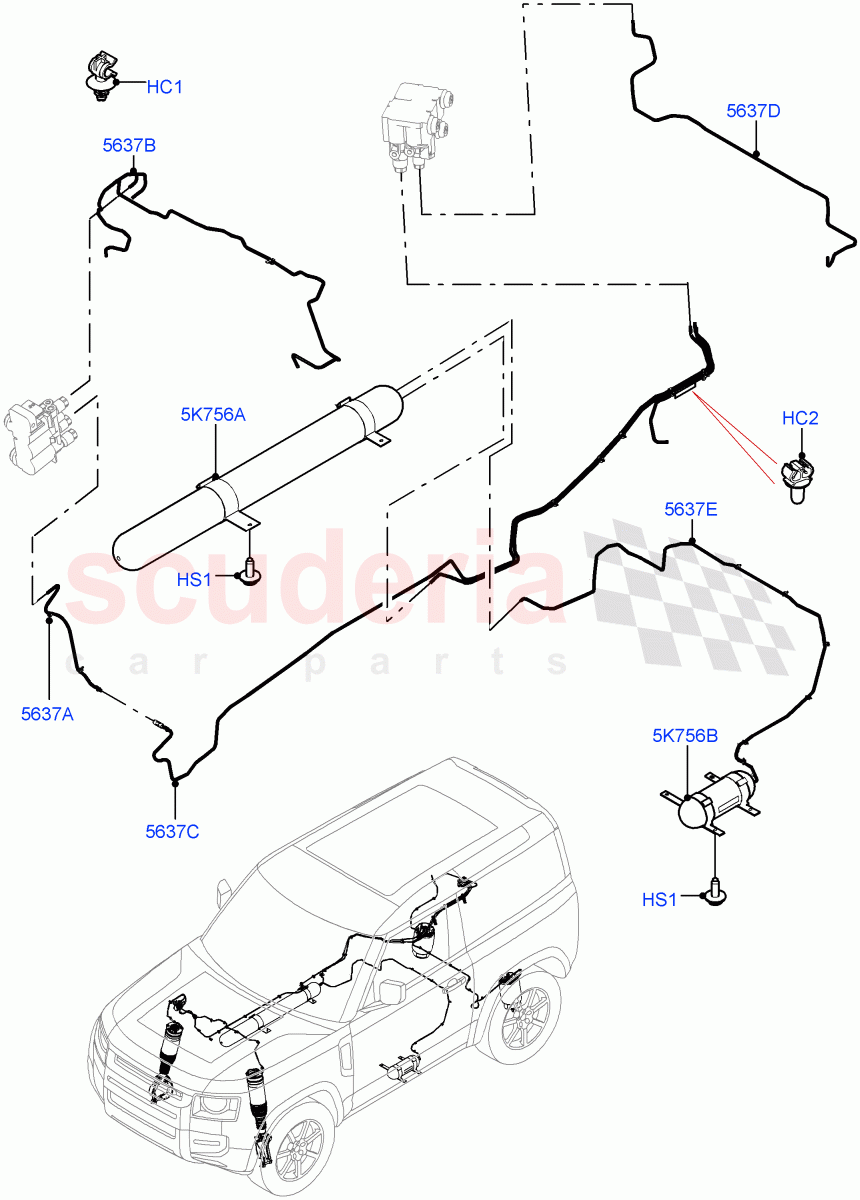

Air Suspension Compressor And Lines (Short Wheelbase, With Four Corner Air Suspension) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR037084
CLIP - HOSE
6MM, Single 		$1.17 -
HC2 LR037085
CLIP - DOUBLE
6MM, Double
IN STOCK 		$1.11 2
HS1 LR149652
SCREW AND WASHER
M8 X 22MM 		$1.78 8
5K756A LR129150
TANK - AIR SUSPENSION
RH, Long / To: N2999999 		$340.02 1
5K756A LR166463
TANK - AIR SUSPENSION
RH, Long / From: P2000001 		$355.99 1
5K756B LR129149
TANK - AIR SUSPENSION
LH, Short 		$340.02 1
5637A LR129131
TUBE - AIR SUSPENSION
Rear Axle Valve To Front Axle Valve 		$42.14 1
5637B LR129135
TUBE - AIR SUSPENSION
Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces 		$136.05 1
5637C LR129137
TUBE - AIR SUSPENSION
Axle Valve To Rear RH Spring, Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 3 Pieces / To: M2034808 		$162.77 1
5637C LR146819
TUBE - AIR SUSPENSION
Axle Valve To Rear RH Spring, Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 3 Pieces / From: M2034809 		$162.77 1
5637D LR129145
TUBE - AIR SUSPENSION
Axle Valve To Rear LH Spring 		$156.40 1
5637E LR132032
TUBE - AIR SUSPENSION
Air Tanks Connection / To: M2034808 		$156.40 1
5637E LR146825
TUBE - AIR SUSPENSION
Air Tanks Connection / From: M2034809 		$156.40 1
