Fuel Lines (Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200, Fuel Tank-Diesel)

Land Rover Defender (2020+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106206 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR125292 FILTER - FUEL - PRIMARY $95.27 To Order
Photo Part No Description Price (each) Stock
LR125289 BRACKET - FUEL FILTER $44.22 To Order
Photo Part No Description Price (each) Stock
LR125290 TUBE - FUEL $54.32 To Order
Photo Part No Description Price (each) Stock
LR131488 TUBE - FUEL $73.21 To Order
Photo Part No Description Price (each) Stock
LR087240 PIPE - FUEL $82.46 To Order
Photo Part No Description Price (each) Stock
LR087239 BRACKET - FUEL TUBE SUPPORT $15.86 To Order
Photo Part No Description Price (each) Stock
LR082269 PIPE - FUEL $72.53 To Order
Photo Part No Description Price (each) Stock
LR131494 TUBE - FUEL FILTER TO FUEL PUMP $136.00 To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL $38.49 To Order
Photo Part No Description Price (each) Stock
LR129646 PIPE - FUEL $166.00 To Order
Photo Part No Description Price (each) Stock
LR087241 PIPE - FUEL $131.21 To Order
Photo Part No Description Price (each) Stock
LR132674 TUBE - FUEL SUPPLY $273.36 To Order
LR128368 TUBE - FUEL SUPPLY AND VAPOUR $273.36 To Order
LR144563 TUBE - FUEL SUPPLY $273.36 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR125301 FILTER - FUEL - PRIMARY $230.76 To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER $11.05 To Order
View All

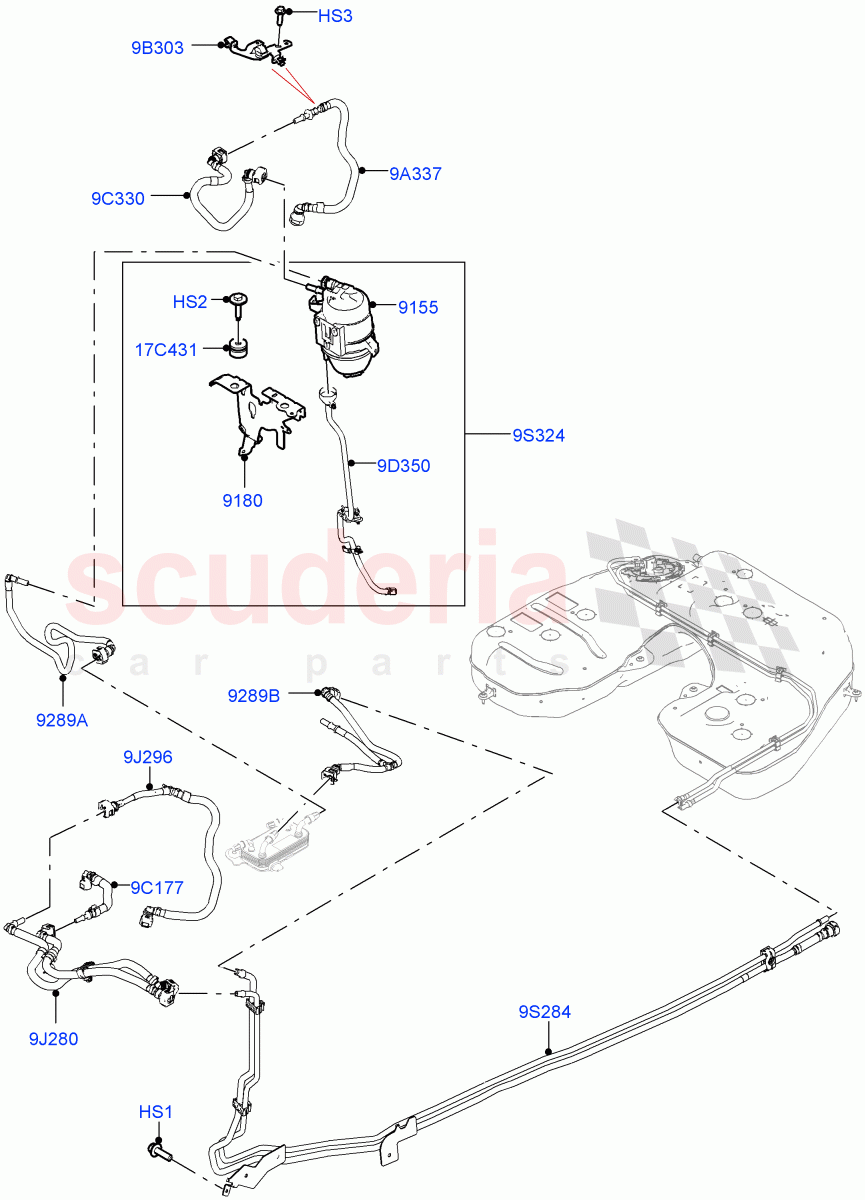

Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$0.96 2
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		$4.21 2
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM 		$2.31 2
9A337 LR087240
PIPE - FUEL
To Fuel Pump 		$82.46 1
9B303 LR087239
BRACKET - FUEL TUBE SUPPORT 		$15.86 1
9C177 LR082269
PIPE - FUEL
Engine 		$72.53 1
9C330 LR131494
TUBE - FUEL FILTER TO FUEL PUMP
To Fuel Filter 		$136.00 1
9D350 LR082765
TUBE - FUEL
Drain 		$38.49 1
9J280 LR129646
PIPE - FUEL 		$166.00 1
9J296 LR087241
PIPE - FUEL
Fuel Pump 		$131.21 1
9S284 LR132674
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / To: M2028919 		$273.36 1
9S284 LR128368
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / To: M2028919 		$273.36 1
9S284 LR144563
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / From: M2028920 / To: M2034428 		$273.36 1
9S284 LR144564
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / From: M2028920 / To: M2034428 		$273.36 1
9S284 LR149356
TUBE - FUEL SUPPLY
Standard Wheelbase / Rear / From: M2034429 		$278.42 1
9S284 LR149357
TUBE - FUEL SUPPLY AND VAPOUR
Short Wheelbase / Rear / From: M2034429 		$264.13 1
9S324 LR125301
FILTER - FUEL - PRIMARY
Assembly 		$230.76 1
17C431 LR081530
GROMMET - FUEL FILTER 		$11.05 2
9155 LR125292
FILTER - FUEL - PRIMARY
With Bracket 		$95.27 1
9180 LR125289
BRACKET - FUEL FILTER 		$44.22 1
9289A LR125290
TUBE - FUEL
Fuel Cooler To Filter Tube 		$54.32 1
9289B LR131488
TUBE - FUEL
From Fuel Cooler 		$73.21 1
