Name: Fuel Lines (Nitra Plant Build, Dirty Fuel Markets - BRIC) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel With Filters)
Rating: 4.6 (1 reviews)

Fuel Lines (Nitra Plant Build, Dirty Fuel Markets - BRIC) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel With Filters) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Fuel Lines (Nitra Plant Build, Dirty Fuel Markets - BRIC) (2.0L I4 DSL HIGH DOHC AJ200, Fuel...

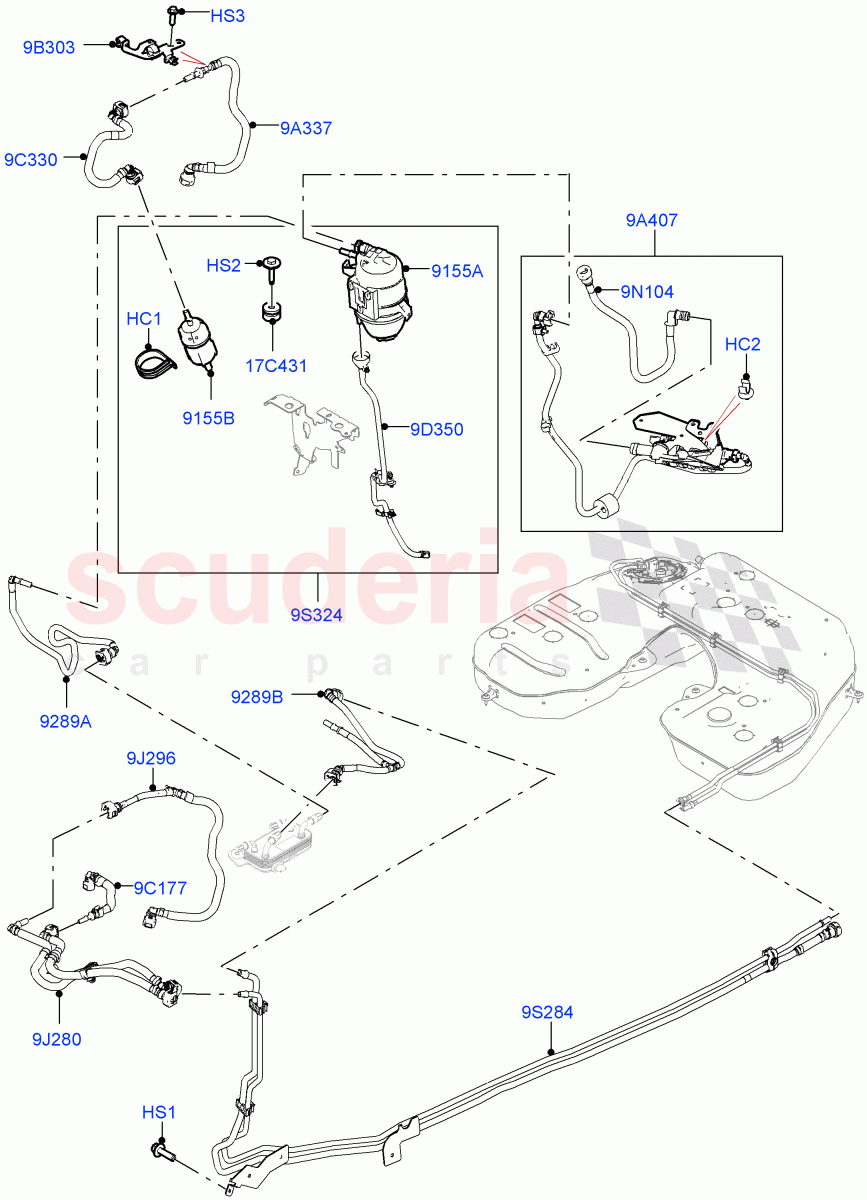

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105597	CLIP	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125292	FILTER - FUEL - PRIMARY	$95.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101802	FILTER - FUEL	$99.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125290	TUBE - FUEL	$54.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131488	TUBE - FUEL	$73.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087240	PIPE - FUEL	$82.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131496	FUEL PUMP AND FILTER	$466.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	$15.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082269	PIPE - FUEL	$72.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131495	TUBE - FUEL FILTER TO FUEL PUMP	$140.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082765	TUBE - FUEL	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129646	PIPE - FUEL	$166.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087241	PIPE - FUEL	$131.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113714	TUBE - FUEL FILTER TO FUEL PUMP	$147.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132674	TUBE - FUEL SUPPLY	$273.36	To Order
	LR128368	TUBE - FUEL SUPPLY AND VAPOUR	$273.36	To Order
	LR144563	TUBE - FUEL SUPPLY	$273.36	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133083	FILTER - FUEL	$300.97	To Order
	LR165693	FILTER - FUEL	$300.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	$11.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR105597	CLIP	LR105597 CLIP	$5.94	1
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	$1.69	1
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$0.96	2
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.21	2
HS3	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.31	2
9A337	LR087240	PIPE - FUEL	LR087240 PIPE - FUEL To Fuel Pump	$82.46	1
9A407	LR131496	FUEL PUMP AND FILTER	LR131496 FUEL PUMP AND FILTER Assembly	$466.15	1
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT	$15.86	1
9C177	LR082269	PIPE - FUEL	LR082269 PIPE - FUEL Engine	$72.53	1
9C330	LR131495	TUBE - FUEL FILTER TO FUEL PUMP	LR131495 TUBE - FUEL FILTER TO FUEL PUMP To Fuel Filter	$140.77	1
9D350	LR082765	TUBE - FUEL	LR082765 TUBE - FUEL Drain	$38.49	1
9J280	LR129646	PIPE - FUEL	LR129646 PIPE - FUEL Front	$166.00	1
9J296	LR087241	PIPE - FUEL	LR087241 PIPE - FUEL Fuel Pump	$131.21	1
9N104	LR113714	TUBE - FUEL FILTER TO FUEL PUMP	LR113714 TUBE - FUEL FILTER TO FUEL PUMP	$147.77	1
9S284	LR132674	TUBE - FUEL SUPPLY	LR132674 TUBE - FUEL SUPPLY Standard Wheelbase / Rear / To: M2028919	$273.36	1
9S284	LR128368	TUBE - FUEL SUPPLY AND VAPOUR	LR128368 TUBE - FUEL SUPPLY AND VAPOUR Short Wheelbase / Rear / To: M2028919	$273.36	1
9S284	LR144563	TUBE - FUEL SUPPLY	LR144563 TUBE - FUEL SUPPLY Standard Wheelbase / Rear / From: M2028920 / To: M2034428	$273.36	1
9S284	LR144564	TUBE - FUEL SUPPLY AND VAPOUR	LR144564 TUBE - FUEL SUPPLY AND VAPOUR Short Wheelbase / Rear / From: M2028920 / To: M2034428	$273.36	1
9S284	LR149356	TUBE - FUEL SUPPLY	LR149356 TUBE - FUEL SUPPLY Standard Wheelbase / Rear / From: M2034429	$278.42	1
9S284	LR149357	TUBE - FUEL SUPPLY AND VAPOUR	LR149357 TUBE - FUEL SUPPLY AND VAPOUR Short Wheelbase / Rear / From: M2034429	$264.13	1
9S324	LR133083	FILTER - FUEL	LR133083 FILTER - FUEL Assembly / To: N2104910	$300.97	1
9S324	LR165693	FILTER - FUEL	LR165693 FILTER - FUEL Assembly / From: N2104911	$300.15	1
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER	$11.05	2
9155A	LR125292	FILTER - FUEL - PRIMARY	LR125292 FILTER - FUEL - PRIMARY Main, With Bracket	$95.27	1
9155B	LR101802	FILTER - FUEL	LR101802 FILTER - FUEL Auxiliary	$99.60	1
9289A	LR125290	TUBE - FUEL	LR125290 TUBE - FUEL Fuel Cooler To Filter Tube	$54.32	1
9289B	LR131488	TUBE - FUEL	LR131488 TUBE - FUEL From Fuel Cooler	$73.21	1
