Steering Gear (Front) (Lhd)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Steering Gear (Front) (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033536 BOLT $5.34 To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.92 IN STOCK
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED $2.30 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR132825 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR162107 JOINT - BALL $120.10 To Order
Photo Part No Description Price (each) Stock
LR059267 KIT - BOOT $77.81 To Order
Photo Part No Description Price (each) Stock
LR147440 GEAR - STEERING $3,549.76 To Order
Photo Part No Description Price (each) Stock
LR148483 CLAMP - BOOT $5.55 To Order
Photo Part No Description Price (each) Stock
LR129168 ROD - SPINDLE CONNECTING $179.61 IN STOCK
Photo Part No Description Price (each) Stock
LR059274 NUT - ADJUSTING $2.90 To Order
Photo Part No Description Price (each) Stock
LR146995 CLIP - WIRING $1.37 To Order
Photo Part No Description Price (each) Stock
LR159857 Bracket $44.70 To Order
Photo Part No Description Price (each) Stock
LR159859 Bracket $44.70 To Order
Photo Part No Description Price (each) Stock
LR159855 Bracket $44.70 To Order
Photo Part No Description Price (each) Stock
LR159856 Bracket $44.70 To Order
Photo Part No Description Price (each) Stock
LR158304 WIRING - POWER STEERING $65.74 To Order
LR158305 WIRING - POWER STEERING $68.02 To Order
LR158306 WIRING - POWER STEERING $66.82 To Order
...and 3 more part variants. See table on right for more details.
View All

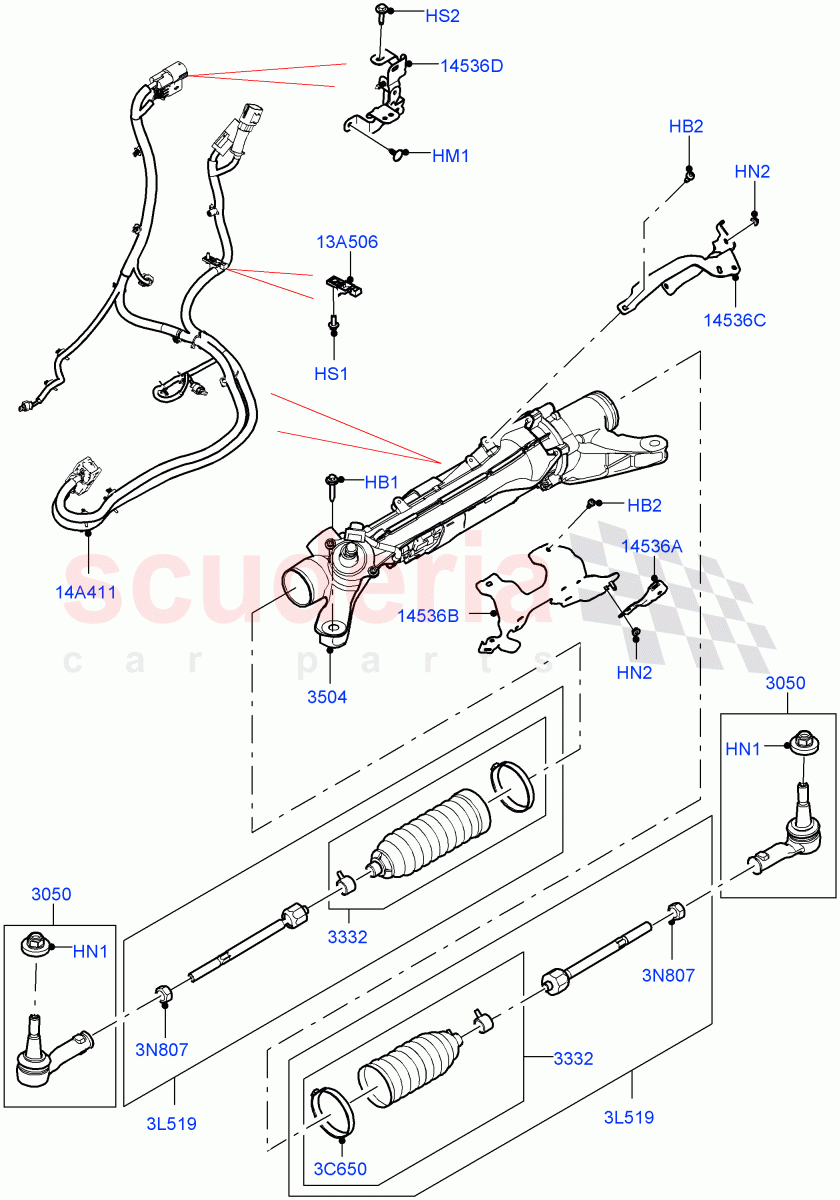

Steering Gear (Front) (LHD) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033536
BOLT
Hexagonal Head, M14 x 70MM 		$5.34 2
HB2 XYG500160
BOLT
M6 x 12MM, Torx
IN STOCK 		$0.92 4
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin
IN STOCK 		$1.05 2
HN1 LR026275
NUT - FLANGED
M14 		$2.30 2
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 2
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 1
HS2 LR132825
SCREW
Hexagonal Head, M6 X 25MM 		$0.97 1
3C650 LR148483
CLAMP - BOOT
RH/LH 		$5.55 2
3L519 LR129168
ROD - SPINDLE CONNECTING
RH/LH
IN STOCK 		$179.61 2
3N807 LR059274
NUT - ADJUSTING
M16, RH/LH 		$2.90 2
13A506 LR146995
CLIP - WIRING 		$1.37 1
14A411 LR158304
WIRING - POWER STEERING
3.0L AJ20D6 Diesel High, Drive Line Disconnect 		$65.74 1
14A411 LR158305
WIRING - POWER STEERING
4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, With Extra Engine Cooling System 		$68.02 1
14A411 LR158306
WIRING - POWER STEERING
4.4 V8 Turbo Petrol (NC10), Drive Line Disconnect, Less Engine Cooling System 		$66.82 1
14A411 LR168650
WIRING - POWER STEERING
3.0L AJ20P6 Petrol High, Drive Line Disconnect 		$168.28 1
14A411 LR168651
WIRING - POWER STEERING
3.0L AJ20P6 Petrol High, Less Driveline 		$69.41 1
14A411 LR158312
WIRING - POWER STEERING
3.0L AJ20P6 Petrol PHEV, Drive Line Disconnect 		$70.63 1
3050 LR162107
JOINT - BALL
RH/LH 		$120.10 2
3332 LR059267
KIT - BOOT
RH/LH, With Clamps 		$77.81 2
3504 LR147440
GEAR - STEERING 		$3,549.76 1
14536A LR159857
Bracket
RH Rear 		$44.70 1
14536B LR159859
Bracket
Center Rear 		$44.70 1
14536C LR159855
Bracket
Front, Wire 		$44.70 1
14536D LR159856
Bracket
Upper, Wire 		$44.70 1
