Front Brake Pipes (Lhd)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Brake Pipes (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033441 CLIP - SPECIAL $4.49 To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE $0.61 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR157385 CONNECTOR - BRAKE TUBE $19.06 To Order
Photo Part No Description Price (each) Stock
LR153820 HOSE - BRAKE $74.70 To Order
Photo Part No Description Price (each) Stock
LR153821 HOSE - BRAKE $74.70 To Order
Photo Part No Description Price (each) Stock
LR153818 TUBE - BRAKE $76.61 To Order
LR174218 Tube - Brake $75.41 To Order
Photo Part No Description Price (each) Stock
LR153819 TUBE - BRAKE $53.70 To Order
LR174217 TUBE - BRAKE $52.88 To Order
Photo Part No Description Price (each) Stock
LR153811 PIPE - BRAKE $53.98 To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.48 IN STOCK
View All

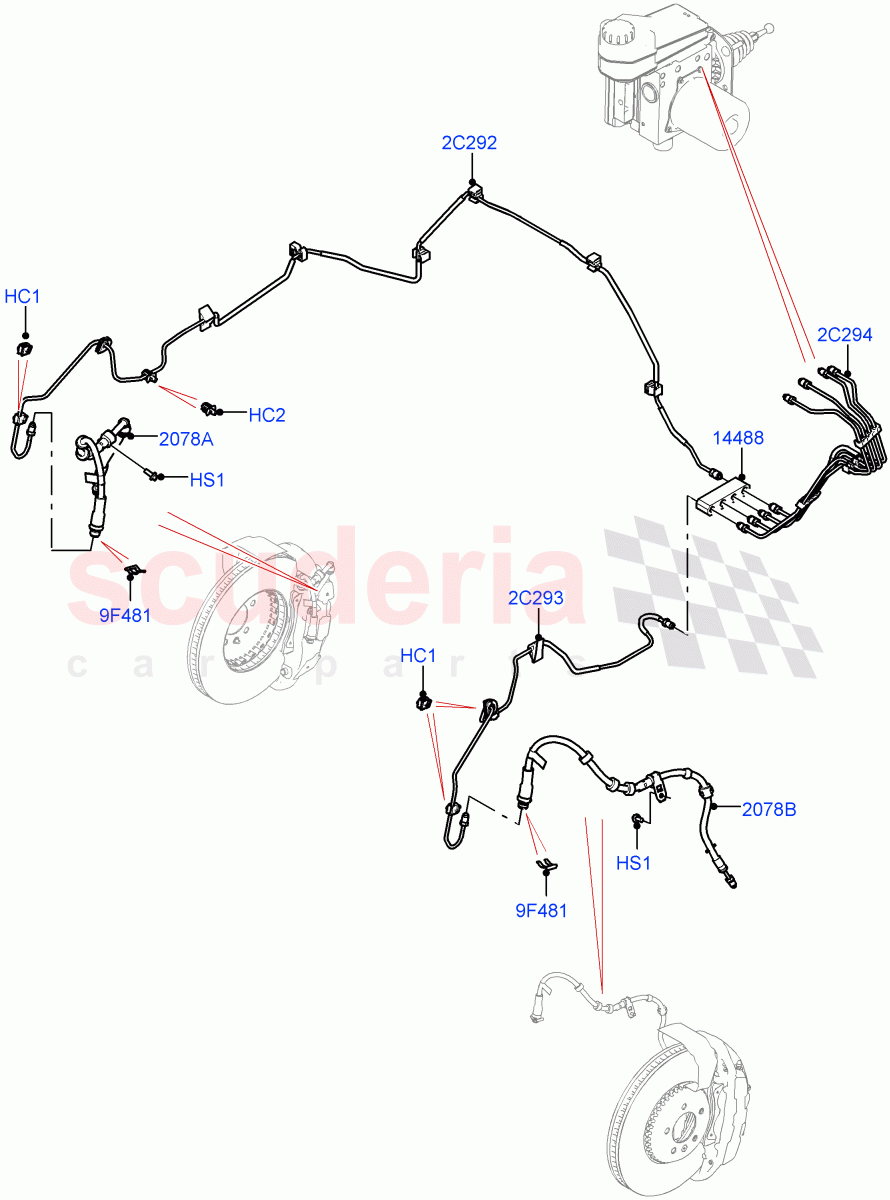

Front Brake Pipes (LHD) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR033441
CLIP - SPECIAL
5MM, Single 		$4.49 3
HC2 LR113126
CLIP - BRAKE PIPE
4.75X8X0.8-4, Single 		$0.61 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.24 2
2C292 LR153818
TUBE - BRAKE
to RH Flexible Hose / To: NA000675 		$76.61 1
2C292 LR174218
Tube - Brake
to RH Flexible Hose / From: NA000676 		$75.41 1
2C293 LR153819
TUBE - BRAKE
to LH Flexible Hose / To: NA000675 		$53.70 1
2C293 LR174217
TUBE - BRAKE
to LH Flexible Hose / From: NA000676 		$52.88 1
2C294 LR153811
PIPE - BRAKE
Brake Pump to Manifold 		$53.98 1
9F481 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.48 2
2078A LR153820
HOSE - BRAKE
RH 		$74.70 1
2078B LR153821
HOSE - BRAKE
LH 		$74.70 1
14488 LR157385
CONNECTOR - BRAKE TUBE
4 Way Connection 		$19.06 1
