Find Your Part

View All

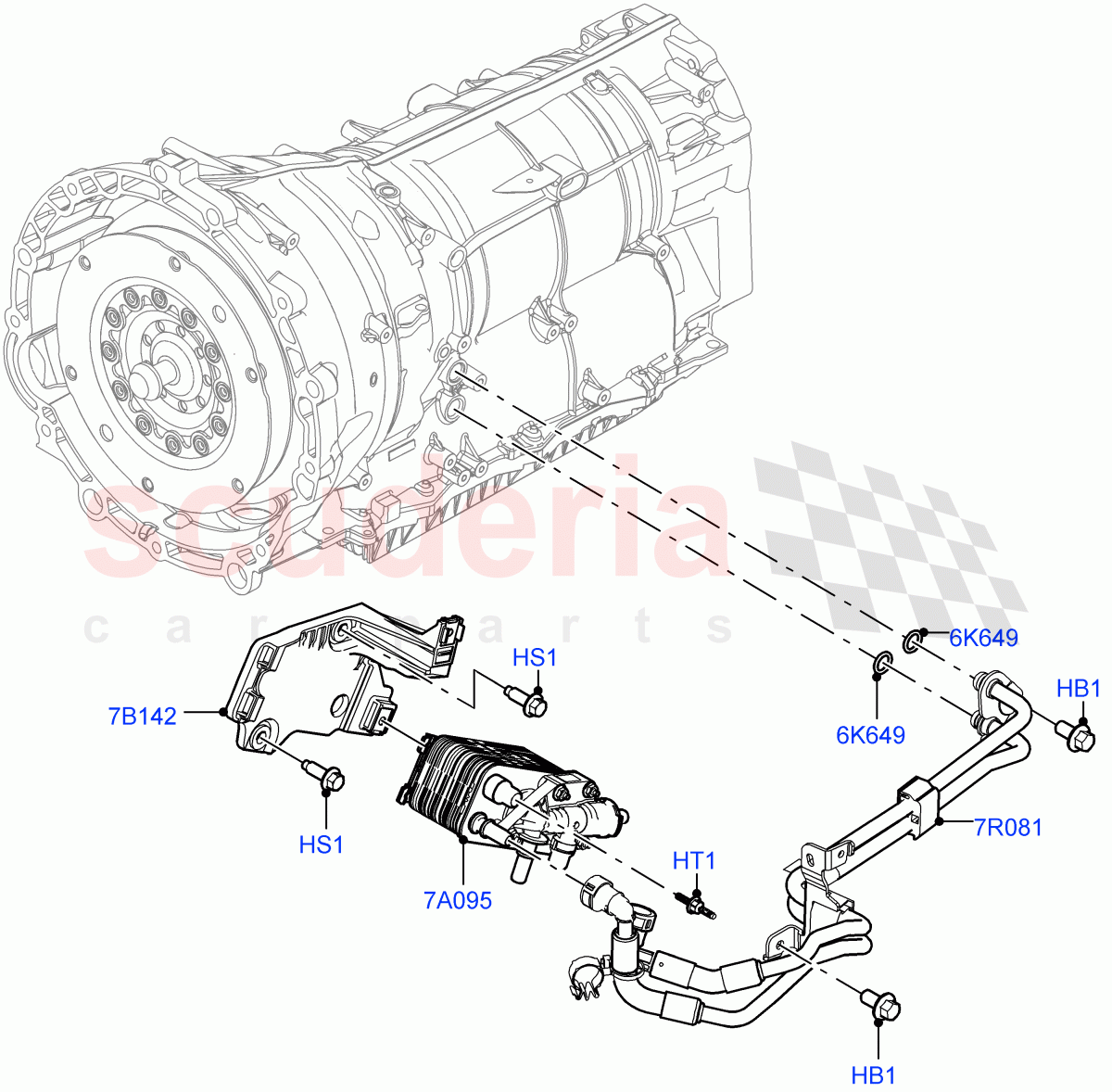

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	$2.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071705	STUD	$4.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163157	O-RING	$6.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141636	OIL COOLER	$248.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152246	BRACKET	$25.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152249	TUBE - OIL COOLER	$213.84	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM, To Transmission IN STOCK	$0.67	2
HS1	RYG500270	SCREW	RYG500270 SCREW Bracket, Hexagonal Head, M10 X 25MM	$2.80	2
HT1	LR071705	STUD	LR071705 STUD M6 X 20 + M6 X 16, Oil Cooler	$4.09	1
6K649	LR163157	O-RING	LR163157 O-RING Tube - Transmission Oil Cooler	$6.81	2
7A095	LR141636	OIL COOLER	LR141636 OIL COOLER 3.0L AJ20P6 Petrol High	$248.30	1
7B142	LR152246	BRACKET	LR152246 BRACKET Oil Cooler	$25.65	1
7R081	LR152249	TUBE - OIL COOLER	LR152249 TUBE - OIL COOLER 3.0L AJ20D6 Diesel High	$213.84	1
