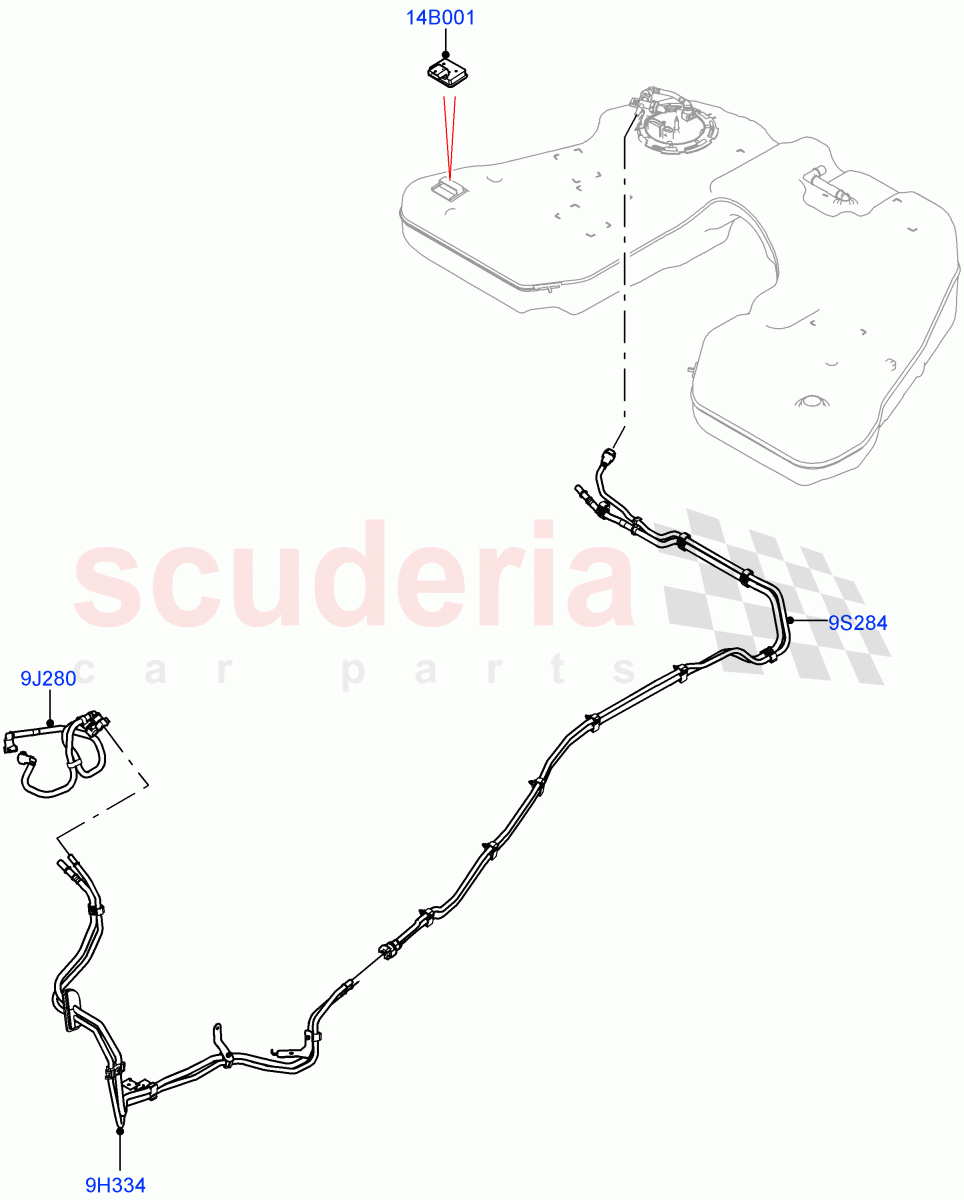

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR152331	TUBE - FUEL SUPPLY	$300.83	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152395	MODULE-CONTROL	$365.83	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
9H334	LR152331	TUBE - FUEL SUPPLY	LR152331 TUBE - FUEL SUPPLY Middle	$300.83	1
9J280	LR152523	TUBE - FUEL SUPPLY AND VAPOUR	LR152523 TUBE - FUEL SUPPLY AND VAPOUR Front / To: NA000684	$221.14	1
9J280	LR174145	Pipe - Fuel	LR174145 Pipe - Fuel Front / From: NA000685	$211.42	1
9S284	LR162012	TUBE - FUEL SUPPLY AND VAPOUR	LR162012 TUBE - FUEL SUPPLY AND VAPOUR Standard Wheelbase / Rear / To: NA999999	$347.19	1
9S284	LR162013	TUBE - FUEL SUPPLY AND VAPOUR	LR162013 TUBE - FUEL SUPPLY AND VAPOUR Long Wheelbase / Rear / To: NA999999	$358.98	1
9S284	LR175080	Tube - Fuel Supply And Vapour	LR175080 Tube - Fuel Supply And Vapour Standard Wheelbase / Rear / From: PA000001	$331.95	1
9S284	LR175179	Tube - Fuel Supply And Vapour	LR175179 Tube - Fuel Supply And Vapour Long Wheelbase / Rear / From: PA000001	$341.89	1
14B001	LR152395	MODULE-CONTROL	LR152395 MODULE-CONTROL Natural Vacuum Leak Detection	$365.83	1
