Name: Front Exhaust System (4.4 V8 Turbo Petrol (NC10))
Rating: 5.0 (1 reviews)

Front Exhaust System (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Exhaust System (4.4 V8 Turbo Petrol (NC10))

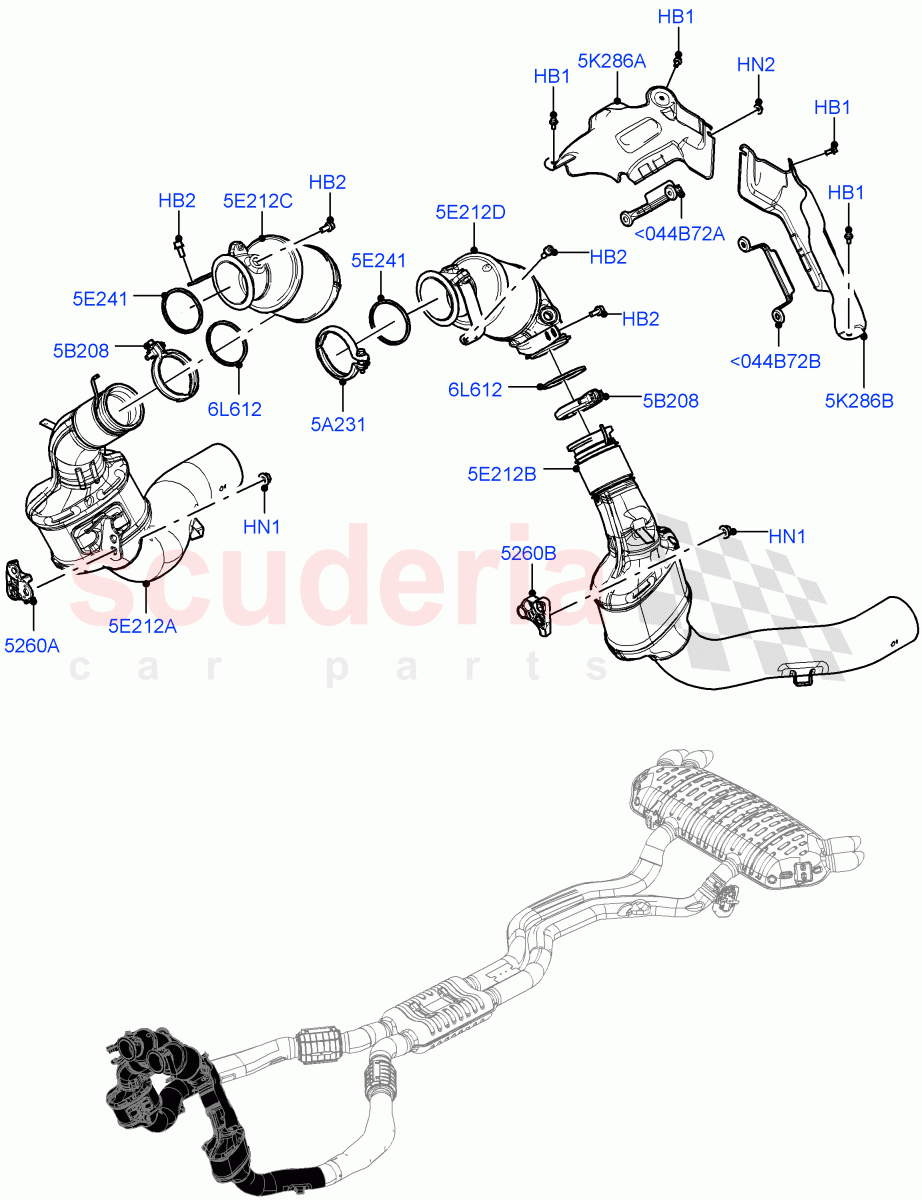

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158576	BOLT	$2.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092764	NUT - FLANGED	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094188	NUT AND WASHER - HEX.	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152437	BRACKET - EXHAUST PIPE MOUNTING	$24.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152438	BRACKET - EXHAUST PIPE MOUNTING	$24.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158277	CLAMP - EXHAUST	$44.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152486	CLAMP - EXHAUST	$46.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158577	GASKET	$29.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152485	GASKET	$19.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152435	CATALYTIC CONVERTER	$2,263.17	To Order
	LR152463	CATALYTIC CONVERTER	$2,930.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152436	CATALYTIC CONVERTER	$2,196.46	To Order
	LR152467	CATALYTIC CONVERTER	$2,930.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159151	CATALYTIC CONVERTER	$3,171.00	To Order
	LR159153	CATALYTIC CONVERTER	$2,868.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159152	CATALYTIC CONVERTER	$3,171.00	To Order
	LR159154	CATALYTIC CONVERTER	$2,868.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152289	HEAT SHIELD	$49.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152290	HEAT SHIELD	$51.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154245	BRACKET - SUPPORT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154246	BRACKET - SUPPORT	$13.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<044B72A	LR154245	BRACKET - SUPPORT	LR154245 BRACKET - SUPPORT RH, Support	$13.14	1
<044B72B	LR154246	BRACKET - SUPPORT	LR154246 BRACKET - SUPPORT LH, Support	$13.16	1
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD Heatshield, M6 X 14MM	$2.77	4
HB2	LR158576	BOLT	LR158576 BOLT Catalyst	$2.99	8
HN1	LR092764	NUT - FLANGED	LR092764 NUT - FLANGED M8, Mounting Bracket	$3.68	4
HN2	LR094188	NUT AND WASHER - HEX.	LR094188 NUT AND WASHER - HEX. Heatshield, Hexagonal Head, M6, Nut And Washer	$1.64	1
5A231	LR158277	CLAMP - EXHAUST	LR158277 CLAMP - EXHAUST Turbocharger Outlet	$44.94	2
5B208	LR152486	CLAMP - EXHAUST	LR152486 CLAMP - EXHAUST	$46.96	2
5E212A	LR152435	CATALYTIC CONVERTER	LR152435 CATALYTIC CONVERTER L7 Emission - Brazil / RH Lower	$2,263.17	1
5E212A	LR152463	CATALYTIC CONVERTER	LR152463 CATALYTIC CONVERTER Beijing 6 Petrol Emission / RH Lower	$2,930.95	1
5E212B	LR152436	CATALYTIC CONVERTER	LR152436 CATALYTIC CONVERTER EU2 / LH Lower	$2,196.46	1
5E212B	LR152467	CATALYTIC CONVERTER	LR152467 CATALYTIC CONVERTER Beijing 6 Petrol Emission / LH Lower	$2,930.95	1
5E212C	LR159151	CATALYTIC CONVERTER	LR159151 CATALYTIC CONVERTER Beijing 6 Petrol Emission / RH Upper	$3,171.00	1
5E212C	LR159153	CATALYTIC CONVERTER	LR159153 CATALYTIC CONVERTER L7 Emission - Brazil / RH Upper	$2,868.37	1
5E212D	LR159152	CATALYTIC CONVERTER	LR159152 CATALYTIC CONVERTER EU6D - Final (Petrol) Emission / LH Upper	$3,171.00	1
5E212D	LR159154	CATALYTIC CONVERTER	LR159154 CATALYTIC CONVERTER EU2 / LH Upper	$2,868.37	1
5E241	LR158577	GASKET	LR158577 GASKET	$29.48	2
5K286A	LR152289	HEAT SHIELD	LR152289 HEAT SHIELD RH	$49.13	1
5K286B	LR152290	HEAT SHIELD	LR152290 HEAT SHIELD LH	$51.35	1
6L612	LR152485	GASKET	LR152485 GASKET Catalyst, O 92MM	$19.04	2
5260A	LR152437	BRACKET - EXHAUST PIPE MOUNTING	LR152437 BRACKET - EXHAUST PIPE MOUNTING RH	$24.72	1
5260B	LR152438	BRACKET - EXHAUST PIPE MOUNTING	LR152438 BRACKET - EXHAUST PIPE MOUNTING LH	$24.72	1

Front Exhaust System (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Front Exhaust System (4.4 V8 Turbo Petrol (NC10))
