Name: Oil Cooler And Filter (4.4 V8 Turbo Petrol (NC10))
Rating: 4.0 (1 reviews)

View All

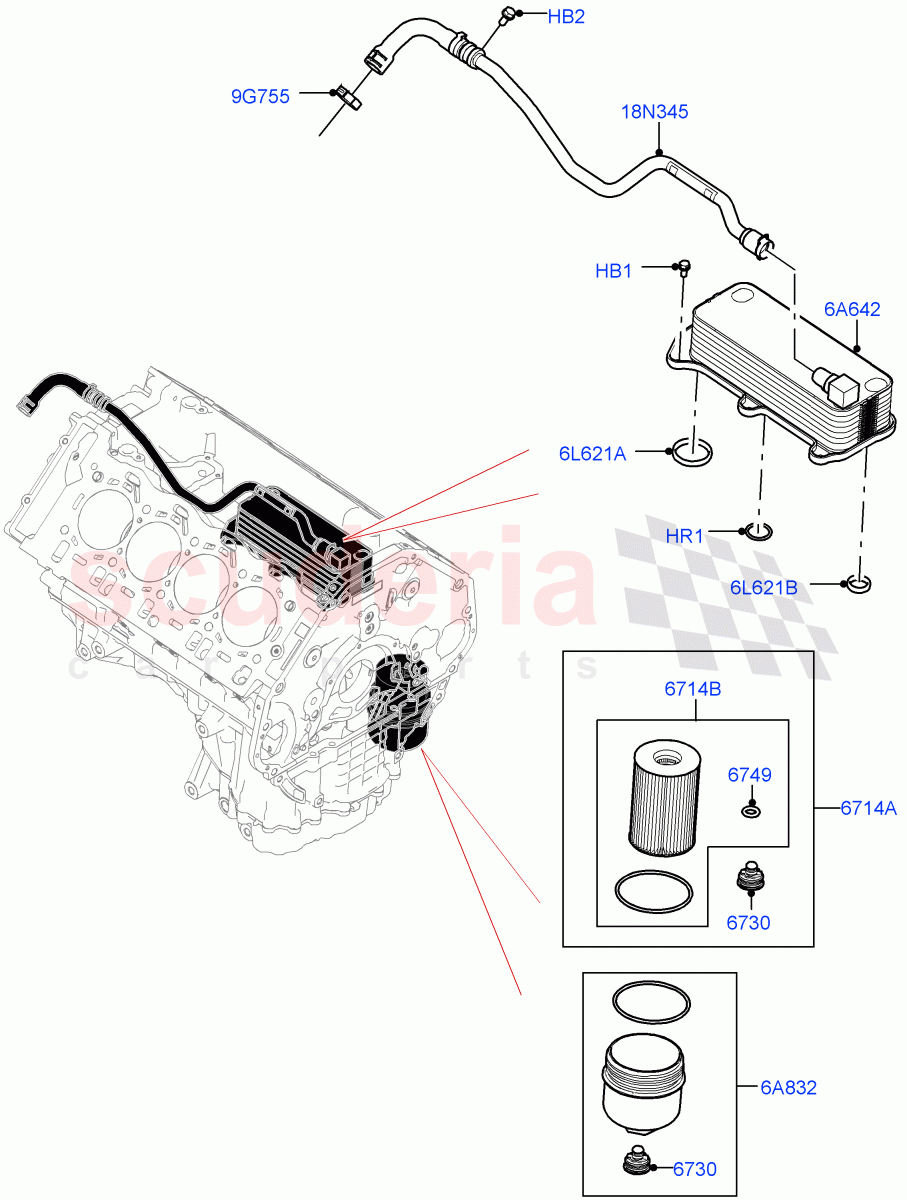

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158272	BOLT AND WASHER - HEX.HEAD	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158328	BOLT AND WASHER - HEX.HEAD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158319	RING - SEALING	$6.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174142	PLUG - OIL DRAIN	$10.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158316	SEAL	$5.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174141	KIT - ELEMENT & GASKET - OIL FILTER	$49.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158363	KIT - ELEMENT & GASKET - OIL FILTER	$43.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158733	OIL COOLER	$321.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174143	Cover	$80.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159335	CLAMP - HOSE	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159297	HOSE - OIL COOLER	$110.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158569	GASKET	$59.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158571	GASKET	$59.27	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158272	BOLT AND WASHER - HEX.HEAD	LR158272 BOLT AND WASHER - HEX.HEAD M6 x 14mm	$3.13	6
HB2	LR158328	BOLT AND WASHER - HEX.HEAD	LR158328 BOLT AND WASHER - HEX.HEAD Hose, M6 x 14mm	$2.16	1
HR1	LR158319	RING - SEALING	LR158319 RING - SEALING	$6.85	1
6A642	LR158733	OIL COOLER	LR158733 OIL COOLER	$321.09	1
6A832	LR174143	Cover	LR174143 Cover Element And Seal, Includes Oil Cover Drain Plug	$80.79	1
6L621A	LR158569	GASKET	LR158569 GASKET Oil Cooler, Supply	$59.27	1
6L621B	LR158571	GASKET	LR158571 GASKET Oil Cooler, Return	$59.27	1
9G755	LR159335	CLAMP - HOSE	LR159335 CLAMP - HOSE	$5.12	1
18N345	LR159297	HOSE - OIL COOLER	LR159297 HOSE - OIL COOLER	$110.10	1
6714A	LR174141	KIT - ELEMENT & GASKET - OIL FILTER	LR174141 KIT - ELEMENT & GASKET - OIL FILTER Includes Oil Cover Drain Plug, Includes Oil Sump Plug Washer	$49.56	1
6714B	LR158363	KIT - ELEMENT & GASKET - OIL FILTER	LR158363 KIT - ELEMENT & GASKET - OIL FILTER Element And Seal, Includes Oil Sump Plug Washer, Please Order Drain Plug LR174142 As Well	$43.88	1
6730	LR174142	PLUG - OIL DRAIN	LR174142 PLUG - OIL DRAIN Cover - Oil Filter	$10.90	1
6749	LR158316	SEAL	LR158316 SEAL	$5.00	1

Oil Cooler And Filter (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]
