Cylinder Head Cover (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cylinder Head Cover (4.4 V8 Turbo Petrol (NC10))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158547 SCREW $2.36 To Order
Photo Part No Description Price (each) Stock
LR158568 BOLT $1.43 To Order
Photo Part No Description Price (each) Stock
LR170335 CLIP $14.67 To Order
Photo Part No Description Price (each) Stock
LR159006 O-RING $13.69 To Order
Photo Part No Description Price (each) Stock
LR158317 RING - SEALING $6.73 To Order
Photo Part No Description Price (each) Stock
LR158998 O-RING $6.36 To Order
Photo Part No Description Price (each) Stock
LR158541 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
LR158526 SCREW $1.67 To Order
Photo Part No Description Price (each) Stock
LR158524 SCREW $1.07 To Order
LR158524 SCREW $1.07 To Order
Photo Part No Description Price (each) Stock
LR163185 RETAINER $8.64 To Order
Photo Part No Description Price (each) Stock
LR158757 PIPE - OIL INLET $45.10 To Order
Photo Part No Description Price (each) Stock
LR158756 CAP - OIL FILLER $49.71 To Order
Photo Part No Description Price (each) Stock
LR158945 PLATE - BLANKING $127.14 To Order
Photo Part No Description Price (each) Stock
LR158562 GASKET $15.46 To Order
Photo Part No Description Price (each) Stock
LR159309 COVER - CYLINDER HEAD $614.43 To Order
Photo Part No Description Price (each) Stock
LR159310 COVER - CYLINDER HEAD $706.61 To Order
Photo Part No Description Price (each) Stock
LR158770 GASKET - CYLINDER HEAD COVER $63.99 To Order
Photo Part No Description Price (each) Stock
LR158769 GASKET - CYLINDER HEAD COVER $63.99 To Order
Photo Part No Description Price (each) Stock
LR158318 SOLENOID - ENGINE VARIABLE TIMING $185.41 To Order
Photo Part No Description Price (each) Stock
LR158730 SENSOR - CRANKCASE PRESSURE $134.71 To Order
Photo Part No Description Price (each) Stock
LR159333 SENSOR - CAMSHAFT POSITION $182.46 To Order
View All

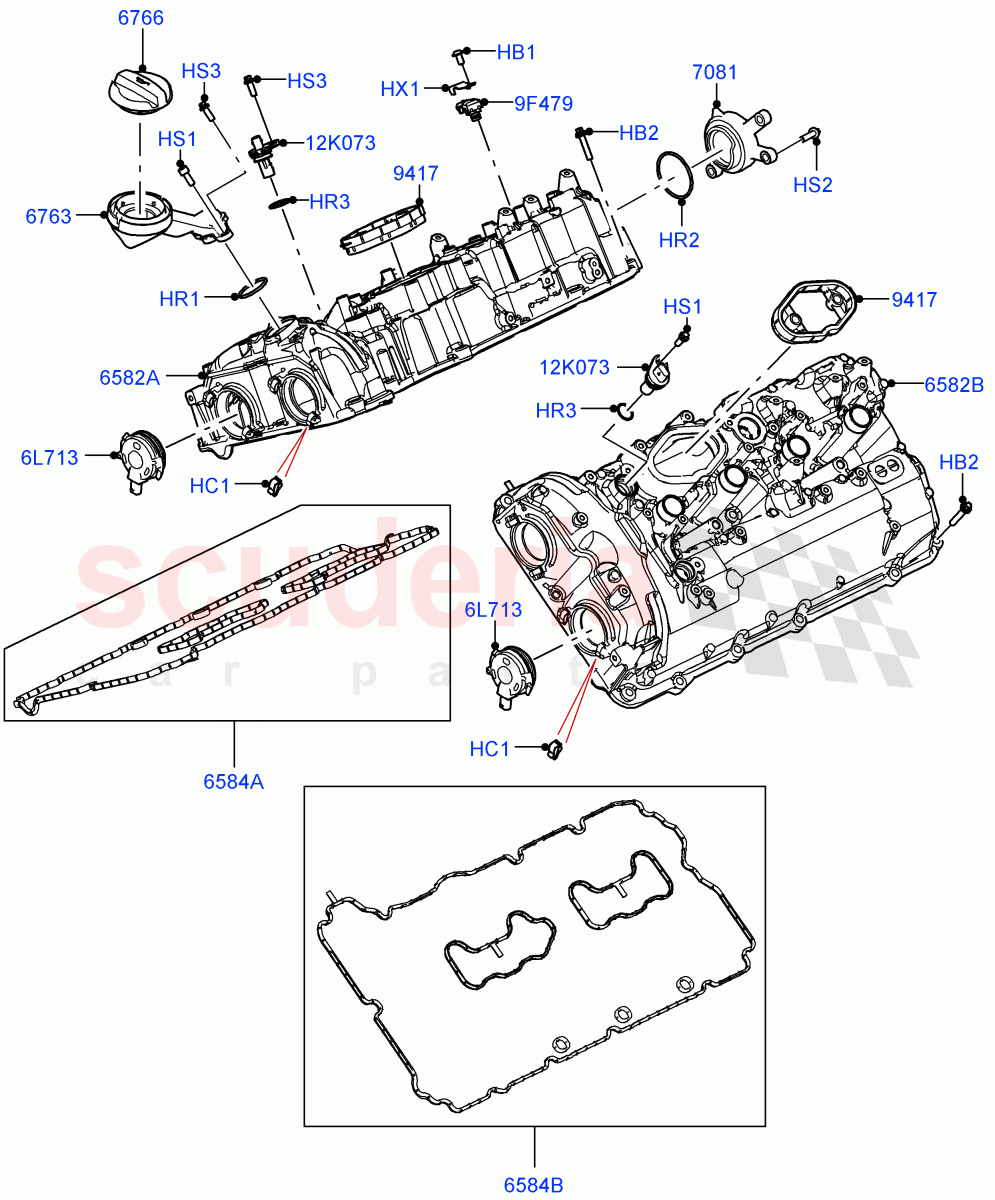

Cylinder Head Cover (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158547
SCREW
M6 x 12MM, Pressure Sensor 		$2.36 1
HB2 LR158568
BOLT
Camshaft Cover, M6 x 30MM 		$1.43 34
HC1 LR170335
CLIP
Solenoid - Engine Variable Timing 		$14.67 8
HR1 LR159006
O-RING
31.4 mm x 2.6 mm, Filler Neck 		$13.69 1
HR2 LR158317
RING - SEALING 		$6.73 1
HR3 LR158998
O-RING
18.2 x 2.5 mm, Camshaft Position Sensor 		$6.36 4
HS1 LR158541
SCREW
Filler Neck, M6 X 16 		$1.00 1
HS2 LR158526
SCREW
M6 x 25MM, Plate - Blanking 		$1.67 3
HS3 LR158524
SCREW
External Torx Head, Filler Neck, M6 X 16 		$1.07 1
HS3 LR158524
SCREW
Camshaft Position Sensor, External Torx Head, M6 X 16 		$1.07 4
HX1 LR163185
RETAINER
Pressure Sensor 		$8.64 1
6L713 LR158318
SOLENOID - ENGINE VARIABLE TIMING 		$185.41 4
9F479 LR158730
SENSOR - CRANKCASE PRESSURE
Pressure 		$134.71 1
12K073 LR159333
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor 		$182.46 4
6582A LR159309
COVER - CYLINDER HEAD
RH Cylinder Bank 		$614.43 1
6582B LR159310
COVER - CYLINDER HEAD
LH Cylinder Bank 		$706.61 1
6584A LR158770
GASKET - CYLINDER HEAD COVER
Camshaft Cover, RH Cylinder Bank 		$63.99 1
6584B LR158769
GASKET - CYLINDER HEAD COVER
Camshaft Cover, LH Cylinder Bank 		$63.99 1
6763 LR158757
PIPE - OIL INLET 		$45.10 1
6766 LR158756
CAP - OIL FILLER 		$49.71 1
7081 LR158945
PLATE - BLANKING
Pump - Vacuum 		$127.14 1
9417 LR158562
GASKET
High Pressure Pump 		$15.46 2
