Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (Nc10), With Standard Engine Cooling System)

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Find Your Part

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (NC10), With Standard Engine Cooling System)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR158565 BOLT - HEX.HEAD $1.43 To Order
Photo Part No Description Price (each) Stock
LR159035 SCREW $4.31 To Order
Photo Part No Description Price (each) Stock
LR158557 CLAMP - HOSE $5.13 To Order
Photo Part No Description Price (each) Stock
LR175782 Clip $1.00 To Order
Photo Part No Description Price (each) Stock
LR175725 Plug $21.79 To Order
Photo Part No Description Price (each) Stock
LR175726 Plug $7.26 To Order
Photo Part No Description Price (each) Stock
LR175788 O-Ring $0.83 To Order
Photo Part No Description Price (each) Stock
LR175790 O-Ring $1.67 To Order
Photo Part No Description Price (each) Stock
LR151573 HOSE - WATER $118.44 To Order
Photo Part No Description Price (each) Stock
LR151633 HOSE - RADIATOR $87.39 To Order
Photo Part No Description Price (each) Stock
LR159963 PLUG - BLANKING $6.08 To Order
Photo Part No Description Price (each) Stock
LR151548 HOSE - WATER $65.91 To Order
Photo Part No Description Price (each) Stock
LR151702 HOSE - WATER $86.50 To Order
Photo Part No Description Price (each) Stock
LR151716 HOSE - WATER $70.07 To Order
Photo Part No Description Price (each) Stock
LR151599 HOSE - RADIATOR $76.57 To Order
Photo Part No Description Price (each) Stock
LR151698 HOSE - RADIATOR $80.45 To Order
Photo Part No Description Price (each) Stock
LR159337 HOSE - HEATER WATER $126.38 To Order
Photo Part No Description Price (each) Stock
104123780 HOSE - RADIATOR TO ENG. VENT ELBOW $126.18 To Order
Photo Part No Description Price (each) Stock
LR151681 HOSE - WATER $79.26 To Order
Photo Part No Description Price (each) Stock
LR151680 HOSE - WATER $79.57 To Order
Photo Part No Description Price (each) Stock
LR151672 HOSE - WATER $84.67 To Order
LR174584 Hose - Water $80.96 To Order
Photo Part No Description Price (each) Stock
LR151679 HOSE - WATER $63.11 To Order
Photo Part No Description Price (each) Stock
LR174028 HOSE - COOLANT BLEED $49.75 To Order
Photo Part No Description Price (each) Stock
LR159336 HOSE - WATER $120.31 To Order
Photo Part No Description Price (each) Stock
LR159854 TUBE $64.74 To Order
Photo Part No Description Price (each) Stock
LR151664 HOSE - WATER $93.58 To Order
LR174583 Hose $89.47 IN STOCK
Photo Part No Description Price (each) Stock
LR151665 HOSE - WATER $107.85 To Order
Photo Part No Description Price (each) Stock
LR151528 TUBE - HEATER WATER $90.87 To Order
Photo Part No Description Price (each) Stock
LR151825 HOSE - WATER $77.44 To Order
View All

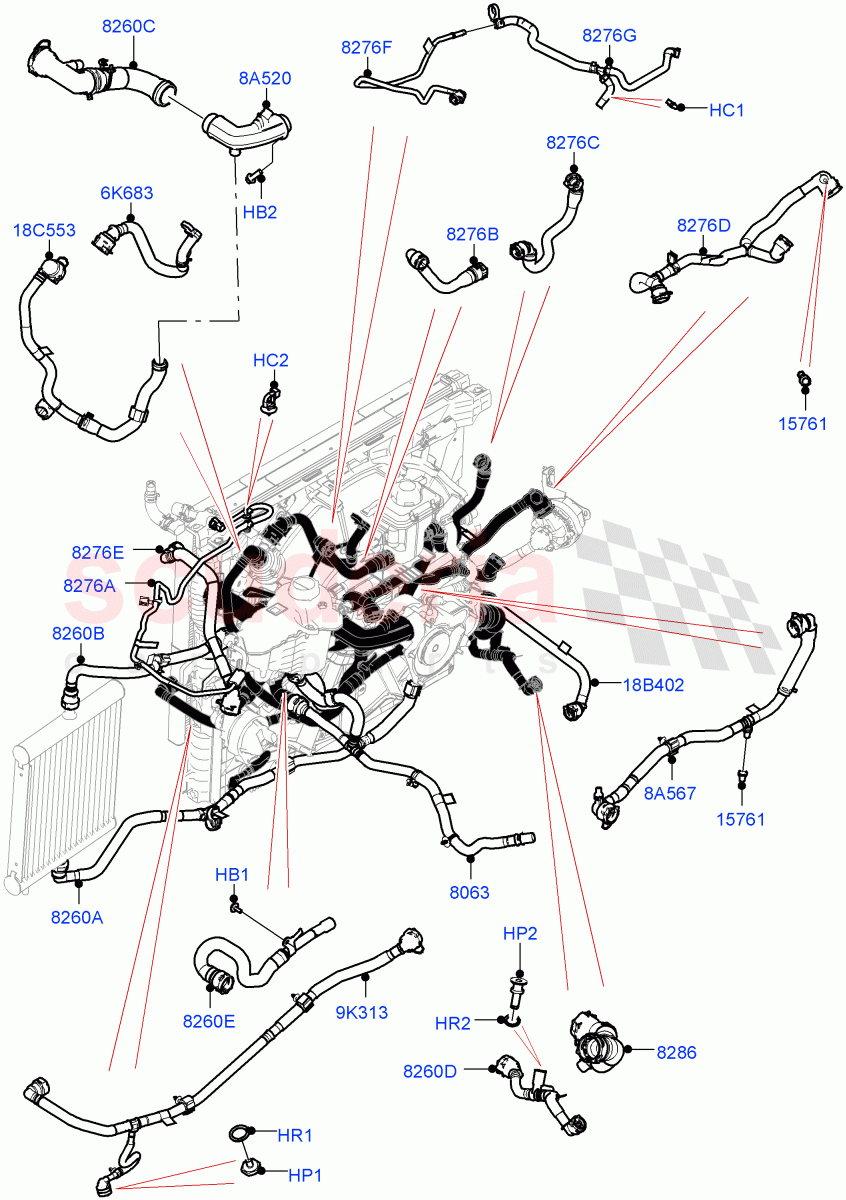

Cooling System Pipes And Hoses (4.4 V8 Turbo Petrol (NC10), With Standard Engine Cooling System) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR158565
BOLT - HEX.HEAD
M6 X 18mm 		$1.43 1
HB2 LR159035
SCREW
M6 		$4.31 1
HC1 LR158557
CLAMP - HOSE
From Engine To Expansion Tank 		$5.13 2
HC2 LR175782
Clip
Single 		$1.00 2
HP1 LR175725
Plug
Hose, Inlet, Plastic, Water Pump 		$21.79 1
HP2 LR175726
Plug
RH, Bottom, Hose, Radiator 		$7.26 1
HR1 LR175788
O-Ring
Plug, Sealing Ring 		$0.83 1
HR2 LR175790
O-Ring
Sealing Ring, Water Outlet 		$1.67 1
6K683 LR151548
HOSE - WATER
Attaches To Water Pump, RH Upper 		$65.91 1
8A520 LR159854
TUBE
To Water Pump 		$64.74 1
8A567 LR151664
HOSE - WATER
Expansion Tank To Pump / To: NA999999 		$93.58 1
8A567 LR174583
Hose
Expansion Tank To Pump / From: PA000001
IN STOCK 		$89.47 1
9K313 LR151665
HOSE - WATER
Inlet, Water Pump 		$107.85 1
18B402 LR151528
TUBE - HEATER WATER
Attaches To Water Pump, Heater 		$90.87 1
18C553 LR151825
HOSE - WATER
Attaches To Water Pump, LH Upper 		$77.44 1
8063 LR151573
HOSE - WATER
From Engine To Expansion Tank 		$118.44 1
8260A LR151702
HOSE - WATER
Auxiliary Radiator, Bottom 		$86.50 1
8260B LR151716
HOSE - WATER
Auxiliary Radiator, Upper 		$70.07 1
8260C LR151599
HOSE - RADIATOR
Radiator, Top 		$76.57 1
8260D LR151698
HOSE - RADIATOR
RH, Bottom, Radiator 		$80.45 1
8260E LR159337
HOSE - HEATER WATER
Heater, Return 		$126.38 1
8276A 104123780
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator To Expansion Tank Bleed 		$126.18 1
8276B LR151681
HOSE - WATER
LH, Expansion Tank 		$79.26 1
8276C LR151680
HOSE - WATER
RH, Expansion Tank 		$79.57 1
8276D LR151672
HOSE - WATER
Attaches To Water Pump, Intercooler Inlet / To: NA999999 		$84.67 1
8276D LR174584
Hose - Water
Attaches To Water Pump, Intercooler Inlet / From: PA000001 		$80.96 1
8276E LR151679
HOSE - WATER
From Radiator To Water Pump, Intercooler Outlet 		$63.11 1
8276F LR174028
HOSE - COOLANT BLEED
Front, To Expansion Tank, Ventilation Tube 		$49.75 1
8276G LR159336
HOSE - WATER
From Engine To Expansion Tank 		$120.31 1
8286 LR151633
HOSE - RADIATOR
Radiator To Thermostat 		$87.39 1
15761 LR159963
PLUG - BLANKING 		$6.08 4
