Name: Cylinder Head (Related Parts) (4.4 V8 Turbo Petrol (NC10))
Rating: 5.0 (1 reviews)

Cylinder Head (Related Parts) (4.4 V8 Turbo Petrol (NC10)) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cylinder Head (Related Parts) (4.4 V8 Turbo Petrol (NC10))

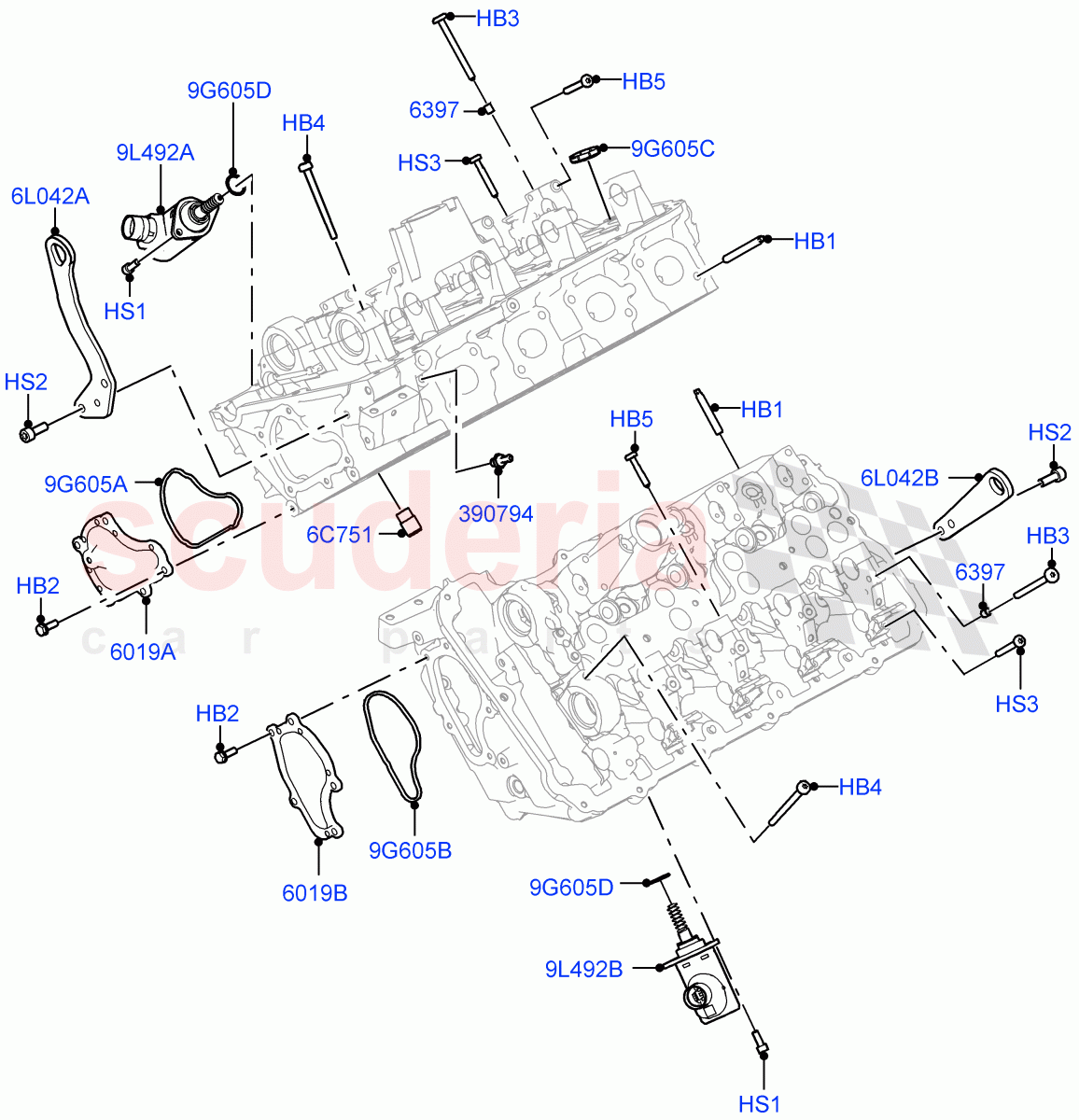

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR158703	STUD	$7.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158275	BOLT AND WASHER - HEX.HEAD	$2.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158534	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158563	SCREW	$5.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158535	SCREW - COUNTERSUNK - SPECIAL	$44.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158541	SCREW	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158544	SCREW	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158536	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163182	DOWEL	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158361	COVER	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158360	COVER	$31.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158656	VALVE - NON RETURN	$49.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158348	CONNECTOR - HOSE	$20.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158992	BRACKET - ENGINE LIFTING	$85.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158321	BRACKET - ENGINE LIFTING	$85.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158315	GASKET - COVER PLATE	$30.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158314	GASKET - COVER PLATE	$30.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158335	GASKET	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176308	Seal	$38.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159836	ACTUATOR	$491.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159306	ACTUATOR	$491.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR158703	STUD	LR158703 STUD M8 x 50 - 10.9	$7.46	16
HB2	LR158275	BOLT AND WASHER - HEX.HEAD	LR158275 BOLT AND WASHER - HEX.HEAD Cover, M6 X 20MM	$2.16	10
HB3	LR158534	SCREW	LR158534 SCREW M6 x 67 mm	$2.83	16
HB4	LR158563	SCREW	LR158563 SCREW M6 x 75MM	$5.76	8
HB5	LR158535	SCREW - COUNTERSUNK - SPECIAL	LR158535 SCREW - COUNTERSUNK - SPECIAL M6 x 31 mm	$44.78	20
HS1	LR158541	SCREW	LR158541 SCREW Actuator, M6 X 16	$1.00	4
HS2	LR158544	SCREW	LR158544 SCREW Lifting Eye, M8 X 22MM	$2.97	4
HS3	LR158536	SCREW	LR158536 SCREW M6 X 40MM	$2.47	42
6C751	LR158656	VALVE - NON RETURN	LR158656 VALVE - NON RETURN Non-Return	$49.22	2
6L042A	LR158992	BRACKET - ENGINE LIFTING	LR158992 BRACKET - ENGINE LIFTING RH	$85.18	1
6L042B	LR158321	BRACKET - ENGINE LIFTING	LR158321 BRACKET - ENGINE LIFTING LH	$85.18	1
9G605A	LR158315	GASKET - COVER PLATE	LR158315 GASKET - COVER PLATE RH	$30.96	1
9G605B	LR158314	GASKET - COVER PLATE	LR158314 GASKET - COVER PLATE LH	$30.96	1
9G605C	LR158335	GASKET	LR158335 GASKET RH Cylinder Bank	$31.00	1
9G605D	LR176308	Seal	LR176308 Seal Actuator, RH/LH, Variable Valve Lift	$38.68	2
9L492A	LR159836	ACTUATOR	LR159836 ACTUATOR RH, Variable Valve Lift	$491.20	1
9L492B	LR159306	ACTUATOR	LR159306 ACTUATOR LH, Variable Valve Lift	$491.20	1
6019A	LR158361	COVER	LR158361 COVER RH	$31.52	1
6019B	LR158360	COVER	LR158360 COVER LH	$31.52	1
6397	LR163182	DOWEL	LR163182 DOWEL	$5.72	48
390794	LR158348	CONNECTOR - HOSE	LR158348 CONNECTOR - HOSE M8 x 1, Micro - Encapsulated Fitting	$20.41	2

Cylinder Head (Related Parts) (4.4 V8 Turbo Petrol (Nc10))

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Cylinder Head (Related Parts) (4.4 V8 Turbo Petrol (NC10))
