Name: Heater Hoses (3.0L AJ20P6 Petrol High, Fuel Fired Heater With Park Heat, With Air Conditioning - Front/Rear, Fuel Heater W/Pk Heat With Remote)
Rating: 5.0 (1 reviews)

Heater Hoses (3.0L AJ20P6 Petrol High, Fuel Fired Heater With Park Heat, With Air Conditioning - Front/Rear, Fuel Heater W/Pk Heat With Remote) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Heater Hoses (3.0L AJ20P6 Petrol High, Fuel Fired Heater With Park Heat, With Air Conditioning -...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013332	CLIP - SPECIAL	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR050932	CLIP - RETAINING	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR175725	Plug	$21.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR175788	O-Ring	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR151543	HOSE	$243.49	To Order
	LR174467	Tube - Heater Water	$221.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151908	PUMP - WATER	$235.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151914	PUMP - WATER	$213.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151919	BRACKET - PUMP SUPPORT	$20.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153512	HOSE - AUXILIARY HEATER OUTLET	$96.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153505	VALVE	$306.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151667	HOSE - WATER	$53.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151921	HOSE - WATER	$96.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153500	HOSE - AUXILIARY HEATER OUTLET	$128.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153493	HOSE - AUXILIARY HEATER OUTLET	$109.07	To Order

View All

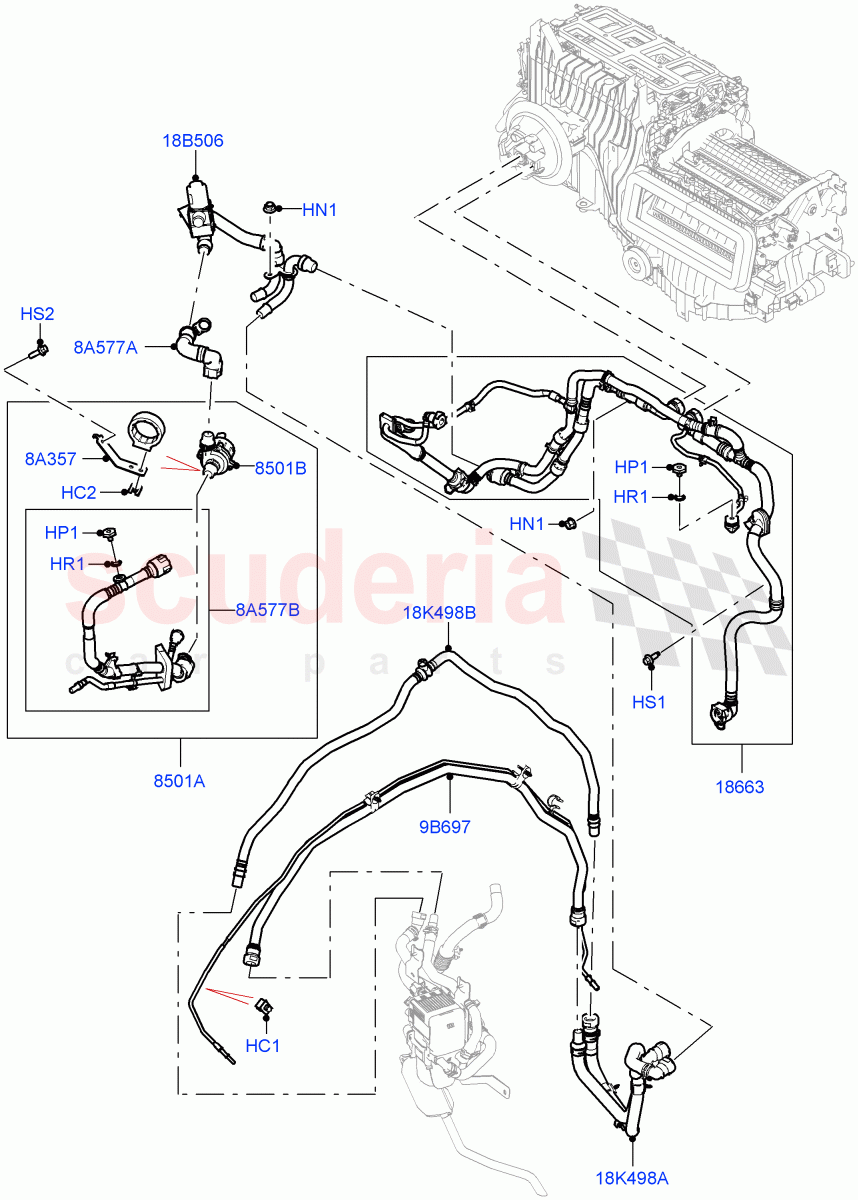

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR013332	CLIP - SPECIAL IN STOCK	LR013332 CLIP - SPECIAL 5.0MM IN STOCK	$1.57	1
HC2	LR050932	CLIP - RETAINING	LR050932 CLIP - RETAINING 8 X 1.2	$1.76	2
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.60	4
HP1	LR175725	Plug	LR175725 Plug Plastic	$21.76	2
HR1	LR175788	O-Ring	LR175788 O-Ring Sealing Ring	$0.83	2
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	$0.63	1
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$3.46	1
8A357	LR151919	BRACKET - PUMP SUPPORT	LR151919 BRACKET - PUMP SUPPORT	$20.18	1
8A577A	LR151667	HOSE - WATER	LR151667 HOSE - WATER To Valve	$53.81	1
8A577B	LR151921	HOSE - WATER	LR151921 HOSE - WATER To Water Pump	$96.86	1
9B697	LR153512	HOSE - AUXILIARY HEATER OUTLET	LR153512 HOSE - AUXILIARY HEATER OUTLET Assembly, Fuel And Water Pipe	$96.71	1
18B506	LR153505	VALVE	LR153505 VALVE	$306.71	1
18K498A	LR153500	HOSE - AUXILIARY HEATER OUTLET	LR153500 HOSE - AUXILIARY HEATER OUTLET To Valve	$128.09	1
18K498B	LR153493	HOSE - AUXILIARY HEATER OUTLET	LR153493 HOSE - AUXILIARY HEATER OUTLET To Fuel Fired Heater	$109.07	1
8501A	LR151908	PUMP - WATER	LR151908 PUMP - WATER Assembly	$235.84	1
8501B	LR151914	PUMP - WATER	LR151914 PUMP - WATER Water Pump	$213.27	1
18663	LR151543	HOSE	LR151543 HOSE To HVAC Unit / To: NA999999	$243.49	1
18663	LR174467	Tube - Heater Water	LR174467 Tube - Heater Water To HVAC Unit / From: PA000001	$221.57	1
