Engine Harness (3.0L Aj20D6 Diesel High, Less Electric Engine Battery)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Engine Harness (3.0L AJ20D6 Diesel High, Less Electric Engine Battery)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.46 To Order
Photo Part No Description Price (each) Stock
LR122999 NUT - HEX. $3.04 To Order
Photo Part No Description Price (each) Stock
LR154100 NUT - FLANGED $0.53 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR154102 Screw $1.20 To Order
Photo Part No Description Price (each) Stock
LR124564 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
LR122583 SCREW $2.18 To Order
Photo Part No Description Price (each) Stock
FS108306 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
LR159198 WIRING - ALTERNATOR $185.24 To Order
Photo Part No Description Price (each) Stock
LR157219 WIRE - GLOW PLUG $103.02 To Order
Photo Part No Description Price (each) Stock
LR159245 LINK - CAN $152.93 To Order
Photo Part No Description Price (each) Stock
LR171955 WIRE $87.14 To Order
Photo Part No Description Price (each) Stock
LR157128 WIRING - ENGINE $1,001.93 To Order
Photo Part No Description Price (each) Stock
LR159061 BRACKET $83.79 To Order
Photo Part No Description Price (each) Stock
LR159862 BRACKET - JUMP START $24.57 To Order
Photo Part No Description Price (each) Stock
LR173655 Bracket $29.42 To Order
Photo Part No Description Price (each) Stock
LR164401 BRACKET - STARTER MOTOR $32.17 To Order
Photo Part No Description Price (each) Stock
LR163551 BRACKET - STARTER MOTOR $61.04 To Order
Photo Part No Description Price (each) Stock
LR154782 PLUG - BLANKING $15.02 To Order
Photo Part No Description Price (each) Stock
LR154772 PLUG - BLANKING $14.61 To Order
Photo Part No Description Price (each) Stock
LR159240 WIRE - ENGINE EARTH $48.58 To Order
View All

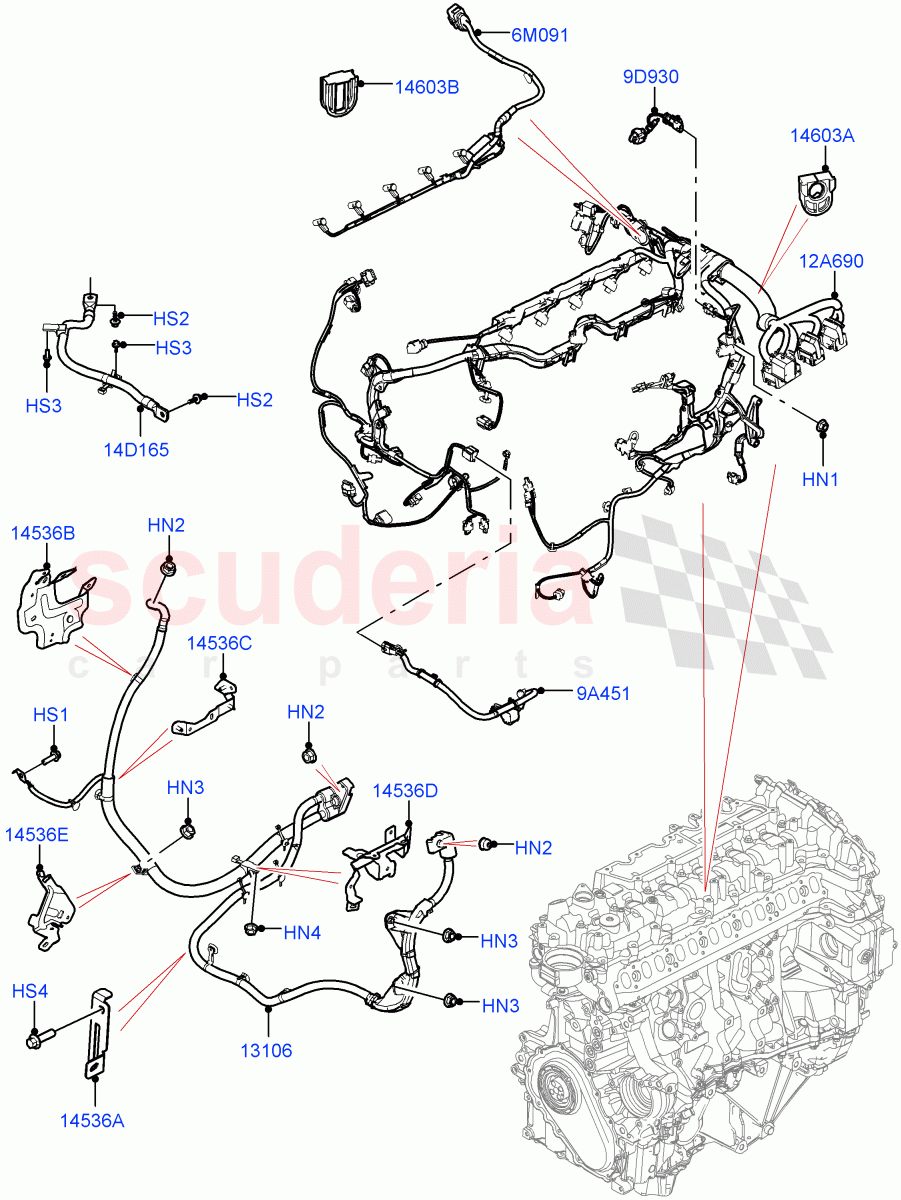

Engine Harness (3.0L AJ20D6 Diesel High, Less Electric Engine Battery) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR087242
NUT - HEX.
M6 		$1.46 1
HN2 LR122999
NUT - HEX.
M8 		$3.04 4
HN3 LR154100
NUT - FLANGED
M6 		$0.53 3
HN4 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 1
HS1 LR154102
Screw
M8X25 		$1.20 1
HS2 LR124564
SCREW
Hexagonal Head, M8 X 20MM, Taptite 		$2.24 2
HS3 LR122583
SCREW
Hexagonal Head, M6 X 16 		$2.18 2
HS4 FS108306
SCREW
Bracket, M8 x 30MM 		$0.47 1
6M091 LR157219
WIRE - GLOW PLUG 		$103.02 1
9A451 LR159245
LINK - CAN
Alternator, Link 		$152.93 1
9D930 LR171955
WIRE
Fuel Pressure Sensor 		$87.14 1
12A690 LR157128
WIRING - ENGINE 		$1,001.93 1
14D165 LR159240
WIRE - ENGINE EARTH
Engine Earth 		$48.58 1
13106 LR159198
WIRING - ALTERNATOR
Alternator, Starter Motor 		$185.24 1
14536A LR159061
BRACKET 		$83.79 1
14536B LR159862
BRACKET - JUMP START
Jump Start 		$24.57 1
14536C LR173655
Bracket
Starter Cable 		$29.42 1
14536D LR164401
BRACKET - STARTER MOTOR
LH, Starter Motor 		$32.17 1
14536E LR163551
BRACKET - STARTER MOTOR
RH, Starter Motor 		$61.04 1
14603A LR154782
PLUG - BLANKING
Engine Harness 		$15.02 1
14603B LR154772
PLUG - BLANKING
Blanking Plug 		$14.61 1
