Engine Mounting (3.0L Aj20P6 Petrol High, 3.0L Aj20P6 Petrol Phev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Engine Mounting (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038568 BOLT $2.52 To Order
Photo Part No Description Price (each) Stock
LR151933 BOLT $4.12 To Order
Photo Part No Description Price (each) Stock
LR151939 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
LR151935 BOLT $0.97 To Order
Photo Part No Description Price (each) Stock
LR118800 BOLT AND WASHER - HEX.HEAD $3.05 IN STOCK
Photo Part No Description Price (each) Stock
LR161944 BOLT $1.81 IN STOCK
Photo Part No Description Price (each) Stock
LR146237 BOLT $2.79 To Order
Photo Part No Description Price (each) Stock
LR151927 NUT $2.89 To Order
Photo Part No Description Price (each) Stock
LR161943 NUT $0.52 To Order
Photo Part No Description Price (each) Stock
RYG501160 SCREW $1.50 To Order
Photo Part No Description Price (each) Stock
LR175596 Bracket $60.67 To Order
Photo Part No Description Price (each) Stock
LR151992 BRACKET - ENGINE FRONT SUPPORT $238.19 To Order
Photo Part No Description Price (each) Stock
LR151999 BRACKET - ENGINE FRONT SUPPORT $206.90 To Order
Photo Part No Description Price (each) Stock
LR174007 Bracket - Engine Support $35.09 To Order
Photo Part No Description Price (each) Stock
LR165684 DAMPER - VIBRATION $194.23 To Order
Photo Part No Description Price (each) Stock
LR141060 DAMPER - VIBRATION $140.24 To Order
Photo Part No Description Price (each) Stock
LR159988 ADAPTOR $13.14 To Order
Photo Part No Description Price (each) Stock
LR151958 WASHER - RUBBER $17.15 To Order
Photo Part No Description Price (each) Stock
LR172203 BRACKET - ENGINE MOUNTING $181.50 To Order
Photo Part No Description Price (each) Stock
LR172202 BRACKET - ENGINE MOUNTING $181.08 To Order
View All

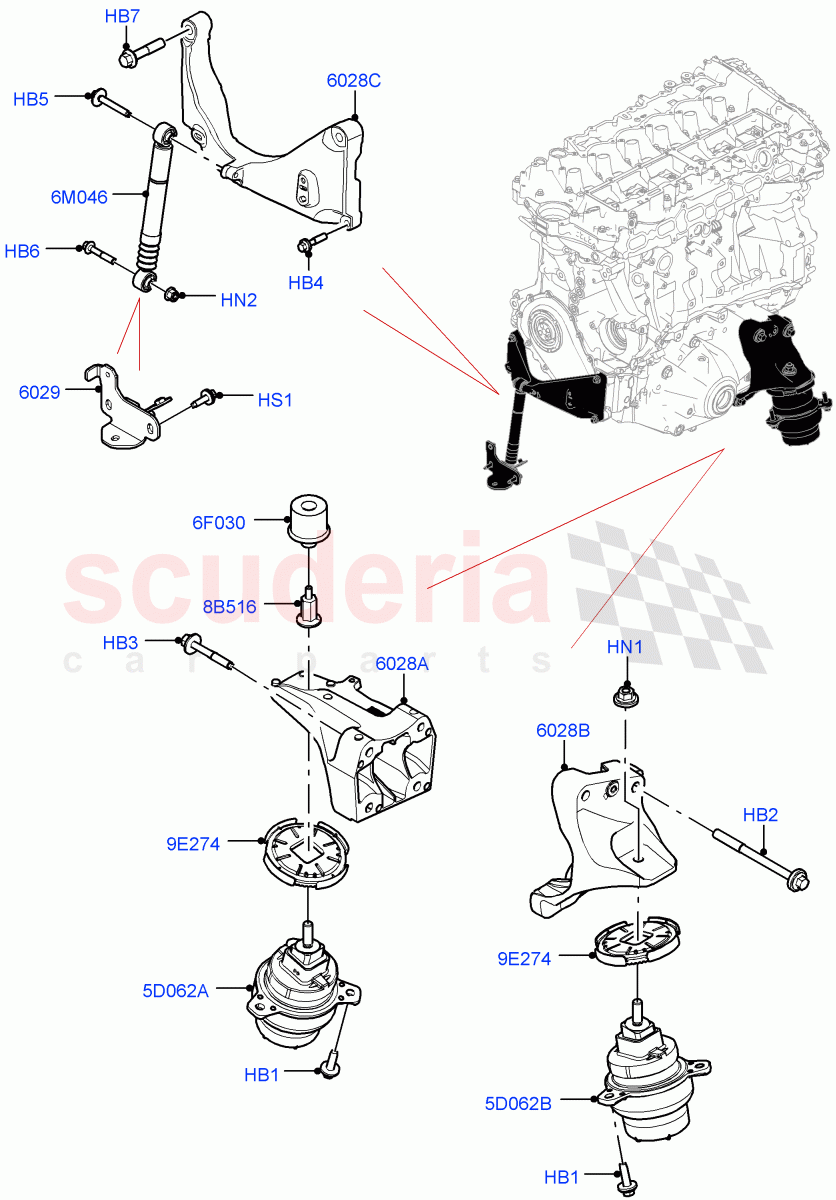

Engine Mounting (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038568
BOLT
Engine Mounting To Subframe, Hexagonal Head, M10 x 35MM 		$2.52 6
HB2 LR151933
BOLT
LH, Engine Mounting Bracket To Sump, Hexagonal Head, M12 x 155mm 		$4.12 4
HB3 LR151939
BOLT
RH, Engine Mounting Bracket To Sump, M10 x 72MM 		$3.01 4
HB4 LR151935
BOLT
Engine Mounting Bracket To Sump, Front, M8 x 38MM 		$0.97 2
HB5 LR118800
BOLT AND WASHER - HEX.HEAD
Damper To Engine Bracket, M8 x 55MM, Washer - 24 mm
IN STOCK 		$3.05 1
HB6 LR161944
BOLT
Damper To Subframe Bracket, M8 X 45MM
IN STOCK 		$1.81 1
HB7 LR146237
BOLT
Engine Mounting Bracket To Block, Front, M12 X 60MM 		$2.79 2
HN1 LR151927
NUT
Engine Mounting To Engine Bracket, M12 		$2.89 1
HN2 LR161943
NUT
Damper To Subframe Bracket, M8 		$0.52 1
HS1 RYG501160
SCREW
Bolt And Washer, Bracket To Subframe, Hexagonal Head, M8X25 		$1.50 3
5D062A LR172203
BRACKET - ENGINE MOUNTING
RH 		$181.50 1
5D062B LR172202
BRACKET - ENGINE MOUNTING
LH 		$181.08 1
6F030 LR165684
DAMPER - VIBRATION
RH Side, Vibration 		$194.23 1
6M046 LR141060
DAMPER - VIBRATION
Engine Mounting, Front 		$140.24 1
8B516 LR159988
ADAPTOR
M12 x M8, Threaded, Vibration Damper 		$13.14 1
9E274 LR151958
WASHER - RUBBER
RH/LH, Snubber 		$17.15 2
6028A LR151992
BRACKET - ENGINE FRONT SUPPORT
RH 		$238.19 1
6028B LR151999
BRACKET - ENGINE FRONT SUPPORT
LH 		$206.90 1
6028C LR174007
Bracket - Engine Support
Front 		$35.09 1
6029 LR175596
Bracket
To Front Subframe 		$60.67 1
