Name: Timing Gear (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)
Rating: 5.0 (1 reviews)

Timing Gear (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Timing Gear (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)

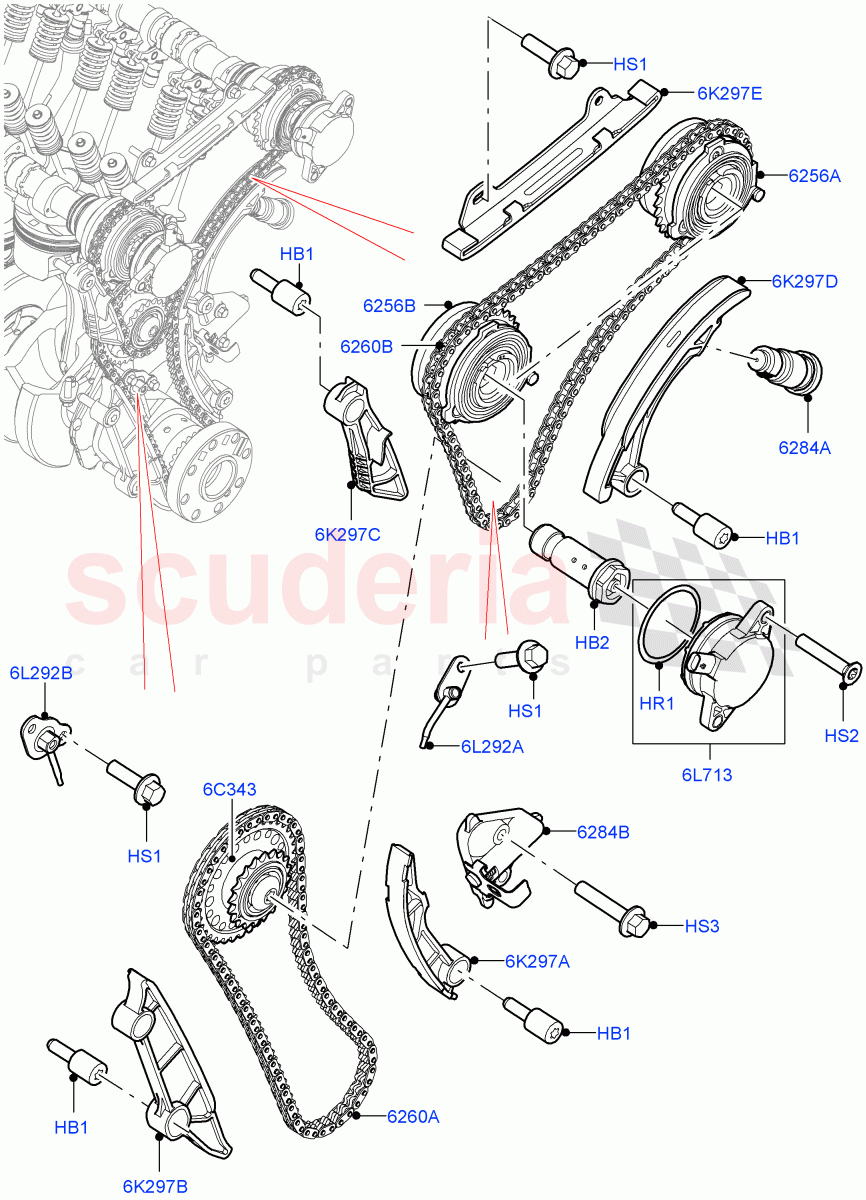

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123057	BOLT	$2.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR135872	BOLT	$35.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR148214	O-RING	$6.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092106	SCREW	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121816	SPROCKET - CAMSHAFT	$130.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121815	SPROCKET - CAMSHAFT	$136.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121793	CHAIN - TIMING	$141.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121792	CHAIN - TIMING	$140.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121800	TENSIONER - TIMING CHAIN	$145.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121799	TENSIONER - TIMING CHAIN	$163.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121807	IDLER - DRIVE CHAIN	$66.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR163188	SOLENOID - ENGINE VARIABLE TIMING	$80.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121805	ARM - TIMING CHAIN TENSIONER	$46.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121803	GUIDE - TIMING CHAIN	$44.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121801	GUIDE - TIMING CHAIN	$35.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121804	ARM - TIMING CHAIN TENSIONER	$43.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121802	GUIDE - TIMING CHAIN	$54.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR121385	JET - CHAIN LUBRICATING	$18.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121387	JET - CHAIN LUBRICATING	$22.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR123057	BOLT IN STOCK	LR123057 BOLT Chain Guide, M8 X 23MM IN STOCK	$2.52	5
HB2	LR135872	BOLT	LR135872 BOLT Solenoid - Engine Variable Timing	$35.88	2
HR1	LR148214	O-RING IN STOCK	LR148214 O-RING Solenoid - Engine Variable Timing IN STOCK	$6.49	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.59	5
HS2	LR092106	SCREW	LR092106 SCREW M6 x 25MM, Solenoid - Engine Variable Timing	$0.98	4
HS3	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM, Primary, Tensioner IN STOCK	$2.65	2
6C343	LR121807	IDLER - DRIVE CHAIN IN STOCK	LR121807 IDLER - DRIVE CHAIN Intermediate IN STOCK	$66.36	1
6K297A	LR121805	ARM - TIMING CHAIN TENSIONER IN STOCK	LR121805 ARM - TIMING CHAIN TENSIONER RH, Primary IN STOCK	$46.17	1
6K297B	LR121803	GUIDE - TIMING CHAIN IN STOCK	LR121803 GUIDE - TIMING CHAIN LH, Primary IN STOCK	$44.68	1
6K297C	LR121801	GUIDE - TIMING CHAIN IN STOCK	LR121801 GUIDE - TIMING CHAIN LH, Secondary IN STOCK	$35.68	1
6K297D	LR121804	ARM - TIMING CHAIN TENSIONER IN STOCK	LR121804 ARM - TIMING CHAIN TENSIONER RH, Secondary IN STOCK	$43.05	1
6K297E	LR121802	GUIDE - TIMING CHAIN IN STOCK	LR121802 GUIDE - TIMING CHAIN Secondary, Upper IN STOCK	$54.81	1
6L292A	LR121385	JET - CHAIN LUBRICATING	LR121385 JET - CHAIN LUBRICATING Upper	$18.45	1
6L292B	LR121387	JET - CHAIN LUBRICATING	LR121387 JET - CHAIN LUBRICATING Lower	$22.02	1
6L713	LR163188	SOLENOID - ENGINE VARIABLE TIMING	LR163188 SOLENOID - ENGINE VARIABLE TIMING	$80.14	2
6256A	LR121816	SPROCKET - CAMSHAFT	LR121816 SPROCKET - CAMSHAFT Exhaust, Variable Valve Timing Unit	$130.33	1
6256B	LR121815	SPROCKET - CAMSHAFT	LR121815 SPROCKET - CAMSHAFT Inlet, Variable Valve Timing Unit	$136.26	1
6260A	LR121793	CHAIN - TIMING	LR121793 CHAIN - TIMING Lower, Primary	$141.91	1
6260B	LR121792	CHAIN - TIMING	LR121792 CHAIN - TIMING Secondary, Upper	$140.92	1
6284A	LR121800	TENSIONER - TIMING CHAIN IN STOCK	LR121800 TENSIONER - TIMING CHAIN Secondary IN STOCK	$145.83	1
6284B	LR121799	TENSIONER - TIMING CHAIN IN STOCK	LR121799 TENSIONER - TIMING CHAIN Primary IN STOCK	$163.52	1

Timing Gear (3.0L Aj20P6 Petrol High, 3.0L Aj20P6 Petrol Phev)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Timing Gear (3.0L AJ20P6 Petrol High, 3.0L AJ20P6 Petrol PHEV)
