Fuel Tank & Related Parts (3.0L Aj20P6 Petrol High, Fuel Tank Filler Neck - Unleaded)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Fuel Tank Filler Neck - Unleaded)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR163798 BOLT $7.38 To Order
Photo Part No Description Price (each) Stock
LR161950 CLIP $2.44 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
WYF000020 SPACER $3.71 To Order
Photo Part No Description Price (each) Stock
WYD000020 GROMMET $3.96 To Order
Photo Part No Description Price (each) Stock
LR094016 STUD $1.69 To Order
Photo Part No Description Price (each) Stock
LR152240 TANK - FUEL $2,594.54 To Order
LR174036 Tank - Fuel $1,236.71 To Order
Photo Part No Description Price (each) Stock
LR138718 CAP - FUEL TANK FILLER $39.29 To Order
Photo Part No Description Price (each) Stock
LR152383 PIPE - FUEL FILLER $362.22 To Order
Photo Part No Description Price (each) Stock
LR152488 HOSE - FILLER PIPE $82.91 To Order
Photo Part No Description Price (each) Stock
LR152226 SPACER $13.72 To Order
Photo Part No Description Price (each) Stock
LR152225 SPACER $13.72 To Order
Photo Part No Description Price (each) Stock
LR152255 STRAP - FUEL TANK $121.16 To Order
LR174034 Strap - Fuel Tank $119.88 To Order
Photo Part No Description Price (each) Stock
LR152258 STRAP - FUEL TANK $89.17 To Order
LR174035 Strap - Fuel Tank $80.45 To Order
Photo Part No Description Price (each) Stock
LR152054 TUBE - VENTILATION $50.61 To Order
Photo Part No Description Price (each) Stock
LR154681 REINFORCEMENT - FUEL TANK FILL PIPE $62.53 To Order
View All

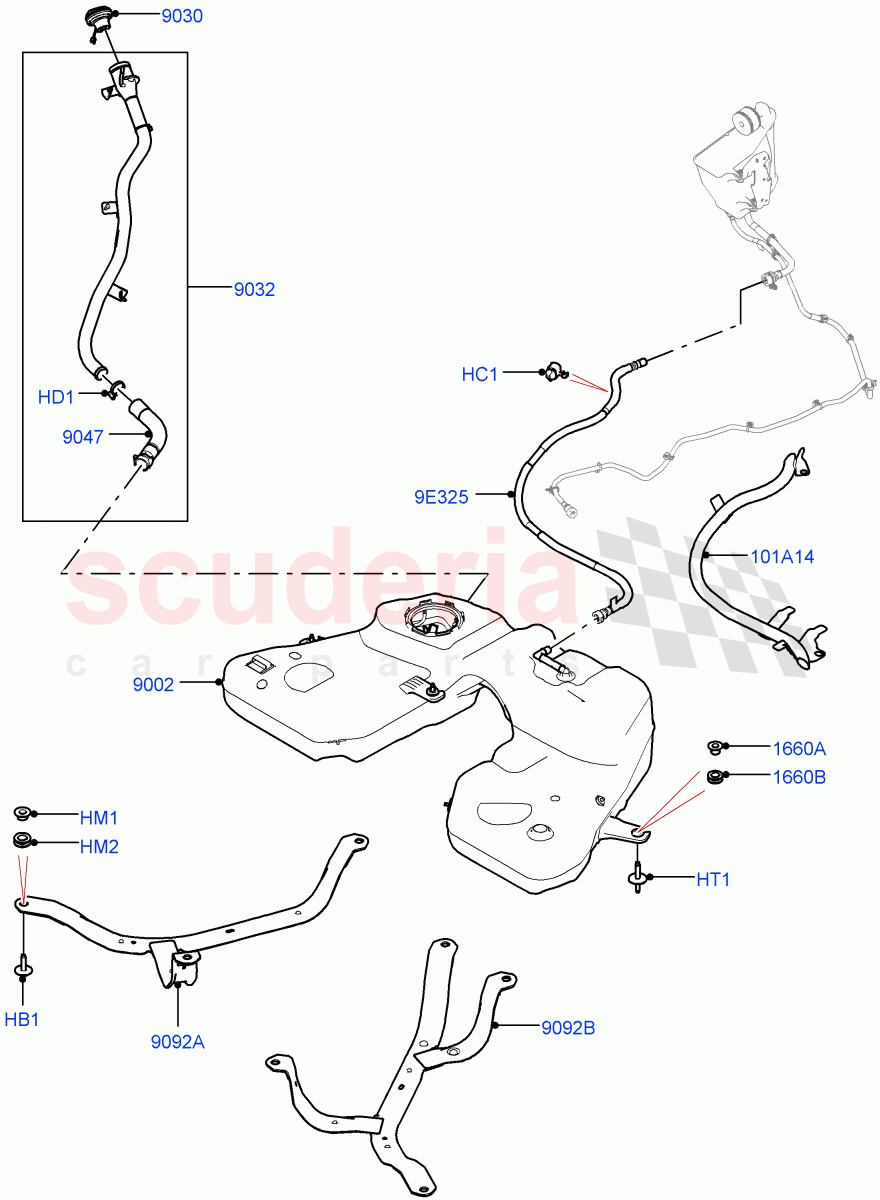

Fuel Tank & Related Parts (3.0L AJ20P6 Petrol High, Fuel Tank Filler Neck - Unleaded) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR163798
BOLT
Fuel Tank Strap, M10 x 43 		$7.38 7
HC1 LR161950
CLIP
Breather Pipe 		$2.44 1
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		$6.12 1
HM1 WYF000020
SPACER
Fuel Tank Strap, Inner 		$3.71 7
HM2 WYD000020
GROMMET
Fuel Tank Strap, Outer 		$3.96 7
HT1 LR094016
STUD
Hexagonal Head, M10 X 41 + M8 X 22 		$1.69 4
9E325 LR152054
TUBE - VENTILATION
Charcoal Cannister 		$50.61 1
101A14 LR154681
REINFORCEMENT - FUEL TANK FILL PIPE 		$62.53 1
1660A LR152226
SPACER
Fuel Tank, Inner 		$13.72 3
1660B LR152225
SPACER
Fuel Tank, Outer 		$13.72 3
9002 LR152240
TANK - FUEL
To: NA000684 		$2,594.54 1
9002 LR174036
Tank - Fuel
From: NA000685 		$1,236.71 1
9030 LR138718
CAP - FUEL TANK FILLER 		$39.29 1
9032 LR152383
PIPE - FUEL FILLER
Complete Assembly 		$362.22 1
9047 LR152488
HOSE - FILLER PIPE
Connects To Fuel Tank 		$82.91 1
9092A LR152255
STRAP - FUEL TANK
RH / To: NA000684 		$121.16 1
9092A LR174034
Strap - Fuel Tank
RH / From: NA000685 		$119.88 1
9092B LR152258
STRAP - FUEL TANK
LH / To: NA000684 		$89.17 1
9092B LR174035
Strap - Fuel Tank
LH / From: NA000685 		$80.45 1
