Rear Seat Base (40/20/40 Super Slouch Rear Seat)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Rear Seat Base (40/20/40 Super Slouch Rear Seat)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR107009 BOLT AND WASHER - HEX.HEAD $1.80 To Order
Photo Part No Description Price (each) Stock
BYG500120 BOLT $2.30 To Order
Photo Part No Description Price (each) Stock
LR161278 SCREW $3.04 To Order
Photo Part No Description Price (each) Stock
LR111351 CLIP $2.61 To Order
Photo Part No Description Price (each) Stock
LR050869 PLUG - BLANKING $1.16 To Order
Photo Part No Description Price (each) Stock
LR161279 SCREW $3.10 To Order
Photo Part No Description Price (each) Stock
LR111365 SCREW $1.69 To Order
Photo Part No Description Price (each) Stock
LR111366 SCREW $1.69 To Order
Photo Part No Description Price (each) Stock
LR140667 LATCH - REAR SEAT BACK $315.72 To Order
LR140668 LATCH - REAR SEAT BACK $333.08 To Order
Photo Part No Description Price (each) Stock
LR152685 SUPPORT - SEAT BACK $986.88 To Order
Photo Part No Description Price (each) Stock
LR107767 SUPPORT - REAR SEAT CUSHION $88.44 To Order
LR107771 SUPPORT - REAR SEAT CUSHION $92.01 To Order
Photo Part No Description Price (each) Stock
LR107766 SUPPORT - REAR SEAT CUSHION $284.75 To Order
LR107772 SUPPORT - REAR SEAT CUSHION $284.75 To Order
Photo Part No Description Price (each) Stock
LR092463 RETAINER - SEAT $7.17 To Order
Photo Part No Description Price (each) Stock
LR099516 FRAME AND SPRING - RR SEAT CUSHION $1,130.71 To Order
LR099519 FRAME AND SPRING - RR SEAT CUSHION $1,054.13 To Order
Photo Part No Description Price (each) Stock
LR099517 FRAME AND SPRING - RR SEAT CUSHION $1,237.84 To Order
LR099521 FRAME AND SPRING - RR SEAT CUSHION $1,101.37 To Order
Photo Part No Description Price (each) Stock
LR099514 FRAME AND SPRING - RR SEAT CUSHION $1,152.80 To Order
Photo Part No Description Price (each) Stock
LR152275 FRAME - REAR SEAT BACK RETAINING $1,196.33 To Order
Photo Part No Description Price (each) Stock
LR152278 FRAME - REAR SEAT BACK RETAINING $1,481.16 To Order
Photo Part No Description Price (each) Stock
LR101401 CARRIER - SEAT TRACK $37.47 To Order
LR101401 CARRIER - SEAT TRACK $37.47 To Order
Photo Part No Description Price (each) Stock
LR101404 CARRIER - SEAT TRACK $34.04 To Order
LR101404 CARRIER - SEAT TRACK $34.04 To Order
Photo Part No Description Price (each) Stock
LR110649 CARRIER - SEAT TRACK $17.34 To Order
LR110649 CARRIER - SEAT TRACK $17.34 To Order
Photo Part No Description Price (each) Stock
LR101395 CARRIER - SEAT TRACK $22.63 To Order
LR101395 CARRIER - SEAT TRACK $22.63 To Order
Photo Part No Description Price (each) Stock
LR110645 CARRIER - SEAT TRACK $21.54 To Order
LR110645 CARRIER - SEAT TRACK $21.54 To Order
View All

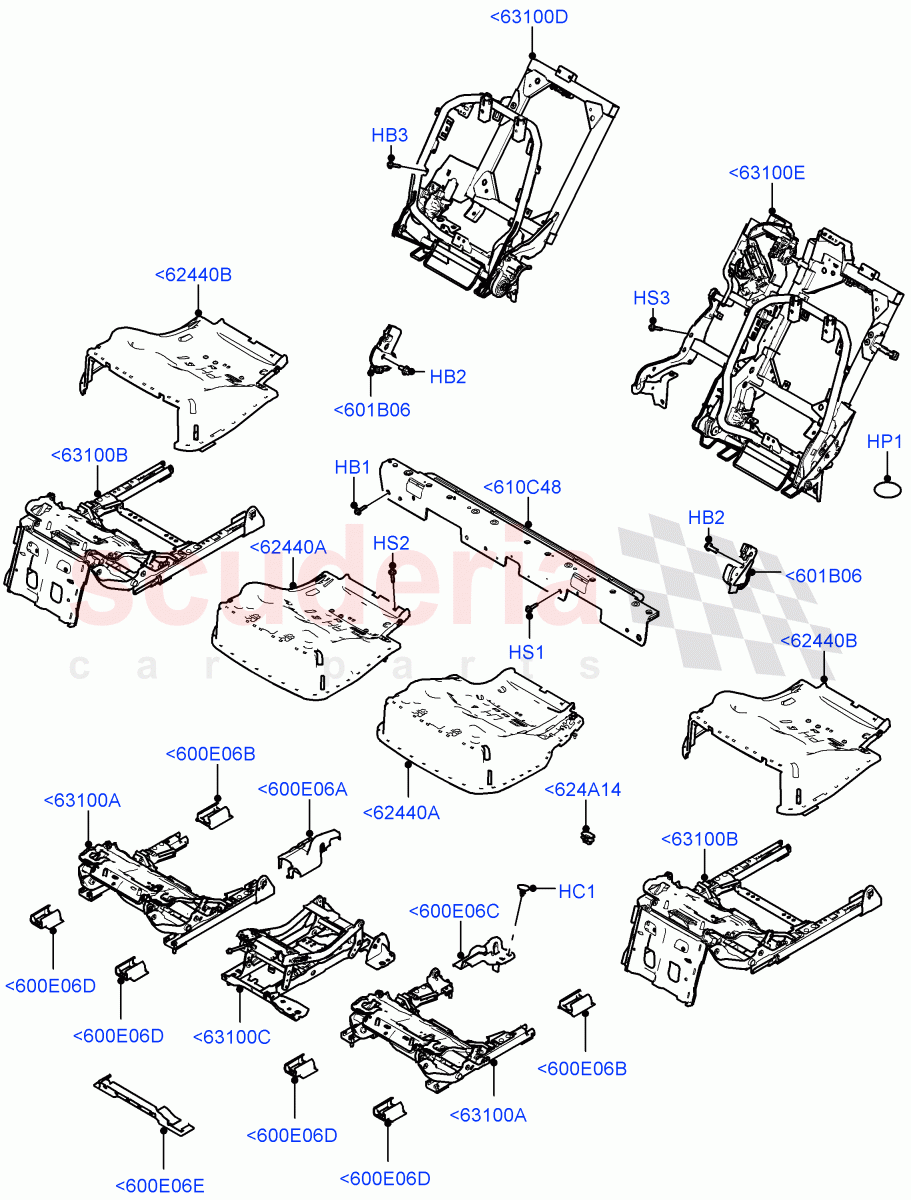

Rear Seat Base (40/20/40 Super Slouch Rear Seat) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<600E06A LR101401
CARRIER - SEAT TRACK
Int Ebony Carpet / RH, Inner, Rear / To: NA999999 		$37.47 1
<600E06A LR101401
CARRIER - SEAT TRACK
RH, Inner, Rear / From: PA000001 		$37.47 1
<600E06B LR101404
CARRIER - SEAT TRACK
Int Ebony Carpet / Outer, Rear, RH/LH / To: NA999999 		$34.04 2
<600E06B LR101404
CARRIER - SEAT TRACK
Outer, Rear, RH/LH / From: PA000001 		$34.04 2
<600E06C LR110649
CARRIER - SEAT TRACK
Int Ebony Carpet / LH, Inner, Rear / To: NA999999 		$17.34 1
<600E06C LR110649
CARRIER - SEAT TRACK
LH, Inner, Rear / From: PA000001 		$17.34 1
<600E06D LR101395
CARRIER - SEAT TRACK
Int Ebony Carpet / Front, Inner And Outer, RH/LH / To: NA999999 		$22.63 4
<600E06D LR101395
CARRIER - SEAT TRACK
Front, Inner And Outer, RH/LH / From: PA000001 		$22.63 4
<600E06E LR110645
CARRIER - SEAT TRACK
Int Ebony Carpet / Centre, Front / To: NA999999 		$21.54 1
<600E06E LR110645
CARRIER - SEAT TRACK
Centre, Front / From: PA000001 		$21.54 1
<601B06 LR140667
LATCH - REAR SEAT BACK
RH 		$315.72 1
<601B06 LR140668
LATCH - REAR SEAT BACK
LH 		$333.08 1
<610C48 LR152685
SUPPORT - SEAT BACK 		$986.88 1
<624A14 LR092463
RETAINER - SEAT
Floor, Front 		$7.17 4
<62440A LR107767
SUPPORT - REAR SEAT CUSHION
Less Rear Seat Calf Rests / RH 		$88.44 1
<62440A LR107771
SUPPORT - REAR SEAT CUSHION
Less Rear Seat Calf Rests / LH 		$92.01 1
<62440B LR107766
SUPPORT - REAR SEAT CUSHION
Driver + Passenger Heated Calf Rest / RH 		$284.75 1
<62440B LR107772
SUPPORT - REAR SEAT CUSHION
Driver + Passenger Heated Calf Rest / LH 		$284.75 1
<63100A LR099516
FRAME AND SPRING - RR SEAT CUSHION
Less Rear Seat Calf Rests / RH, For Seat Cushion 		$1,130.71 1
<63100A LR099519
FRAME AND SPRING - RR SEAT CUSHION
Less Rear Seat Calf Rests / LH, For Seat Cushion 		$1,054.13 1
<63100B LR099517
FRAME AND SPRING - RR SEAT CUSHION
Driver + Passenger Heated Calf Rest / RH, For Seat Cushion 		$1,237.84 1
<63100B LR099521
FRAME AND SPRING - RR SEAT CUSHION
Driver + Passenger Heated Calf Rest / LH, For Seat Cushion 		$1,101.37 1
<63100C LR099514
FRAME AND SPRING - RR SEAT CUSHION
Centre, For Seat Cushion 		$1,152.80 1
<63100D LR152275
FRAME - REAR SEAT BACK RETAINING
RH, For Seat Back 		$1,196.33 1
<63100E LR152278
FRAME - REAR SEAT BACK RETAINING
LH, For Seat Back 		$1,481.16 1
HB1 LR107009
BOLT AND WASHER - HEX.HEAD
M8 X 22MM, Reinforcement To Frame 		$1.80 5
HB2 BYG500120
BOLT
Bolt To Attach Seat Latch To Back Frame, M8 x 50MM, Torx 		$2.30 4
HB3 LR161278
SCREW
For Seat Frame, M10 X 1.5 		$3.04 2
HC1 LR111351
CLIP
Plastic, Seat Track Carrier To Frame 		$2.61 1
HP1 LR050869
PLUG - BLANKING
Less 3rd Row Rear Seat / Sealing Patch That Covers Holes When Row 3 Is Not Fitted 		$1.16 5
HS1 LR161279
SCREW
M6 x 10mm 		$3.10 3
HS2 LR111365
SCREW
M6 X 1.0 X 12MM 		$1.69 8
HS3 LR111366
SCREW
For Seat Frame, M10 x 1.5 x 18 		$1.69 4
