Heater Hoses (Front And Rear) (Premium Air Conditioning-Front/Rear)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (Front And Rear) (Premium Air Conditioning-Front/Rear)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR108386 CLIP - PUSH ON STEEL $1.05 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $2.03 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.63 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
LR092819 SCREW $1.14 To Order
Photo Part No Description Price (each) Stock
LR153535 HOSE - HEATER WATER $52.04 To Order
Photo Part No Description Price (each) Stock
LR153542 HOSE - HEATER WATER $93.58 To Order
LR153538 HOSE - HEATER WATER $98.33 To Order
Photo Part No Description Price (each) Stock
LR153537 HOSE - HEATER WATER $118.87 To Order
Photo Part No Description Price (each) Stock
LR153534 HOSE - HEATER WATER $119.31 To Order
Photo Part No Description Price (each) Stock
LR153539 HOSE - HEATER WATER $121.98 To Order
Photo Part No Description Price (each) Stock
LR153533 HOSE - HEATER WATER $57.68 To Order
Photo Part No Description Price (each) Stock
LR153543 HOSE - HEATER WATER $79.42 To Order
View All

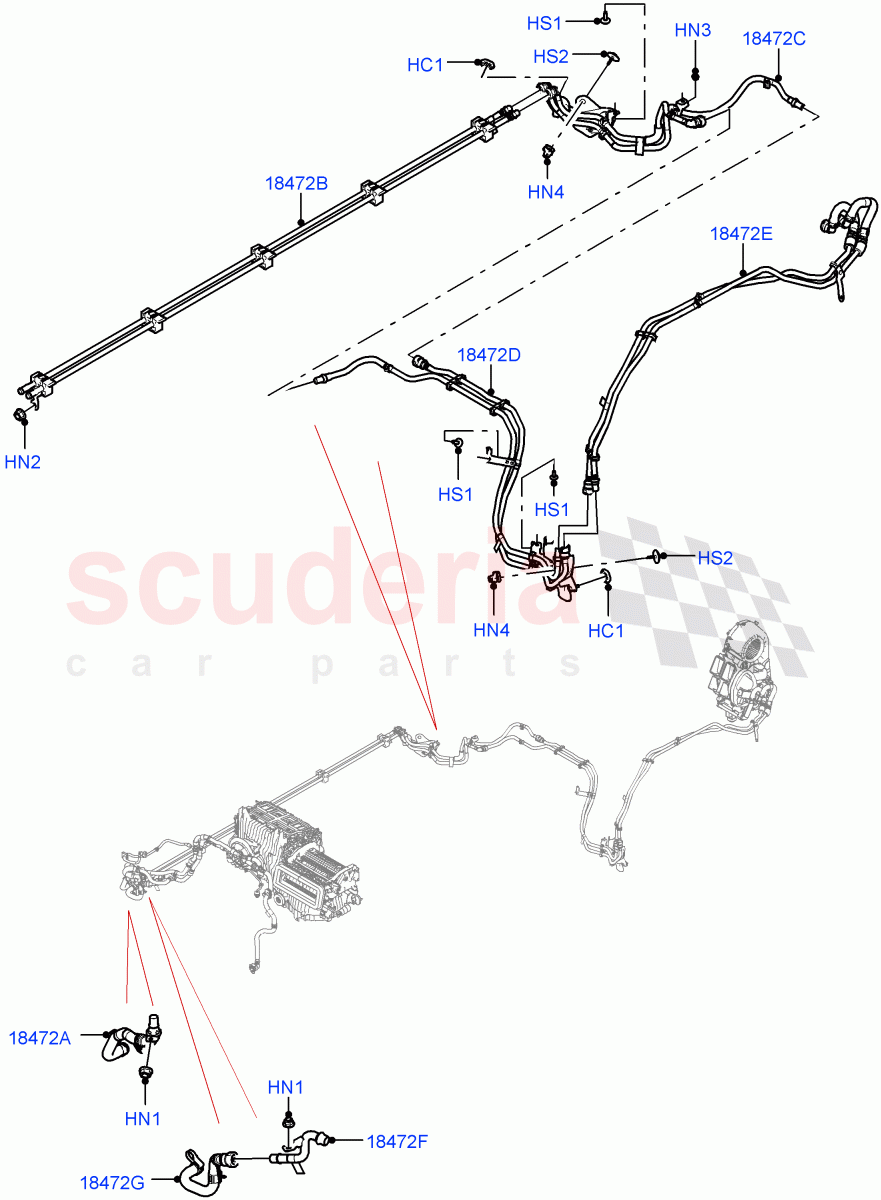

Heater Hoses (Front And Rear) (Premium Air Conditioning-Front/Rear) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR108386
CLIP - PUSH ON STEEL
M6 		$1.05 3
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.60 2
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 		$2.03 1
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 1
HN4 LR165498
NUT - EXPANSION
Plastic
IN STOCK 		$0.63 4
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.97 3
HS2 LR092819
SCREW
Hexagonal Head, M5 x 20MM, Self Tapping 		$1.14 4
18472A LR153535
HOSE - HEATER WATER
Front RH, To Heater Matrix 		$52.04 1
18472B LR153542
HOSE - HEATER WATER
Standard Wheelbase / Front 		$93.58 1
18472B LR153538
HOSE - HEATER WATER
Long Wheelbase / Front 		$98.33 1
18472C LR153537
HOSE - HEATER WATER
Middle Front 		$118.87 1
18472D LR153534
HOSE - HEATER WATER
Middle Rear 		$119.31 1
18472E LR153539
HOSE - HEATER WATER
Rear, To Heater Matrix 		$121.98 1
18472F LR153533
HOSE - HEATER WATER
Pre-Condition w/oFuel Operated Heat / LH Front, To Heater Matrix 		$57.68 1
18472G LR153543
HOSE - HEATER WATER
Less Heater 		$79.42 1
