Front Brake Discs And Calipers (Disc And Caliper Size-Frt 20/Rr 20)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Brake Discs And Calipers (Disc And Caliper Size-Frt 20/RR 20)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR167246 BOLT $3.74 To Order
Photo Part No Description Price (each) Stock
LR095473 BOLT $1.78 To Order
Photo Part No Description Price (each) Stock
LR158034 BOLT $31.99 To Order
Photo Part No Description Price (each) Stock
LR154408 BOLT $17.29 To Order
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR153507 DISC - BRAKE - VENTED $474.80 IN STOCK
Photo Part No Description Price (each) Stock
LR157390 KIT - CALIPER BRAKE PAD $525.77 To Order
LR157389 KIT - CALIPER BRAKE PAD $388.59 To Order
Photo Part No Description Price (each) Stock
LR039525 SCREW - BLEED $16.20 IN STOCK
Photo Part No Description Price (each) Stock
LR157466 CALIPER - BRAKE - LESS PADS $1,095.43 To Order
LR157472 CALIPER - BRAKE - LESS PADS $1,122.82 To Order
LR157474 CALIPER - BRAKE - LESS PADS $1,095.43 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR157457 KIT - BRAKE CALIPER ATTACHMENT $81.22 To Order
Photo Part No Description Price (each) Stock
LR153528 SHIELD - SPLASH $72.92 To Order
LR153531 SHIELD - SPLASH $72.24 To Order
Photo Part No Description Price (each) Stock
LR157454 KIT - BOOT $28.72 To Order
Photo Part No Description Price (each) Stock
LR153513 DUCT - BRAKE CALIPER COOLING $11.90 To Order
LR153515 DUCT - BRAKE CALIPER COOLING $11.01 To Order
Photo Part No Description Price (each) Stock

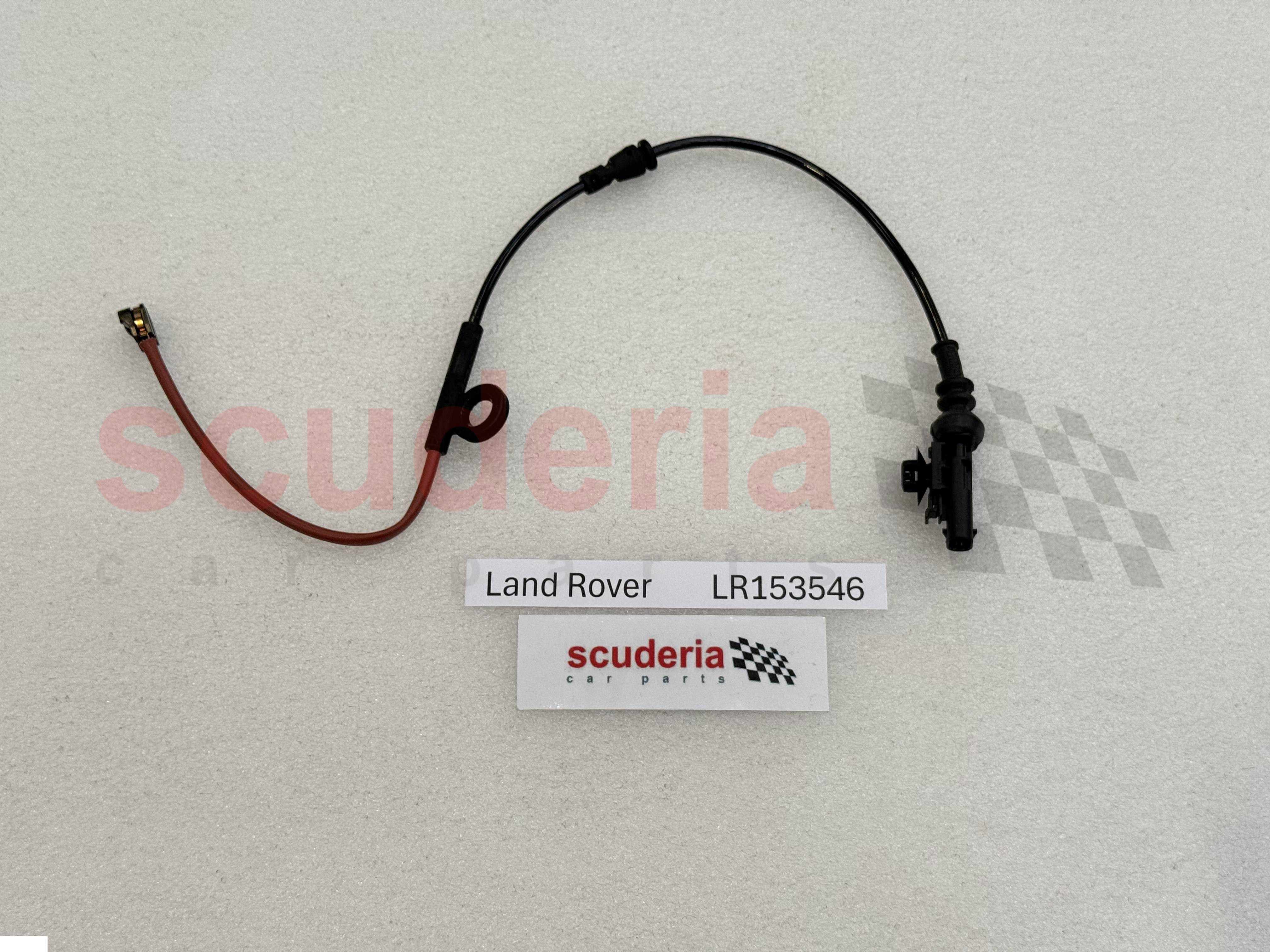

LR153546 WIRE - BRAKE PAD WEAR WARNING $44.45 IN STOCK
Photo Part No Description Price (each) Stock
LR153520 BRACKET - WIRING $98.29 To Order
LR153522 BRACKET - WIRING $98.29 To Order
View All

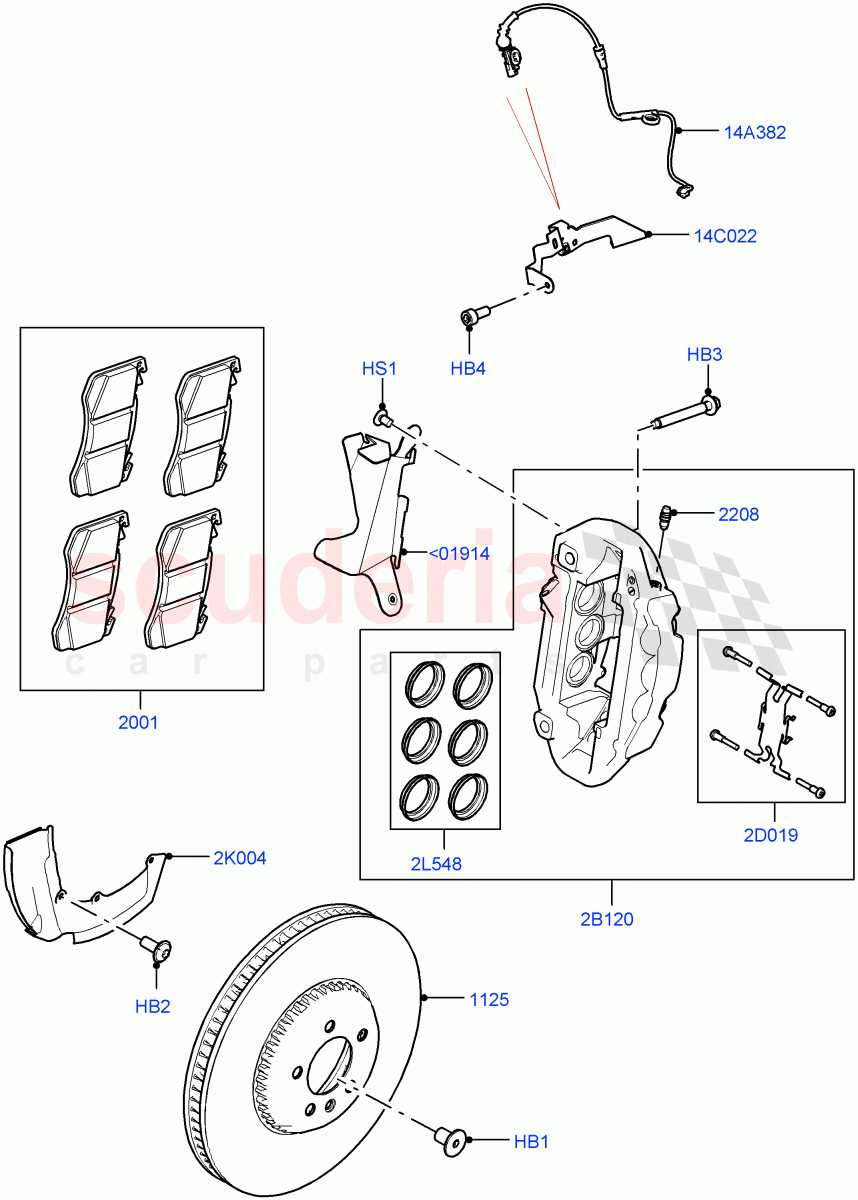

Front Brake Discs And Calipers (Disc And Caliper Size-Frt 20/RR 20) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01914 LR153513
DUCT - BRAKE CALIPER COOLING
RH, Brake Caliper Cooling 		$11.90 1
<01914 LR153515
DUCT - BRAKE CALIPER COOLING
LH, Brake Caliper Cooling 		$11.01 1
HB1 LR167246
BOLT
M8 X 12, Torx 		$3.74 2
HB2 LR095473
BOLT
M6 X 14MM, Torx 		$1.78 6
HB3 LR158034
BOLT
Hexagonal Head, M12 x 1.5 x 93 		$31.99 4
HB4 LR154408
BOLT
M6 X 14MM, Torx 		$17.29 4
HS1 LR018509
SCREW
M6 X 10MM, Torx
IN STOCK 		$1.24 4
2B120 LR157466
CALIPER - BRAKE - LESS PADS
With Non Painted Brake Calipers / RH 		$1,095.43 1
2B120 LR157472
CALIPER - BRAKE - LESS PADS
Brake Calipers - Black / RH 		$1,122.82 1
2B120 LR157474
CALIPER - BRAKE - LESS PADS
With Non Painted Brake Calipers / LH 		$1,095.43 1
2B120 LR157476
CALIPER - BRAKE - LESS PADS
Brake Calipers - Black / LH 		$1,122.82 1
2B120 LR165255
Caliper
Brake Calipers - Red / RH 		$1,122.82 1
2B120 LR165257
Caliper
Brake Calipers - Red / LH 		$1,122.82 1
2D019 LR157457
KIT - BRAKE CALIPER ATTACHMENT
Pad Clip And Retaining Pins 		$81.22 1
2K004 LR153528
SHIELD - SPLASH
RH 		$72.92 1
2K004 LR153531
SHIELD - SPLASH
LH 		$72.24 1
2L548 LR157454
KIT - BOOT
SET OF 6 PCS. 		$28.72 1
14A382 LR153546
WIRE - BRAKE PAD WEAR WARNING
LH
IN STOCK 		$44.45 1
14C022 LR153520
BRACKET - WIRING
RH 		$98.29 1
14C022 LR153522
BRACKET - WIRING
LH 		$98.29 1
1125 LR153507
DISC - BRAKE - VENTED
RH/LH
IN STOCK 		$474.80 2
2001 LR157390
KIT - CALIPER BRAKE PAD
Axle Set, High Performance, Less Clips 		$525.77 1
2001 LR157389
KIT - CALIPER BRAKE PAD
Axle Set, Less Clips, Standard Performance 		$388.59 1
2208 LR039525
SCREW - BLEED
IN STOCK 		$16.20 4
