Name: Front Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)
Rating: 5.0 (1 reviews)

Front Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)

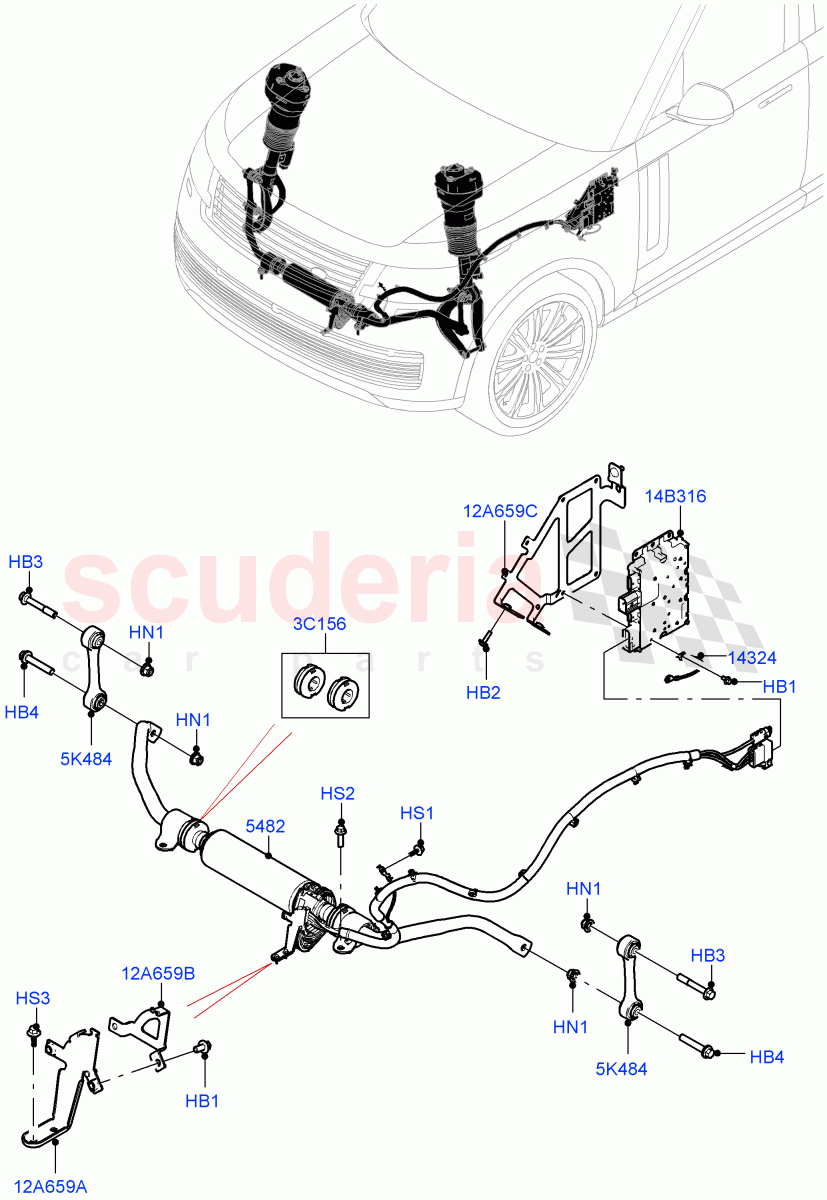

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	JYG500020	BOLT	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091603	BOLT	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161836	BOLT AND WASHER - HEX.HEAD	$7.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152798	NUT - HEX.	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126611	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038560	SCREW	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122583	SCREW	$2.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153447	BAR - FRONT STABILIZER	$3,435.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153870	WIRE - EARTH	$20.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156162	MASS DAMPER KIT	$182.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152800	LINK - STABILIZER BAR	$119.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153853	MODULE - ELECTRONIC CONTROL UNIT	$933.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154189	BRACKET - CABLE SUPPORT	$29.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154190	BRACKET - CABLE SUPPORT	$29.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153855	BRACKET - CONTROL MODULE	$26.65	To Order
	LR173204	Bracket	$25.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM IN STOCK	$0.52	6
HB2	JYG500020	BOLT	JYG500020 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM	$1.42	2
HB3	LR091603	BOLT	LR091603 BOLT Hexagonal Head, M14 X 95MM	$7.52	2
HB4	LR161836	BOLT AND WASHER - HEX.HEAD	LR161836 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M14 x 85MM	$7.19	2
HN1	LR152798	NUT - HEX.	LR152798 NUT - HEX. Hexagonal Head, M14	$3.17	4
HS1	LR126611	SCREW	LR126611 SCREW Hexagonal Head, M6 X 16MM	$2.20	1
HS2	LR038560	SCREW	LR038560 SCREW Hexagonal Head, M12 x 40MM	$3.27	4
HS3	LR122583	SCREW	LR122583 SCREW Hexagonal Head, M6 X 16	$2.18	2
3C156	LR156162	MASS DAMPER KIT	LR156162 MASS DAMPER KIT 2 Piece Kit	$182.37	1
5K484	LR152800	LINK - STABILIZER BAR	LR152800 LINK - STABILIZER BAR RH/LH	$119.08	2
12A659A	LR154189	BRACKET - CABLE SUPPORT	LR154189 BRACKET - CABLE SUPPORT Cable Bracket, Front	$29.03	1
12A659B	LR154190	BRACKET - CABLE SUPPORT	LR154190 BRACKET - CABLE SUPPORT Cable Bracket, Rear	$29.03	1
12A659C	LR153855	BRACKET - CONTROL MODULE	LR153855 BRACKET - CONTROL MODULE ECU / To: NA000673	$26.65	1
12A659C	LR173204	Bracket	LR173204 Bracket ECU / From: NA000674	$25.46	1
14B316	LR153853	MODULE - ELECTRONIC CONTROL UNIT	LR153853 MODULE - ELECTRONIC CONTROL UNIT Active Roll Bar (ARB) System Control	$933.84	1
5482	LR153447	BAR - FRONT STABILIZER	LR153447 BAR - FRONT STABILIZER Includes Insulators And Clamps, With Harness	$3,435.86	1
14324	LR153870	WIRE - EARTH	LR153870 WIRE - EARTH Module To Body	$20.49	1

Front Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With Ace)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Front Cross Member & Stabilizer Bar (Active Stabilizer Bar) (Electronic Air Suspension With ACE)
