Name: Auto Trans Assy & Speedometer Drive (4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76)
Rating: 5.0 (1 reviews)

Auto Trans Assy & Speedometer Drive (4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76) of Land Rover Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Auto Trans Assy & Speedometer Drive (4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76)

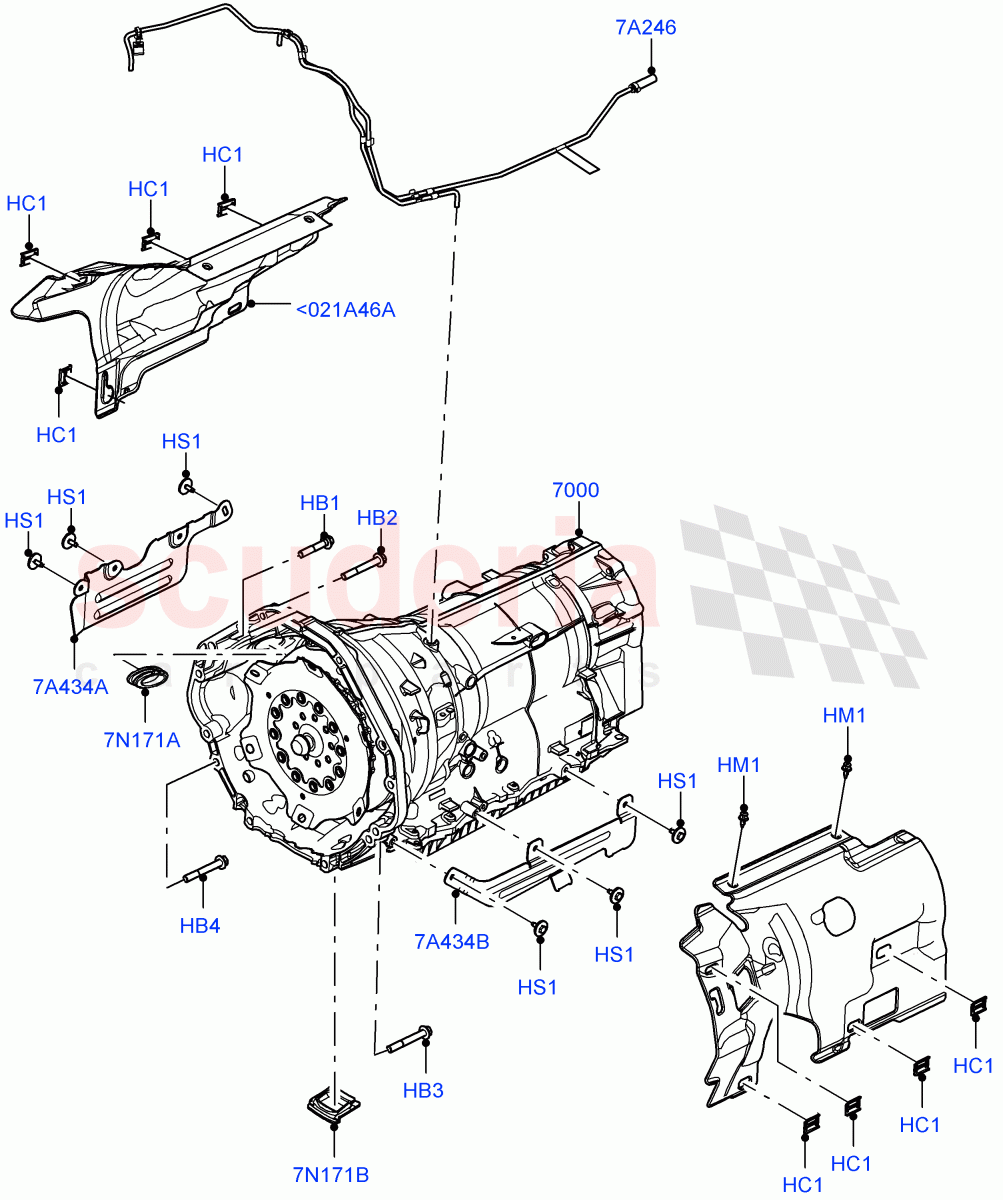

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR156156	BOLT - HEX.HEAD	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.91	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	$2.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR152410	BOLT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156899	FASTENER - COVER	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042472	SCREW	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156737	AUTOMATIC TRANSMISSION	$13,832.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152227	TUBE - TRANSMISSION VENTILATION	$63.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154211	SHIELD - TRANSMISSION	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154208	SHIELD - TRANSMISSION	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152237	GROMMET - CONVERTER ACCESS	$18.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152238	GROMMET - CONVERTER ACCESS	$15.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152228	INSULATOR - TRANSMISSION	$147.28	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A46A	LR152228	INSULATOR - TRANSMISSION	LR152228 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH	$147.28	1
<021A46B	LR152232	INSULATOR - TRANSMISSION	LR152232 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH	$144.94	1
HB1	LR156156	BOLT - HEX.HEAD	LR156156 BOLT - HEX.HEAD M10 x 55MM, Transmission To Engine	$1.43	5
HB2	FB108106	BOLT	FB108106 BOLT Hexagonal Head, M8 x 50MM, Transmission To Engine	$10.91	2
HB3	FB110156	BOLT - HEX.HEAD IN STOCK	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM, Transmission To Engine IN STOCK	$2.68	2
HB4	LR152410	BOLT	LR152410 BOLT M10 X 60MM, Transmission To Engine	$2.63	1
HC1	LR156899	FASTENER - COVER	LR156899 FASTENER - COVER Thermal Encapsulation Covers / Heatshields, Steel	$0.70	8
HM1	RYQ500040	FASTENER IN STOCK	RYQ500040 FASTENER Thermal Encapsulation Covers / 6.25 x 1.6/6MM, Heatshield, Push Pin IN STOCK	$0.61	2
HS1	LR042472	SCREW	LR042472 SCREW Heatshields, Hexagonal Head, M6 X 16MM	$0.98	6
7A246	LR152227	TUBE - TRANSMISSION VENTILATION	LR152227 TUBE - TRANSMISSION VENTILATION	$63.84	1
7A434A	LR154211	SHIELD - TRANSMISSION	LR154211 SHIELD - TRANSMISSION RH	$18.86	1
7A434B	LR154208	SHIELD - TRANSMISSION	LR154208 SHIELD - TRANSMISSION LH	$18.86	1
7N171A	LR152237	GROMMET - CONVERTER ACCESS	LR152237 GROMMET - CONVERTER ACCESS Flexplate	$18.04	1
7N171B	LR152238	GROMMET - CONVERTER ACCESS	LR152238 GROMMET - CONVERTER ACCESS Converter Drain Access	$15.74	1
7000	LR156737	AUTOMATIC TRANSMISSION	LR156737 AUTOMATIC TRANSMISSION Includes Converter	$13,832.25	1

Auto Trans Assy & Speedometer Drive (4.4 V8 Turbo Petrol (Nc10), 8 Speed Auto Trans Zf 8Hp76)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6] - Auto Trans Assy & Speedometer Drive (4.4 V8 Turbo Petrol (NC10), 8 Speed Auto Trans ZF 8HP76)
