Name: Cylinder Head Cover (3.0L AJ20D6 Diesel High)
Rating: 4.5 (1 reviews)

View All

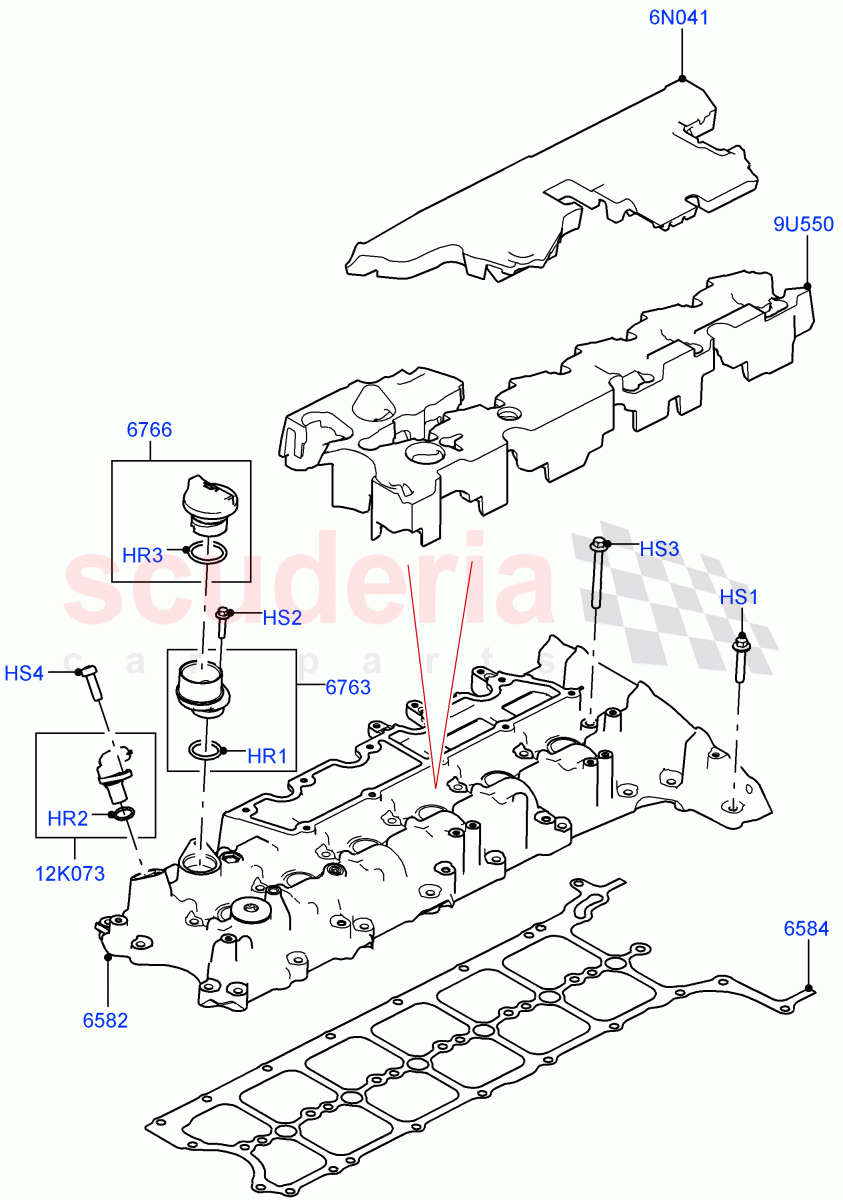

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR133542	RING - SEALING	$4.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095781	O-RING	$9.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	$5.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125323	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125322	COVER - CYLINDER HEAD	$591.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125592	GASKET - CAMSHAFT COVER	$46.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121749	PIPE - OIL INLET	$255.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125595	CAP - OIL FILLER	$43.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125600	INSULATOR - INTAKE MANIFOLD	$147.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163151	COVER - INSULATOR	$74.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074065	SENSOR - CAMSHAFT POSITION	$205.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR133542	RING - SEALING IN STOCK	LR133542 RING - SEALING FILLER, IN STOCK	$4.68	1
HR2	LR095781	O-RING IN STOCK	LR095781 O-RING 17.0MM, Camshaft Position Sensor IN STOCK	$9.81	1
HR3	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$5.09	1
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM	$2.52	19
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	$1.35	1
HS3	LR125323	SCREW	LR125323 SCREW M8 x 70MM	$1.97	7
HS4	LR073720	SCREW	LR073720 SCREW Camshaft Position Sensor, M6 X 20MM	$1.59	1
6N041	LR125600	INSULATOR - INTAKE MANIFOLD	LR125600 INSULATOR - INTAKE MANIFOLD Upper	$147.69	1
9U550	LR163151	COVER - INSULATOR	LR163151 COVER - INSULATOR Lower	$74.80	1
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor	$205.30	1
6582	LR125322	COVER - CYLINDER HEAD	LR125322 COVER - CYLINDER HEAD	$591.16	1
6584	LR125592	GASKET - CAMSHAFT COVER	LR125592 GASKET - CAMSHAFT COVER Camshaft Cover	$46.17	1
6763	LR121749	PIPE - OIL INLET	LR121749 PIPE - OIL INLET	$255.56	1
6766	LR125595	CAP - OIL FILLER	LR125595 CAP - OIL FILLER	$43.21	1

Cylinder Head Cover (3.0L Aj20D6 Diesel High)

Land Rover Range Rover (2022+) [3.0 I6 Turbo Diesel AJ20D6]
