Front Brake Pipes (Lhd) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Front Brake Pipes (LHD) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SGK000110 CLIP $3.96 To Order
Photo Part No Description Price (each) Stock
SGK100670L CLIP - RETAINING $6.46 To Order
Photo Part No Description Price (each) Stock
LR011843 CLIP - SPECIAL $1.69 To Order
Photo Part No Description Price (each) Stock
SGK100570 CLIP $4.03 To Order
Photo Part No Description Price (each) Stock
SGK500071 CLIP - BRAKE PIPE $6.28 To Order
Photo Part No Description Price (each) Stock
LR011842 CLIP - SPECIAL $3.35 To Order
Photo Part No Description Price (each) Stock
ADU8846L CLIP - BRAKE PIPE $1.67 To Order
Photo Part No Description Price (each) Stock
LR011716 TUBE - BRAKE $87.30 To Order
Photo Part No Description Price (each) Stock
LR012825 GROMMET $8.57 To Order
Photo Part No Description Price (each) Stock
LR016901 TUBE $68.65 To Order
Photo Part No Description Price (each) Stock
SHB500124 TUBE $52.74 To Order
LR016956 TUBE $51.38 To Order
LR044353 TUBE - BRAKE $78.70 To Order
...and 1 more part variants. See table on right for more details.
View All

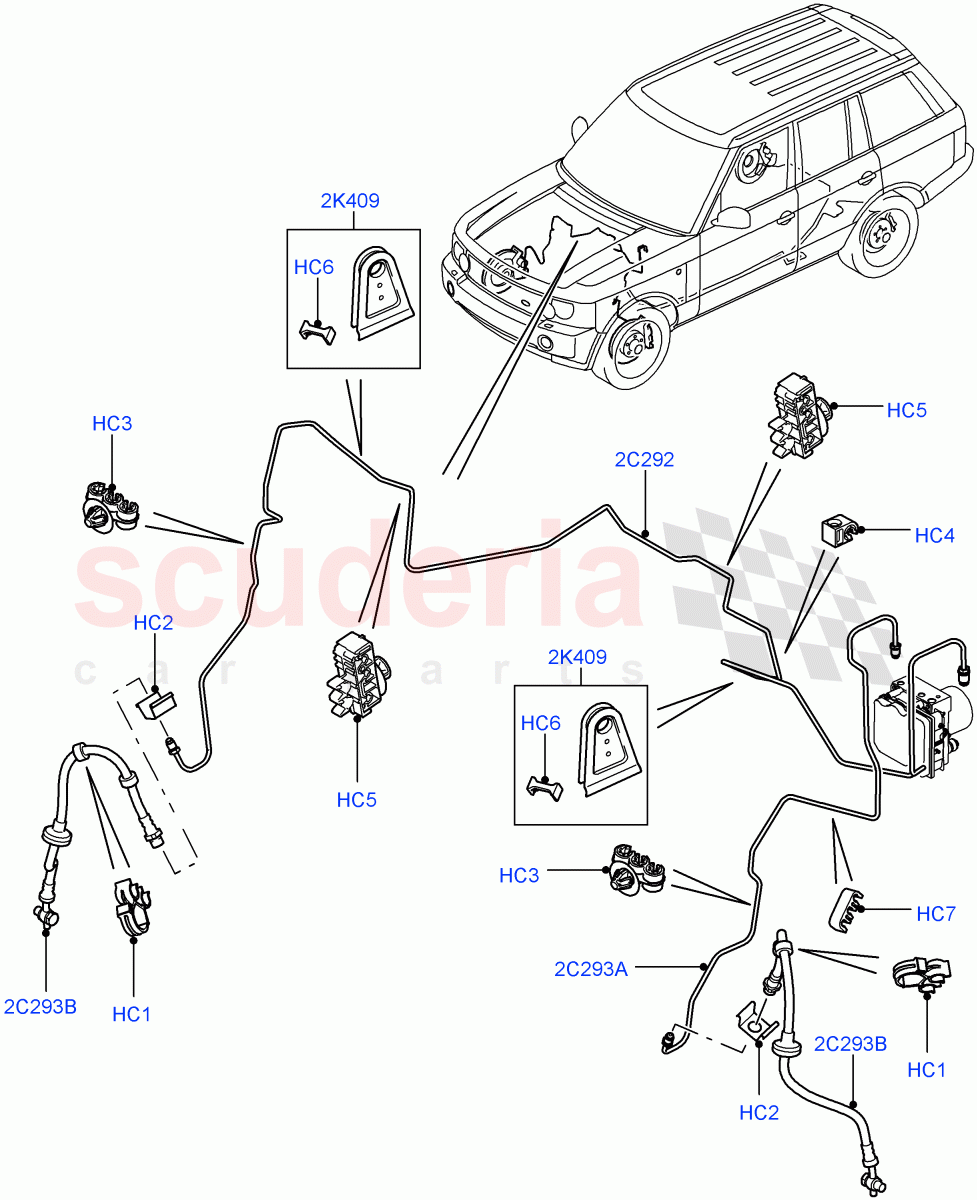

Front Brake Pipes (LHD) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 SGK000110
CLIP
Brake Hose, Triple / From: AA000001 		$3.96 -
HC2 SGK100670L
CLIP - RETAINING
Single / From: AA000001 		$6.46 2
HC3 LR011843
CLIP - SPECIAL
3 way / From: AA000001 		$1.69 1
HC4 SGK100570
CLIP
Single / From: AA000001 		$4.03 2
HC5 SGK500071
CLIP - BRAKE PIPE
Double / From: AA000001 		$6.28 2
HC6 LR011842
CLIP - SPECIAL
Locking / From: AA000001 		$3.35 2
HC7 ADU8846L
CLIP - BRAKE PIPE
3 way / From: AA000001 		$1.67 2
2C292 LR011716
TUBE - BRAKE
RH, ABS Modulator To Caliper Hose / From: AA000001 		$87.30 1
2C293A LR016901
TUBE
LH, ABS Modulator To Caliper Hose / From: AA000001 		$68.65 1
2C293B SHB500124
TUBE
RH/LH, To Caliper / From: AA000001 / To: BA335374 		$52.74 2
2C293B LR016956
TUBE
RH/LH, To Caliper / From: BA335375 / To: CA387188 		$51.38 2
2C293B LR044353
TUBE - BRAKE
RH/LH, To Caliper / From: CA387189 / To: CA392666 		$78.70 2
2C293B LR048085
TUBE - BRAKE
RH/LH, To Caliper / From: CA392667 / To: CA492666 		$80.65 2
2K409 LR012825
GROMMET
From: AA000001 		$8.57 2
