Name: Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001)

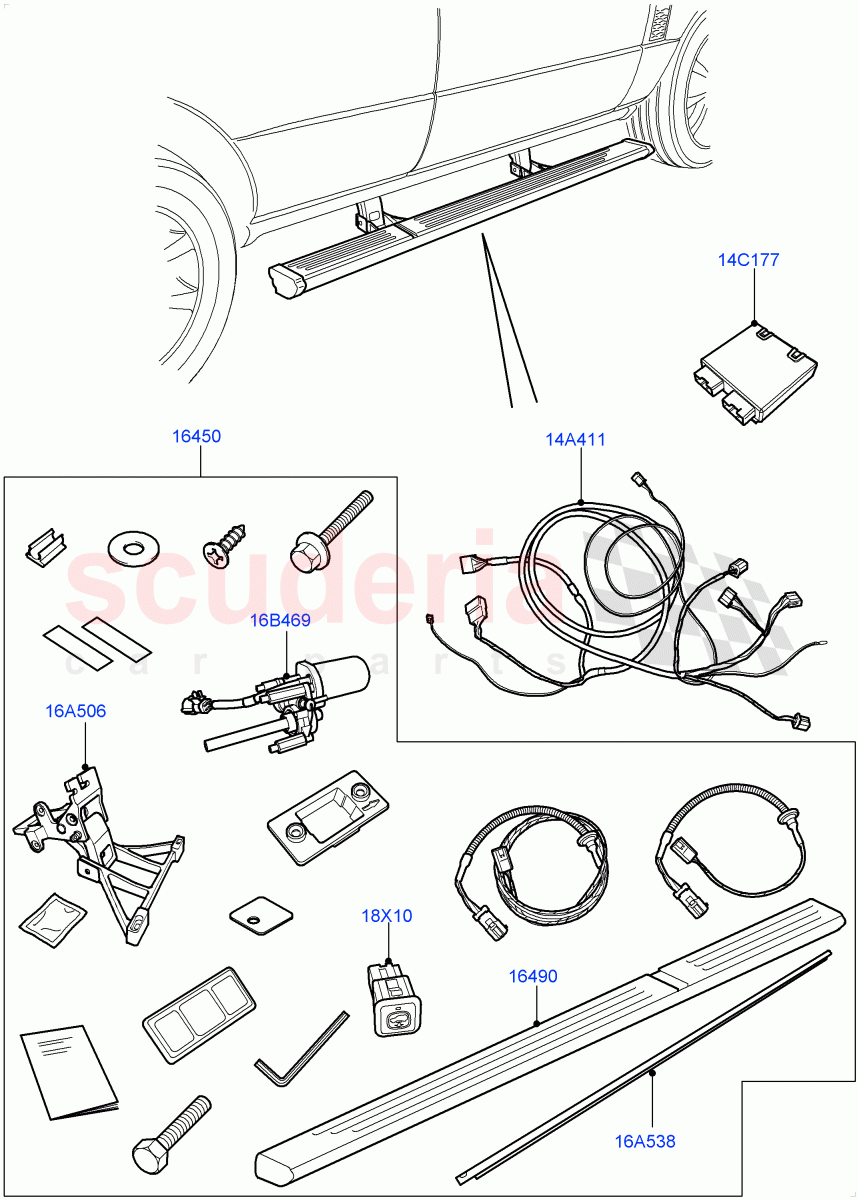

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	VPLMP0041	KIT - SIDE STEPS	$1,443.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004814	MAT	$284.56	To Order
	LR004813	MAT	$284.56	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMP0001	MICROSWITCH	$24.66	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMV0080	HARNESS - SIDE STEP	$69.51	To Order
	VPLMV0080	HARNESS - SIDE STEP	$69.51	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLMP0097	MODULE - SIDE STEP CONTROL	$83.56	To Order
	VPLMP0097	MODULE - SIDE STEP CONTROL	$83.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004810	BRACKET	$287.39	To Order
	LR004809	BRACKET	$287.39	To Order
	LR004812	BRACKET	$274.94	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004816	BAR - ROLL	$30.04	To Order
	LR004815	BAR - ROLL	$49.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004808	MOTOR	$453.20	To Order
	LR004807	MOTOR	$453.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
14A411	VPLMV0080	HARNESS - SIDE STEP	VPLMV0080 HARNESS - SIDE STEP Wiring Harness / From: AA000001 / To: BA999999	$69.51	1
14A411	VPLMV0080	HARNESS - SIDE STEP	VPLMV0080 HARNESS - SIDE STEP Wiring Harness / From: CA000001	$69.51	1
14C177	VPLMP0097	MODULE - SIDE STEP CONTROL	VPLMP0097 MODULE - SIDE STEP CONTROL Power Deployable / From: AA000001 / To: AA999999	$83.56	1
14C177	VPLMP0097	MODULE - SIDE STEP CONTROL	VPLMP0097 MODULE - SIDE STEP CONTROL Power Deployable / From: BA000001	$83.56	1
16A506	LR004810	BRACKET	LR004810 BRACKET RH, Front, Power Deployable / From: AA000001	$287.39	1
16A506	LR004809	BRACKET	LR004809 BRACKET LH, Front, Power Deployable / From: AA000001	$287.39	1
16A506	LR004812	BRACKET	LR004812 BRACKET RH, Power Deployable, Rear / From: AA000001	$274.94	1
16A506	LR004811	BRACKET	LR004811 BRACKET LH, Power Deployable, Rear / From: AA000001	$274.94	1
16A538	LR004816	BAR - ROLL	LR004816 BAR - ROLL RH, Power Deployable / From: AA000001	$30.04	1
16A538	LR004815	BAR - ROLL	LR004815 BAR - ROLL LH, Power Deployable / From: AA000001	$49.96	1
16B469	LR004808	MOTOR	LR004808 MOTOR RH, Power Deployable / From: AA000001	$453.20	1
16B469	LR004807	MOTOR	LR004807 MOTOR LH, Power Deployable / From: AA000001	$453.20	1
18X10	VPLMP0001	MICROSWITCH	VPLMP0001 MICROSWITCH From: AA000001	$24.66	1
16450	VPLMP0041	KIT - SIDE STEPS	VPLMP0041 KIT - SIDE STEPS For Bodykit Vehicles Please Order Sill Moulding LR018383 And LR018384, Less Harness, Power Deployable / From: AA000001	$1,443.33	1
16490	LR004814	MAT	LR004814 MAT RH, Power Deployable / From: AA000001	$284.56	1
16490	LR004813	MAT	LR004813 MAT LH, Power Deployable / From: AA000001	$284.56	1

Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Lower Body Guards And Shields (Accessory) (With Power Deployable Running Board) ((V) FROMAA000001)
