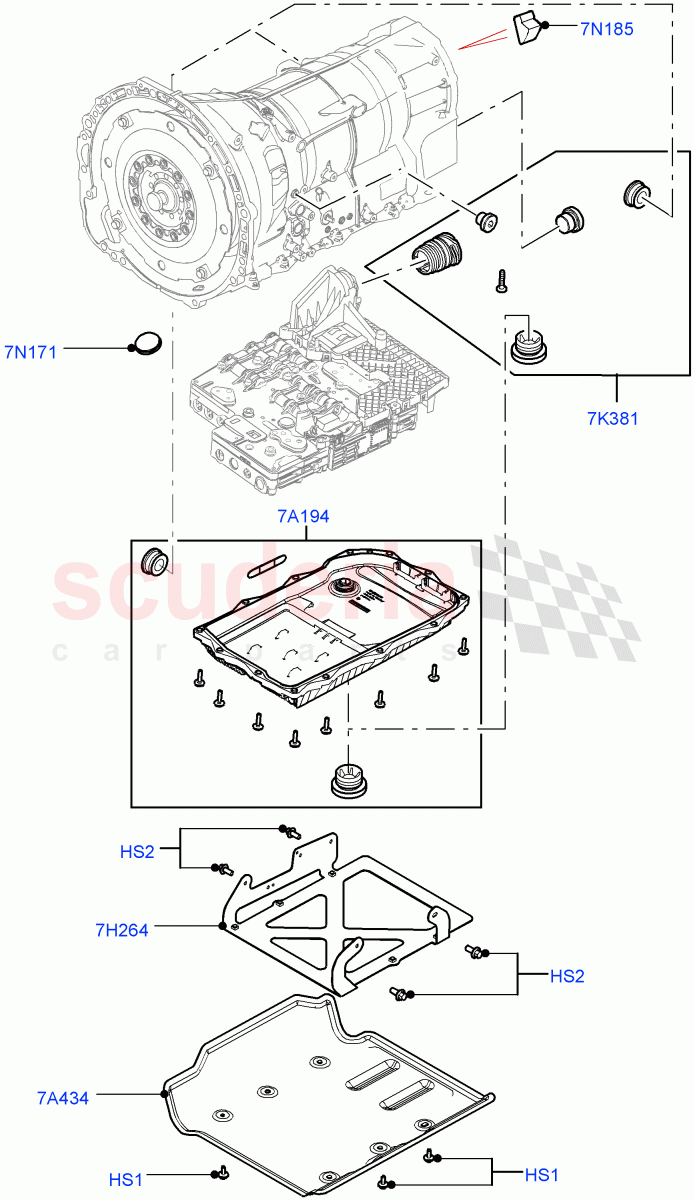

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SDG500020	SCREW	$8.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	KYP500260	SCREW	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR023294	PAN - TRANSMISSION OIL	$270.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022939	SHIELD - TRANSMISSION	$30.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073535	BRACKET - TRANSMISSION HEAT SHIELD	$178.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023292	PLUG - TRANSMISSION	$50.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008866	GROMMET	$8.59	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	SDG500020	SCREW IN STOCK	SDG500020 SCREW M6 x 12MM / From: BA000001 IN STOCK	$8.74	6
HS2	KYP500260	SCREW IN STOCK	KYP500260 SCREW M6 X 14MM / From: BA000001 IN STOCK	$0.77	4
7A194	LR023294	PAN - TRANSMISSION OIL	LR023294 PAN - TRANSMISSION OIL Includes Oil Filter / From: BA000001	$270.34	1
7A434	LR022939	SHIELD - TRANSMISSION	LR022939 SHIELD - TRANSMISSION Transmission / From: BA000001	$30.16	1
7H264	LR073535	BRACKET - TRANSMISSION HEAT SHIELD	LR073535 BRACKET - TRANSMISSION HEAT SHIELD Heat Shield / From: BA000001	$178.55	1
7K381	LR023292	PLUG - TRANSMISSION	LR023292 PLUG - TRANSMISSION Transmission / From: BA000001	$50.10	1
7N171	LR008866	GROMMET IN STOCK	LR008866 GROMMET Converter Drain Access / From: BA000001 IN STOCK	$8.59	1
