Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Transmission External Components (5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYX500010 O-RING $1.33 IN STOCK
Photo Part No Description Price (each) Stock
TYP500070 SCREW $2.43 To Order
Photo Part No Description Price (each) Stock
TYP500050 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
KYP500260 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
SDG500020 SCREW $8.73 IN STOCK
Photo Part No Description Price (each) Stock
TYF500030 WASHER $1.83 IN STOCK
Photo Part No Description Price (each) Stock
TZB500020 SEAL $5.52 To Order
Photo Part No Description Price (each) Stock
TYT500010 PIN - FASTENING $1.15 To Order
Photo Part No Description Price (each) Stock
TGK500010 GASKET $30.72 To Order
Photo Part No Description Price (each) Stock
LR007474 PAN - TRANSMISSION OIL $275.24 To Order
Photo Part No Description Price (each) Stock
TZB500030 SEAL $13.43 To Order
Photo Part No Description Price (each) Stock
TZB500010 SEAL $11.19 To Order
Photo Part No Description Price (each) Stock
KRO500420 HEAT SHIELD $101.10 To Order
LR018355 HEAT SHIELD $106.55 To Order
Photo Part No Description Price (each) Stock
TGU500050 BRACKET - OIL HOSES $53.02 To Order
Photo Part No Description Price (each) Stock
LR008866 GROMMET $8.59 IN STOCK
Photo Part No Description Price (each) Stock
LR007608 PLUG - OIL DRAIN $7.79 To Order
Photo Part No Description Price (each) Stock
LR007610 PLUG - OIL FILLER $12.40 To Order
Photo Part No Description Price (each) Stock
LR007607 PLUG - OIL DRAIN $9.49 To Order
Photo Part No Description Price (each) Stock
TYB500020 PLUG - OIL DRAIN $8.68 To Order
View All

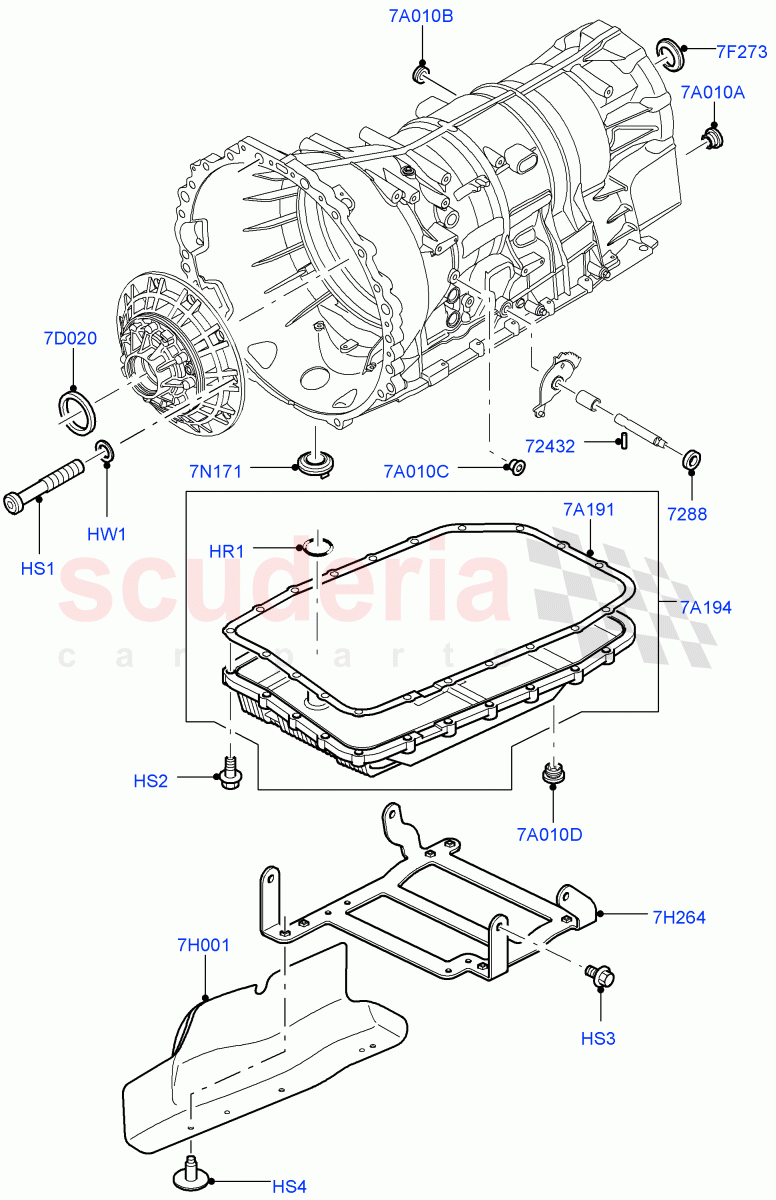

Transmission External Components (5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI NA V8 Petrol - AJ133, 3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 TYX500010
O-RING
5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pump / From: AA000001
IN STOCK 		$1.33 1
HS1 TYP500070
SCREW
Housing, Oil Pump, M6 x 50MM, To Transmission / From: AA000001 		$2.43 13
HS2 TYP500050
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / M6 X 31.5MM, Oil Pan, To Transmission, Torx / From: AA000001 		$1.24 21
HS3 KYP500260
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / Bracket, HEX Flange, M6 X 14MM, To Transmission / From: AA000001
IN STOCK 		$0.77 4
HS4 SDG500020
SCREW
5.0L OHC SGDI NA V8 Petrol - AJ133 / Heat Shield, M6 x 12MM, To Transmission / From: AA000001
IN STOCK 		$8.73 3
HW1 TYF500030
WASHER
M6 / From: AA000001
IN STOCK 		$1.83 -
7A010A LR007608
PLUG - OIL DRAIN
5.0L OHC SGDI NA V8 Petrol - AJ133 / M12 X 1.5MM, Park, Pawl, Rear / From: AA000001 		$7.79 1
7A010B LR007610
PLUG - OIL FILLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / FILLER, M18 X 1.5MM, Warning Oil Level Check / From: AA000001 		$12.40 1
7A010C LR007607
PLUG - OIL DRAIN
5.0L OHC SGDI NA V8 Petrol - AJ133 / M10 x 1.0, Screw / From: AA000001 		$9.49 1
7A010D TYB500020
PLUG - OIL DRAIN
5.0L OHC SGDI NA V8 Petrol - AJ133 / Drain / From: AA000001 		$8.68 1
7A191 TGK500010
GASKET
5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001 		$30.72 1
7A194 LR007474
PAN - TRANSMISSION OIL
5.0L OHC SGDI NA V8 Petrol - AJ133 / Includes Oil Filter / From: AA000001 		$275.24 1
7D020 TZB500030
SEAL
5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pump / From: AA000001 		$13.43 1
7F273 TZB500010
SEAL
5.0L OHC SGDI NA V8 Petrol - AJ133 / Output Shaft, Rear / From: AA000001 		$11.19 1
7H001 KRO500420
HEAT SHIELD
5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001 / To: AA307576 		$101.10 1
7H001 LR018355
HEAT SHIELD
5.0L OHC SGDI SC V8 Petrol - AJ133 / Oil Pan / From: AA307577 		$106.55 1
7H264 TGU500050
BRACKET - OIL HOSES
5.0L OHC SGDI NA V8 Petrol - AJ133 / Oil Pan / From: AA000001 		$53.02 1
7N171 LR008866
GROMMET
5.0L OHC SGDI SC V8 Petrol - AJ133 / Converter Drain Access / From: AA000001
IN STOCK 		$8.59 1
7288 TZB500020
SEAL
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Transmission / From: AA000001 		$5.52 1
72432 TYT500010
PIN - FASTENING
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001 		$1.15 1
