Name: Timing Gear (Auxiliary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001)
Rating: 4.4 (1 reviews)

Timing Gear (Auxiliary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Timing Gear (Auxiliary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L...

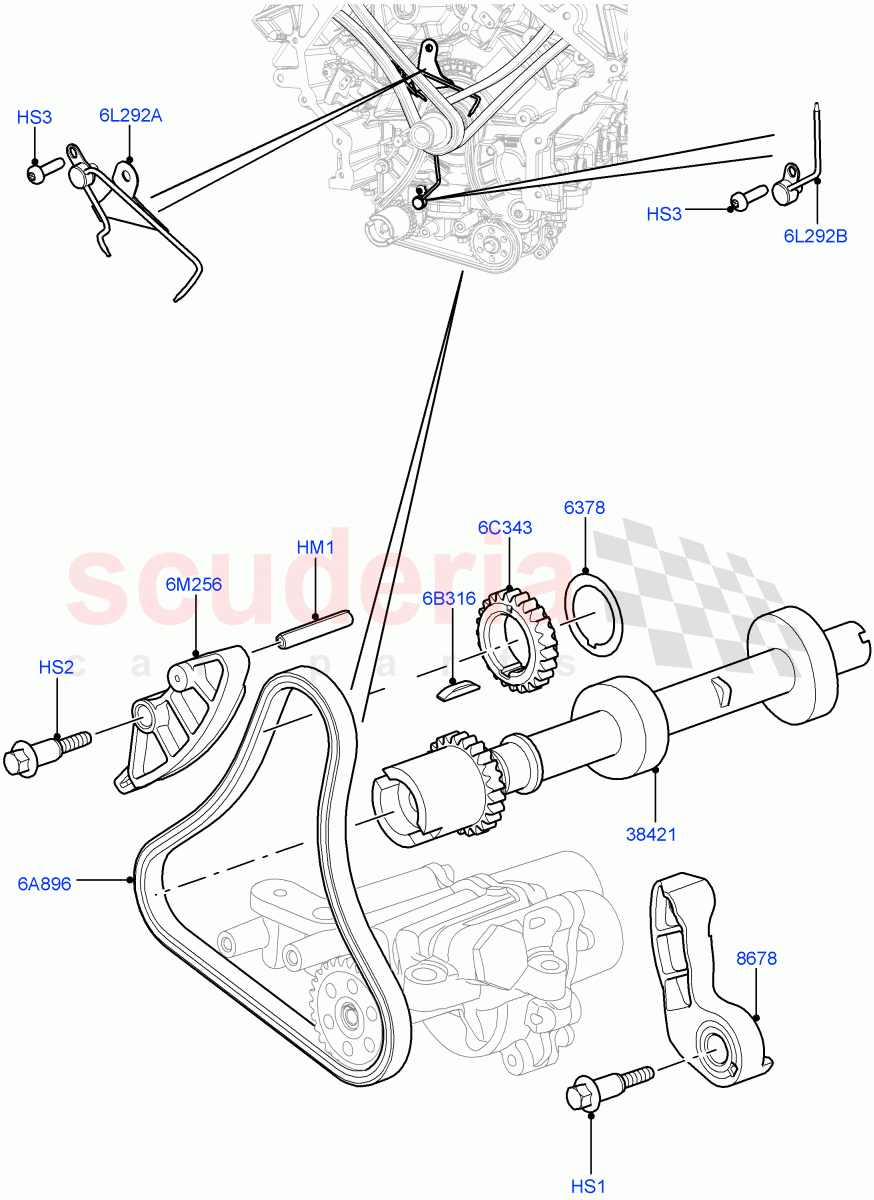

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011063	PIN	$1.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW M6 X 38	$2.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	$27.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087162	TENSIONER - DRIVE CHAIN	$40.68	IN STOCK
	LR087162	TENSIONER - DRIVE CHAIN	$40.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037021	SHAFT - FUEL PUMP DRIVE	$631.91	To Order
	LR067417	SHAFT - FUEL PUMP DRIVE	$289.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032087	CHAIN - AUXILIARY DRIVE	$52.42	IN STOCK
	LR032087	CHAIN - AUXILIARY DRIVE	$52.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072611	SPROCKET - CRANKSHAFT	$56.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012110	GUIDE - LOWER	$9.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032714	JET - CHAIN LUBRICATING	$51.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR059161	JET - CHAIN LUBRICATING	$18.94	IN STOCK
	LR034466	Jet	Enquire	To Order
	LR042667	JET - CHAIN LUBRICATING	$27.26	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	LR011063	PIN IN STOCK	LR011063 PIN 6 x 36MM, Pin / From: AA000001 IN STOCK	$1.21	1
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW Auxiliary Drive, M8 X 45MM, Tensioner / From: AA000001 IN STOCK	$2.89	1
HS2	LR011064	SCREW M6 X 38 IN STOCK	LR011064 SCREW M6 X 38 Auxiliary Drive, Chain Guide, M6 X 38MM / From: AA000001 IN STOCK	$2.59	1
HS3	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: AA000001	$1.24	2
6A896	LR032087	CHAIN - AUXILIARY DRIVE IN STOCK	LR032087 CHAIN - AUXILIARY DRIVE From: AA000001 / To: CA374367 IN STOCK	$52.42	1
6A896	LR032087	CHAIN - AUXILIARY DRIVE IN STOCK	LR032087 CHAIN - AUXILIARY DRIVE From: CA374368 IN STOCK	$52.42	1
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: AA000001	$3.05	1
6C343	LR072611	SPROCKET - CRANKSHAFT	LR072611 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft / From: AA000001	$56.11	1
6L292A	LR032714	JET - CHAIN LUBRICATING IN STOCK	LR032714 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: AA000001 IN STOCK	$51.79	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: AA000001 / To: CA374367 IN STOCK	$18.94	1
6L292B	LR034466	Jet	LR034466 Jet Chain Lubricating, Lower / From: CA374368 / To: CA387564	-	1	Enquire
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: CA387565	$27.26	1
6M256	LR012110	GUIDE - LOWER IN STOCK	LR012110 GUIDE - LOWER Auxiliary Drive Chain / From: AA000001 IN STOCK	$9.10	1
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive / From: AA000001	$27.47	1
8678	LR087162	TENSIONER - DRIVE CHAIN IN STOCK	LR087162 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain / From: AA000001 / To: AA326588 IN STOCK	$40.68	1
8678	LR087162	TENSIONER - DRIVE CHAIN IN STOCK	LR087162 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain / From: AA326589 IN STOCK	$40.68	1
38421	LR037021	SHAFT - FUEL PUMP DRIVE	LR037021 SHAFT - FUEL PUMP DRIVE With Sprocket / From: AA000001 / To: CA393621	$631.91	1
38421	LR067417	SHAFT - FUEL PUMP DRIVE	LR067417 SHAFT - FUEL PUMP DRIVE With Sprocket / From: CA393622	$289.46	1
