Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYC000060 CLIP $1.78 To Order
Photo Part No Description Price (each) Stock
WJC000040 CLIP - BRAKE PIPE $14.01 To Order
Photo Part No Description Price (each) Stock
WZU000010 COVER $6.83 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
FS105126 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR011071 TUBE $32.72 To Order
LR019422 TUBE $33.96 To Order
Photo Part No Description Price (each) Stock
LR011072 PIPE - FUEL $27.98 To Order
LR021903 PIPE - FUEL $26.65 To Order
Photo Part No Description Price (each) Stock
LR010749 VALVE - FUEL VAPOUR $173.32 To Order
Photo Part No Description Price (each) Stock
LR012664 MANIFOLD - FUEL SUPPLY $146.13 To Order
LR012665 MANIFOLD - FUEL SUPPLY $151.27 To Order
Photo Part No Description Price (each) Stock
LR011073 TUBE - FUEL VAPOUR SEPARATOR $57.61 To Order
LR019421 TUBE - FUEL VAPOUR SEPARATOR $60.92 To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE $12.72 To Order
Photo Part No Description Price (each) Stock
LR015356 SENSOR - FUEL INJECTOR PRESSURE $110.75 To Order
Photo Part No Description Price (each) Stock
AAU3084 Retainer Enquire To Order
View All

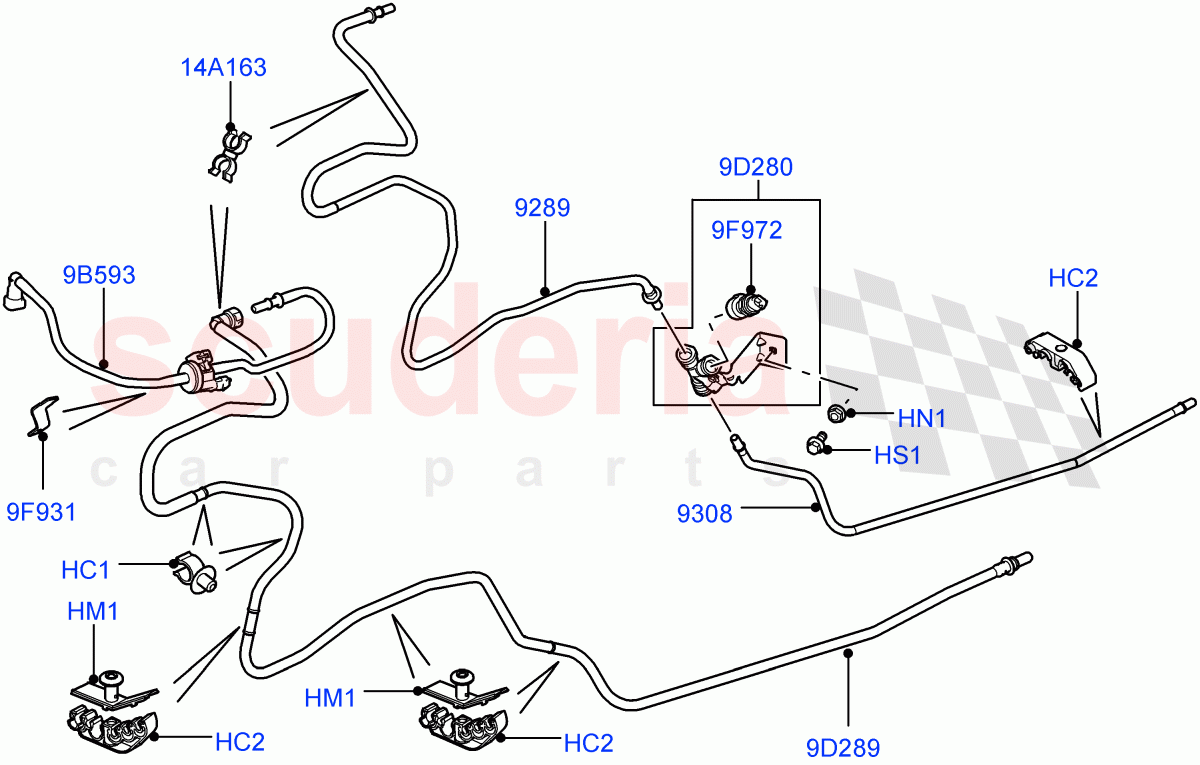

Fuel Lines (Front) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 WYC000060
CLIP
U-Shaped Clip / From: AA000001 		$1.78 1
HC2 WJC000040
CLIP - BRAKE PIPE
5 Way / From: AA000001 		$14.01 4
HM1 WZU000010
COVER
Clip, Cover 		$6.83 4
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.46 1
HS1 FS105126
SCREW
Park Heating With Remote Control / M5 X 12MM / From: AA000001 		$0.59 1
9B593 LR010749
VALVE - FUEL VAPOUR
To Engine, Vapour Line / From: AA000001 		$173.32 1
9D280 LR012664
MANIFOLD - FUEL SUPPLY
Park Heating With Remote Control, RHD / With Sensor / From: AA000001 		$146.13 1
9D280 LR012665
MANIFOLD - FUEL SUPPLY
LHD, Park Heating With Remote Control / With Sensor / From: AA000001 		$151.27 1
9D289 LR011073
TUBE - FUEL VAPOUR SEPARATOR
From Under Floor Pipes To Vapour Valve, Vapour Line / From: AA000001 / To: AA311349 		$57.61 1
9D289 LR019421
TUBE - FUEL VAPOUR SEPARATOR
From Under Floor Pipes To Vapour Valve, Vapour Line / From: AA311350 		$60.92 1
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE
Fuel Vapour Valve / From: AA000001 		$12.72 1
9F972 LR015356
SENSOR - FUEL INJECTOR PRESSURE
From: AA000001 		$110.75 1
14A163 AAU3084
Retainer
Clip, Double / From: AA000001 		- 3 Enquire
9289 LR011071
TUBE
Feed, From Pressure Sensor To Engine / From: AA000001 / To: AA311349 		$32.72 1
9289 LR019422
TUBE
Feed, From Pressure Sensor To Engine / From: AA311350 		$33.96 1
9308 LR011072
PIPE - FUEL
Feed, From Under Floor Pipes To Pressure Sensor / From: AA000001 / To: AA319783 		$27.98 1
9308 LR021903
PIPE - FUEL
Feed, From Under Floor Pipes To Pressure Sensor / From: AA319784 		$26.65 1
