Pulleys And Drive Belts (Primary Drive) (5.0L Ohc Sgdi Sc V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] - Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4567977 BOLT $3.92 IN STOCK
Photo Part No Description Price (each) Stock
LR011972 PULLEY - CRANKSHAFT $563.96 To Order
Photo Part No Description Price (each) Stock
LR190101 BELT - ACCESSORY DRIVE $61.42 To Order
LR064185 BELT - ACCESSORY DRIVE $68.25 To Order
Photo Part No Description Price (each) Stock
LR011952 BOLT M18 X110 $23.60 IN STOCK
Photo Part No Description Price (each) Stock
LR010756 TENSIONER $74.20 To Order
Photo Part No Description Price (each) Stock
LR010689 IDLER $79.01 To Order
LR106769 IDLER $51.43 IN STOCK
Photo Part No Description Price (each) Stock
LR029159 BRACKET - IDLER PULLEY $28.14 To Order
LR012980 BRACKET - IDLER PULLEY $27.30 To Order
LR077670 BRACKET - IDLER PULLEY $50.86 To Order
Photo Part No Description Price (each) Stock
LR099573 BRACKET - IDLER PULLEY $116.58 To Order
LR099573 BRACKET - IDLER PULLEY $116.58 To Order
Photo Part No Description Price (each) Stock
PYU500020 PIN - LOCATING $3.19 To Order
View All

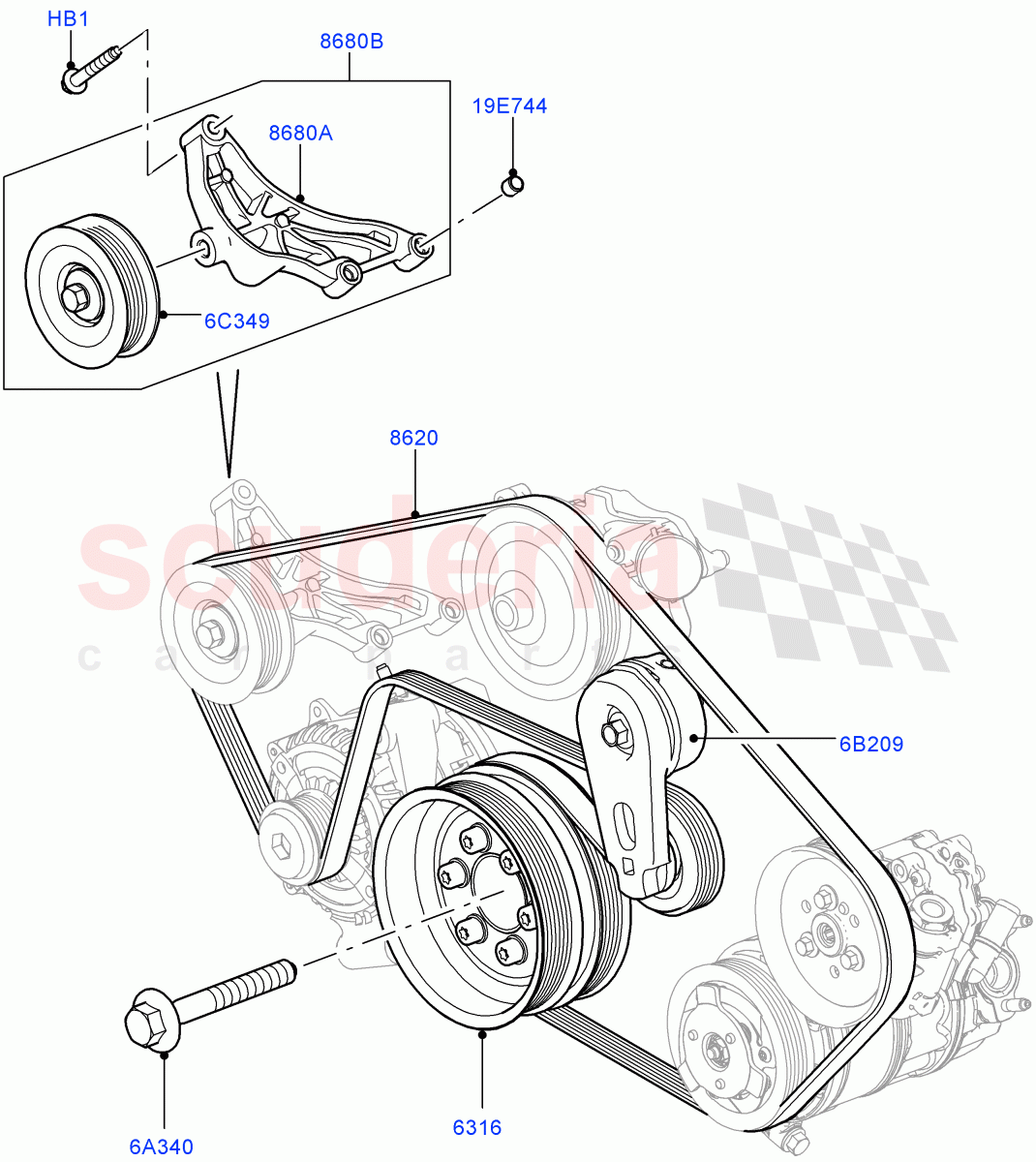

Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4567977
BOLT
Bracket, M8 X 50 / From: AA000001
IN STOCK 		$3.92 3
6A340 LR011952
BOLT M18 X110
M16 X 118MM, Pulley - Crankshaft / From: AA000001
IN STOCK 		$23.60 1
6B209 LR010756
TENSIONER
Includes Bolt, Primary Drive / From: AA000001 		$74.20 1
6C349 LR010689
IDLER
90MM, Drive Belt / From: AA000001 / To: CA391823 		$79.01 1
6C349 LR106769
IDLER
90MM, Drive Belt / From: CA391824
IN STOCK 		$51.43 1
19E744 PYU500020
PIN - LOCATING 		$3.19 2
6316 LR011972
PULLEY - CRANKSHAFT
From: AA000001 		$563.96 1
8620 LR190101
BELT - ACCESSORY DRIVE
Primary Drive / From: AA000001 / To: CA393621 		$61.42 1
8620 LR064185
BELT - ACCESSORY DRIVE
Primary Drive / From: CA393622 		$68.25 1
8680A LR029159
BRACKET - IDLER PULLEY
From: BA339391 / To: BA999999 		$28.14 1
8680A LR012980
BRACKET - IDLER PULLEY
From: AA000001 / To: BA339390 		$27.30 1
8680A LR077670
BRACKET - IDLER PULLEY
From: CA000001 		$50.86 1
8680B LR099573
BRACKET - IDLER PULLEY
With Idler / From: AA000001 / To: BA999999 		$116.58 1
8680B LR099573
BRACKET - IDLER PULLEY
With Idler / From: CA000001 		$116.58 1
