Name: Rear Brake Discs And Calipers (3.6L V8 32V DOHC EFi Diesel Lion, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TOBA333985)
Rating: 4.6 (1 reviews)

Rear Brake Discs And Calipers (3.6L V8 32V DOHC EFi Diesel Lion, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001, (V) TOBA333985) of Land Rover Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol] - Rear Brake Discs And Calipers (3.6L V8 32V DOHC EFi Diesel Lion, 5.0L OHC SGDI NA V8 Petrol -...

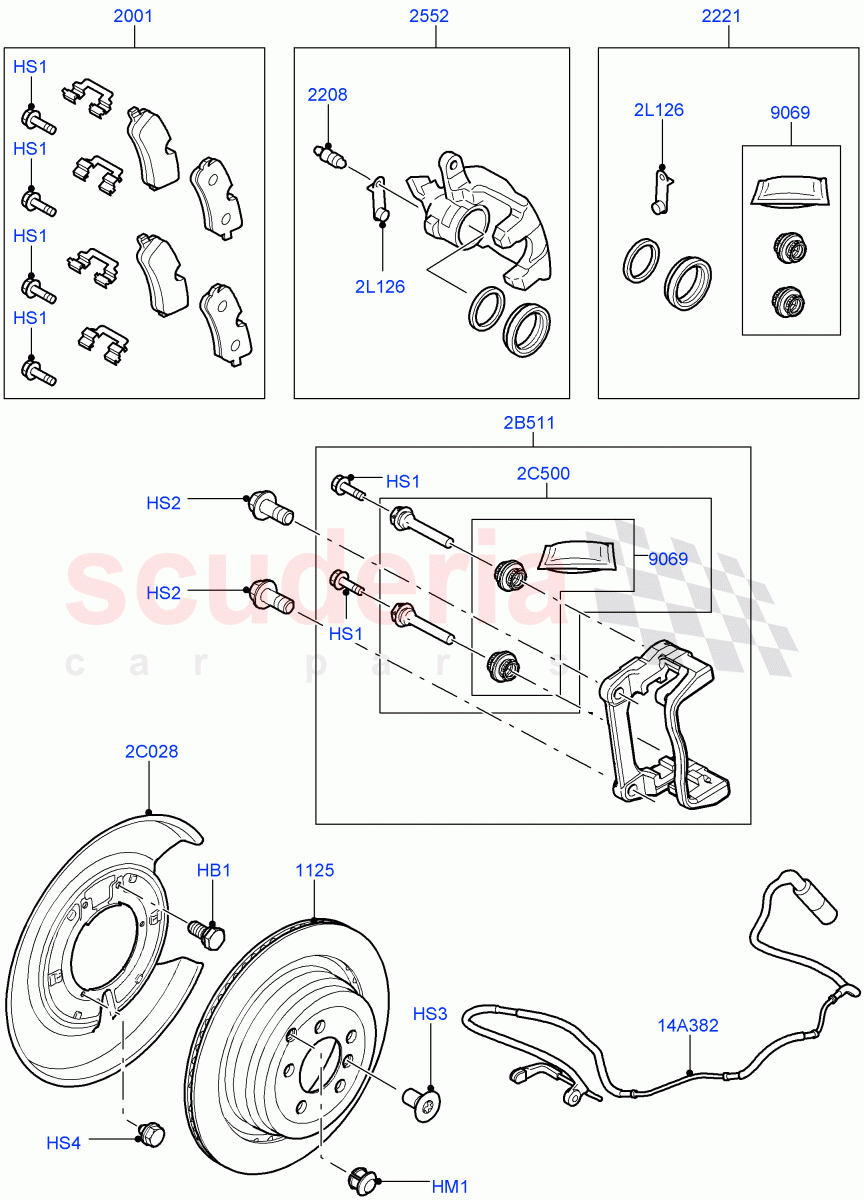

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP000181	SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	SOD000010	GROMMET	$2.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015546	BOLT	$3.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012823	SCREW	$3.63	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG100000L	SCREW	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP000171	SCREW	$4.81	To Order
	LR018509	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR017804	DISC - BRAKE - VENTED	$104.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015519	BRAKE PADS - WITH SPRINGS	$143.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015520	KIT - CALIPER SEAL	$28.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015586	CALIPER - BRAKE	$361.22	To Order
	LR015524	CALIPER - BRAKE	$361.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	$24.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015572	BRACKET	$171.37	To Order
	LR015567	BRACKET	$170.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011715	SHIELD - BRAKE DISC SPLASH	$68.39	To Order
	LR011714	SHIELD - BRAKE DISC SPLASH	$68.39	To Order
	LR019452	SHIELD - BRAKE DISC SPLASH	$199.28	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017032	KIT - LOCATING PIN BOLTS	$22.82	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	$1.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SOE500030	WIRE - BRAKE PAD WEAR WARNING	$39.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	SYP000181	SCREW	SYP000181 SCREW M8 x 15MM, Shield / From: AA000001	$1.04	4
HM1	SOD000010	GROMMET IN STOCK	SOD000010 GROMMET Plug / From: AA000001 IN STOCK	$2.85	2
HS1	LR015546	BOLT	LR015546 BOLT Pin - Slide / From: AA000001	$3.31	4
HS2	LR012823	SCREW	LR012823 SCREW M12 X 1.5 X 29.5MM, To Caliper / From: AA000001	$3.63	4
HS3	SDG100000L	SCREW	SDG100000L SCREW Disc - Brake, M8 X 14 / From: AA000001	$1.67	2
HS4	SYP000171	SCREW	SYP000171 SCREW M6 X 10MM, Shield / From: AA000001 / To: BA336892	$4.81	6
HS4	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Shield, Torx / From: BA336893 IN STOCK	$1.24	6
2B511	LR015572	BRACKET	LR015572 BRACKET LH / From: AA000001	$171.37	1
2B511	LR015567	BRACKET	LR015567 BRACKET RH / From: AA000001	$170.27	1
2C028	LR011715	SHIELD - BRAKE DISC SPLASH	LR011715 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA000001 / To: AA314627	$68.39	1
2C028	LR011714	SHIELD - BRAKE DISC SPLASH	LR011714 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA000001 / To: AA314627	$68.39	1
2C028	LR019452	SHIELD - BRAKE DISC SPLASH	LR019452 SHIELD - BRAKE DISC SPLASH LH, Shield / From: AA314628	$199.28	1
2C028	LR019451	SHIELD - BRAKE DISC SPLASH	LR019451 SHIELD - BRAKE DISC SPLASH RH, Shield / From: AA314628	$199.28	1
2C500	LR017032	KIT - LOCATING PIN BOLTS	LR017032 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: AA000001	$22.82	2
2L126	SEE500100	CAP - BLEED SCREW IN STOCK	SEE500100 CAP - BLEED SCREW From: AA000001 IN STOCK	$1.95	2
14A382	SOE500030	WIRE - BRAKE PAD WEAR WARNING	SOE500030 WIRE - BRAKE PAD WEAR WARNING From: AA000001	$39.64	1
1125	LR017804	DISC - BRAKE - VENTED	LR017804 DISC - BRAKE - VENTED From: AA000001	$104.80	2
2001	LR015519	BRAKE PADS - WITH SPRINGS	LR015519 BRAKE PADS - WITH SPRINGS Axle Set / From: AA000001	$143.21	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: AA000001 IN STOCK	$6.76	2
2221	LR015520	KIT - CALIPER SEAL	LR015520 KIT - CALIPER SEAL Caliper Set, To Caliper / From: AA000001	$28.39	2
2552	LR015586	CALIPER - BRAKE	LR015586 CALIPER - BRAKE LH / From: AA000001	$361.22	1
2552	LR015524	CALIPER - BRAKE	LR015524 CALIPER - BRAKE RH / From: AA000001	$361.22	1
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot, Caliper Set / From: AA000001	$24.78	2
