Name: Roof - Sheet Metal (Less Armoured) ((V) FROMAA000001)
Rating: 4.3 (1 reviews)

View All

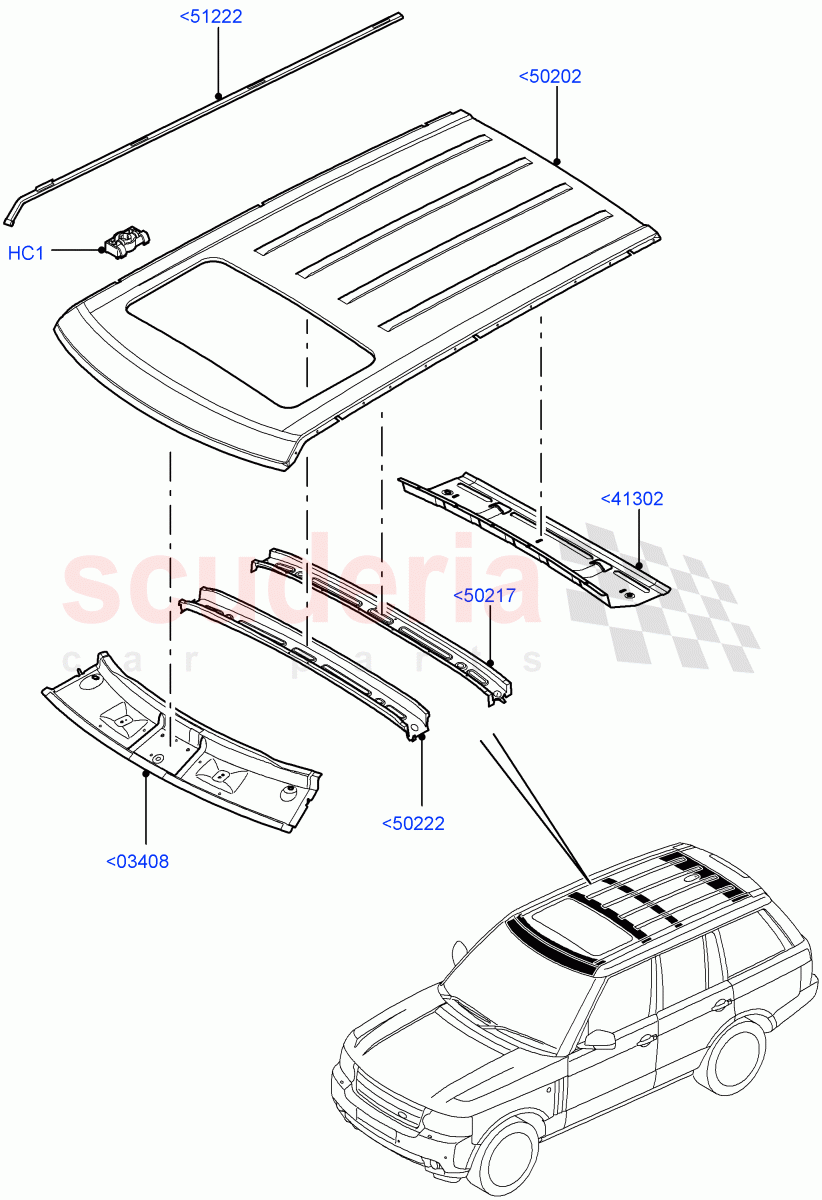

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR016911	PANEL - ROOF	$62.65	To Order

Photo	Part No	Description	Price (each)	Stock
	AKC760030	REINFORCEMENT - ROOF RAIL	$130.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014476	REINFORCEMENT - ROOF PANEL	$112.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014475	REINFORCEMENT	$244.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<03408	LR016911	PANEL - ROOF	LR016911 PANEL - ROOF From: AA000001	$62.65	1
<41302	AKC760030	REINFORCEMENT - ROOF RAIL	AKC760030 REINFORCEMENT - ROOF RAIL From: AA000001	$130.06	1
<50202	LR014243	PANEL - ROOF	LR014243 PANEL - ROOF Less Sun Roof / From: AA000001	$2,644.82	1
<50202	LR014244	PANEL - ROOF	LR014244 PANEL - ROOF Power Tilt/Slide Sun Roof / From: AA000001	$2,253.32	1
<50217	LR014476	REINFORCEMENT - ROOF PANEL	LR014476 REINFORCEMENT - ROOF PANEL Centre / From: AA000001	$112.62	1
<50222	LR014475	REINFORCEMENT	LR014475 REINFORCEMENT Front / From: AA000001	$244.11	1
<51222	DBC000022LML	WEATHERSTRIP - ROOF PANEL	DBC000022LML WEATHERSTRIP - ROOF PANEL RH, Primed / From: AA000001	$168.20	1
<51222	DBC000032LML	WEATHERSTRIP - ROOF PANEL	DBC000032LML WEATHERSTRIP - ROOF PANEL LH, Primed / From: AA000001	$168.20	1
HC1	DBE000011	CLIP	DBE000011 CLIP Black, Weatherstrip / From: AA000001	$6.11	10
HC1	LR014488	CLIP	LR014488 CLIP Weatherstrip, White / From: AA000001	$5.43	1

Roof - Sheet Metal (Less Armoured) ((V) Fromaa000001)

Land Rover Range Rover (2010-2012) [5.0 OHC SGDI NA V8 Petrol]
